Trotec PJSS 13-230V Operating Instructions Manual

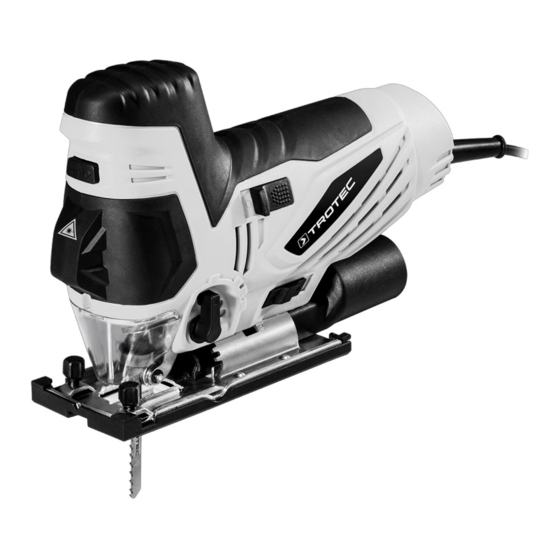

850w pendulum action jigsaw
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PJSS 13-230V
EN
ORIGINAL INSTRUCTIONS
850W PENDULUM ACTION
JIGSAW

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PJSS 13-230V and is the answer not in the manual?

Questions and answers

Related Manuals for Trotec PJSS 13-230V

Summary of Contents for Trotec PJSS 13-230V

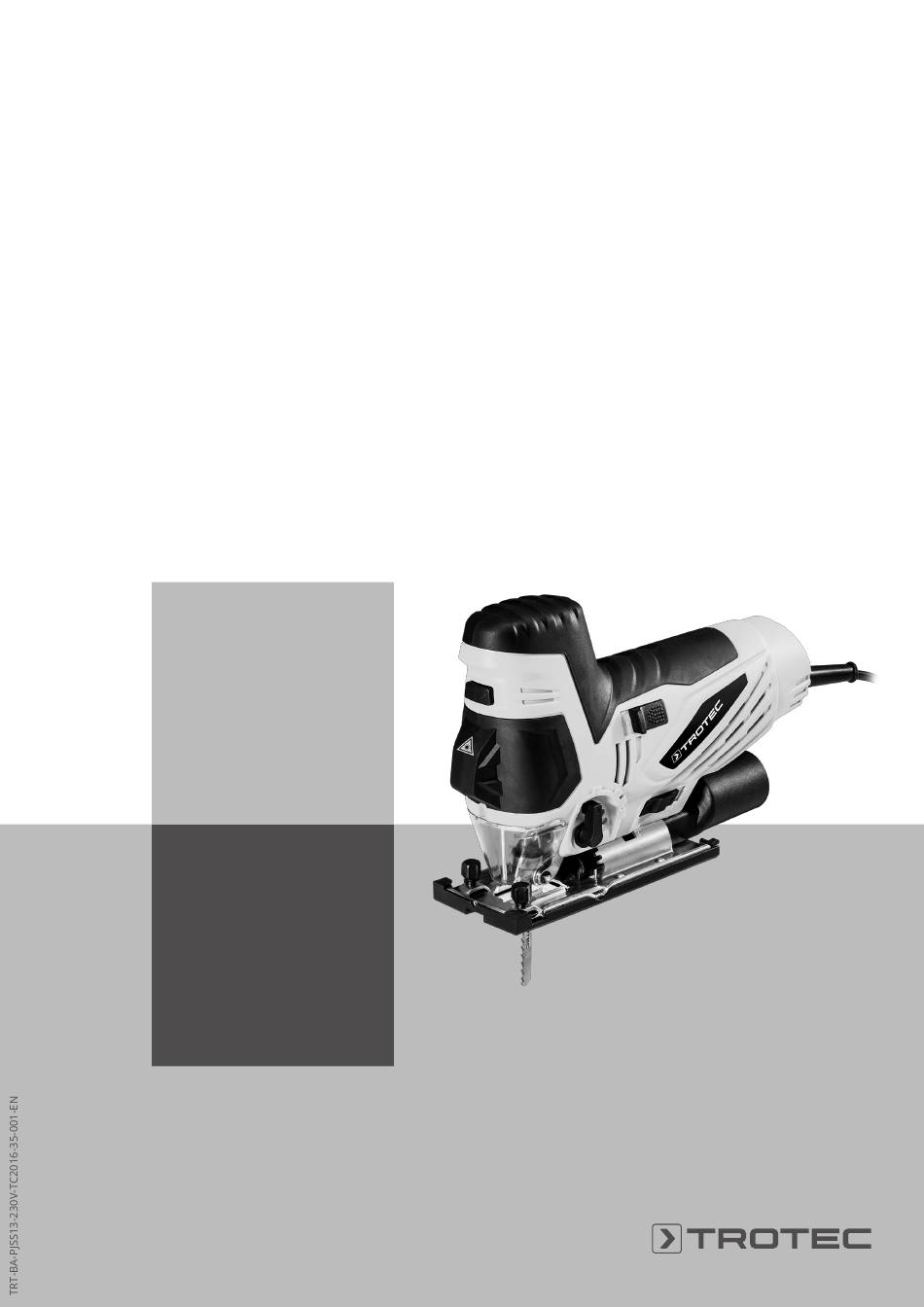

  • Page 1 PJSS 13-230V ORIGINAL INSTRUCTIONS 850W PENDULUM ACTION JIGSAW...

  • Page 2: Table Of Contents

    Caution Save all warnings and instructions for future This signal word indicates a hazard with a low risk reference. level which, if not avoided, can result in minor or moderate injury. 850W pendulum action jigsaw PJSS 13-230V...

  • Page 3: Safety

    Power tools are dangerous in the hands of untrained users. 850W pendulum action jigsaw PJSS 13-230V...
  • Page 4 This serves to workpiece by your hand or against the body leaves it avoid a kickback, then you can put the power tool down unstable and may lead to loss of control. safely. 850W pendulum action jigsaw PJSS 13-230V...
  • Page 5 (see instructions). from the mains socket! Do not touch the mains plug with wet or damp hands. We recommend using the power tool with original Trotec Hold onto the mains plug while pulling the power cable accessories.

  • Page 6: Information About The Device

    Caution Vibration emissions can cause a health hazard if the device is used for an extended period of time or if it is not properly handled and maintained. 850W pendulum action jigsaw PJSS 13-230V...
  • Page 7 • 3 x Saw blade HCS wood • 1 x Saw blade HSS metal • 1 x Adapter for dust extraction • 1 x Anti-splinter guard • 1 x Sliding block • 1 x Manual 850W pendulum action jigsaw PJSS 13-230V...

  • Page 8: Transport And Storage

    • Dry and protected from frost and heat not properly handled and maintained. • Ambient temperature below 45 °C • protected from dust and direct sunlight 850W pendulum action jigsaw PJSS 13-230V...

  • Page 9: Start-Up

    5. Push the saw blade into the quick-release chuck all the way to the stop (13). Use a suitable sawblade with single lug shank. 850W pendulum action jigsaw PJSS 13-230V...
  • Page 10 4. To reattach the sliding block (20), first push it onto the front part of the base plate (6). 5. Then let the fastening clips (19) lock in place at the rear. 6. Check the sliding block (20) for tight fit. 850W pendulum action jigsaw PJSS 13-230V...
  • Page 11 2. Push the base plate lock (14) to the front. 5. Slide the base plate (6) back to the front until the toothing engages. 6. Push the base plate lock (14) to the rear. 7. Check the base plate (6) for tight fit. 850W pendulum action jigsaw PJSS 13-230V...
  • Page 12 • Switch off the pendulum action when processing thin materials. • Work at a low pendulum level when processing hard materials. • For soft materials or when sawing wood with the grain you can work with the maximum pendulum level. 850W pendulum action jigsaw PJSS 13-230V...

  • Page 13: Operation

    If required, remove the foreign objects or use HSS saw blades. • Use a narrow saw blade when sawing tight curves. • The saw blade should not be longer than required for the intended cut. 850W pendulum action jigsaw PJSS 13-230V...
  • Page 14 4. Slide the on/off switch (2) to 0. 2. For an optimum dust extraction, insert the anti-splinter guard (11) if possible. 3. Connect a suitable vacuum cleaner (e.g. industrial vacuum cleaner) to the dust extraction (3). 850W pendulum action jigsaw PJSS 13-230V...

  • Page 15: Available Accessories

    • This is not a fault. These phenomena disappear after a brief runtime. The device still does not operate correctly after these checks: Please contact the customer service. If necessary, bring the device to an authorised specialist electrical company or to Trotec for repair. 850W pendulum action jigsaw PJSS 13-230V...

  • Page 16: Maintenance

    • Keep the ventilation openings free from dust deposits to prevent overheating of the motor. • Remove dust and chips from the chip ejector. If the chip ejector is blocked, clean it with suitable means (e.g. compressed air). 850W pendulum action jigsaw PJSS 13-230V...

  • Page 17: Declaration Of Conformity

    Declaration of conformity Declaration of conformity in accordance with the EC Machinery Directive 2006/42/EC, Annex II, Part 1, Section A We – Trotec GmbH – declare in sole responsibility that the product designated below was developed, constructed and produced in compliance with the requirements of the EC Machinery Directive in the version 2006/42/EC.
  • Page 18 Trotec GmbH Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
