Summary of Contents for Trotec PMTS 10-20V

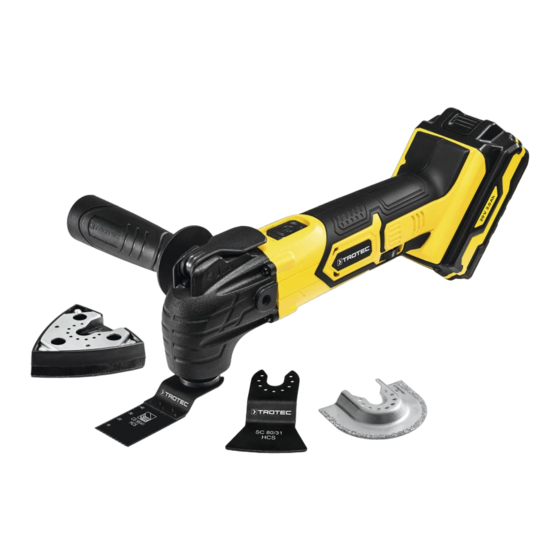

- Page 1 PMTS 10-20V OPERATING MANUAL CORDLESS MULTI-FUNCTION TOOL...
- Page 2 This signal word indicates a hazard with a low risk level which, if not avoided, can result in minor or moderate injury. Notice This signal word indicates important information (e.g. material damage), but does not indicate hazards. Operating manual – cordless multi-function tool PMTS 10-20V...
-
Page 3: Safety
The use of a dust • Do not expose power tools to rain or wet conditions. extraction system may reduce dust-related hazards. Water entering a power tool will increase the risk of electric shock. Operating manual – cordless multi-function tool PMTS 10-20V... - Page 4 Shorting the battery terminals together may cause burns or a fire. Operating manual – cordless multi-function tool PMTS 10-20V...
- Page 5 • Keep your hands out of the sawing area. Do not reach We recommend using the power tool with original Trotec underneath the workpiece. Risk of injury upon contact accessories.
- Page 6 Wear eye protection and a dust mask! Warning Do not process materials containing asbestos. Asbestos is considered carcinogenic. Operating manual – cordless multi-function tool PMTS 10-20V...
-
Page 7: Information About The Device
8a Battery level indication 8b Battery holder Elbow 10 Dust extraction 11 Quick charger 12 Velcro®-backed triangle sandpaper (3 x wood, 3 x metal) 13 Delta sanding plate 14 Anti-vibration handle 15 Tool holder with clamping screw Operating manual – cordless multi-function tool PMTS 10-20V... - Page 8 Sound values according to EN 60745 Sound pressure level 75 dB(A) Sound power level 86 dB(A) Uncertainty K 3 dB(A) Wear hearing protection. Excessive noise can lead to hearing loss. Operating manual – cordless multi-function tool PMTS 10-20V...
-
Page 9: Transport And Storage
• Remove the battery from the device. • protected from dust and direct sunlight inside the transport • Remove the tool from the tool holder. case • If attached, disconnect the dust extraction system from the device. Operating manual – cordless multi-function tool PMTS 10-20V... -
Page 10: Start-Up
Prior to initial start-up and when the battery is low (only the red LED in the battery level indication (8a) is illuminated), the battery should be charged. To do so, please proceed as follows: 1. Insert the battery (8) into the quick charger (11) upside down. Operating manual – cordless multi-function tool PMTS 10-20V... - Page 11 Wear appropriate protective gloves when inserting or indication (8a). exchanging tools. Info If need be, connect the dust extraction system before the tool change. 1. Complete open the tool holder by means of the tool release lever (1). Operating manual – cordless multi-function tool PMTS 10-20V...
- Page 12 2. Remove the tool from the tool holder (15), if any. 4. Complete close the tool holder by means of the tool release lever (1). 5. Check whether the tool is properly locked in place. Operating manual – cordless multi-function tool PMTS 10-20V...
- Page 13 4. The setting range covers the levels 1 - 6 (5,000 - 19,000 rpm). You can change the preselected oscillation rate at any time. 1. Turn the setting wheel (3) to the desired oscillation rate. Operating manual – cordless multi-function tool PMTS 10-20V...
-
Page 14: Operation
• Use the coarse triangular sanding sheets (e.g. 60 grit) for rough grinding and the fine ones (e.g. 240 grit) for fine and finish grinding. Operating manual – cordless multi-function tool PMTS 10-20V... - Page 15 • Use the delta sanding plate with suitable sandpaper. toxic materials. 1. Fasten the dust extraction system to the device before inserting a tool. 2. Put the dust extraction system (10) on the device. Operating manual – cordless multi-function tool PMTS 10-20V...
-
Page 16: Available Accessories
• Remove the battery from the device (see Start-up chapter). • Remove the tool from the device (see Start-up chapter). • Clean the device according to the Maintenance chapter. • Store the device according to the Storage chapter. Operating manual – cordless multi-function tool PMTS 10-20V... -
Page 17: Errors And Faults
• Wait for at least 10 minutes before switching the device • Check the quick charger for damages. Should the quick back on. charger be damaged, stop using it. Contact the Trotec Notice customer service. Wait for at least 3 minutes after maintenance and •... -
Page 18: Maintenance
• Keep the connecting terminals on the device and charger clean. • Keep the connecting terminals on the battery pack clean. • Keep the ventilation openings free from dust deposits to prevent overheating of the motor. Operating manual – cordless multi-function tool PMTS 10-20V... - Page 20 Trotec GmbH & Co. KG Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
