Summary of Contents for Oxgard Praktika QL-04

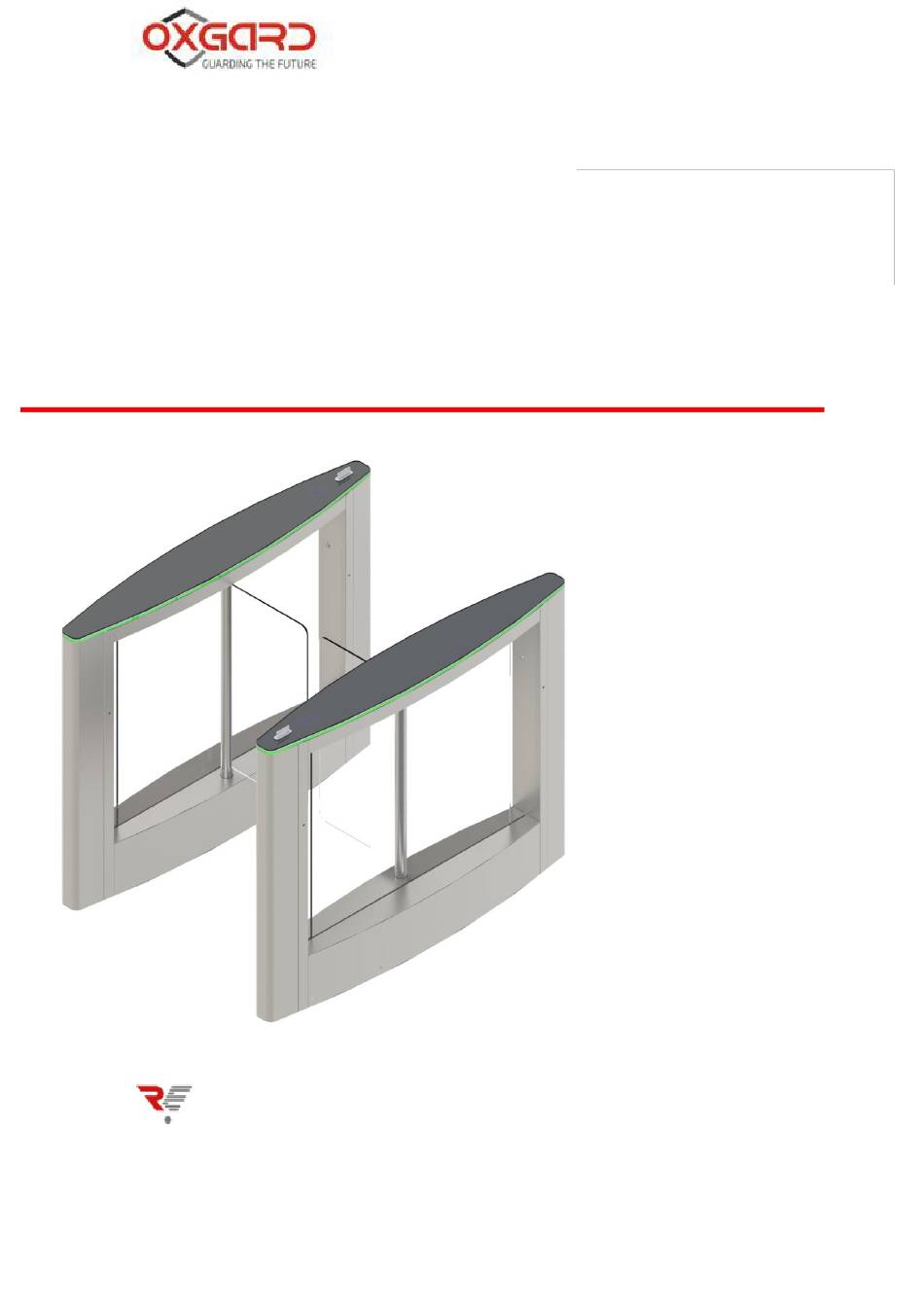

- Page 1 Operational manual Praktika QL-04(K) turnstile www.oxgard.com VOZROZHDENIE info@oxgard.com METALWORKS Тел.+7(812) 366-15-94...
-
Page 3: Table Of Contents
CONTENTS List of abbreviations used ................4 2. Delivery set ....................4 3. Basic specifications .................. 6 4. Product design ..................7 5. Transportation and storage ..............10 6. Safety requirements ................11 7. Description of card collector ..Ошибка! Закладка не определена. 7.1. -
Page 4: List Of Abbreviations Used
List of abbreviations used – power supply – fire alarm – control board – access control system – operating device Speedgate firmware version FW v2.4 Card collector firmware version FWv1.52 Praktika QL-04(K) turnstile... -
Page 5: Delivery Set
To ensure easy and quick passage of people it is recommended to install one speedgate for every 500 people working in one shift. 2. Delivery set Table 1. Delivery set Item Qty, pcs. Praktika QL-04(К) Remote control panel with cable Hatch lock key Datasheet Installation guidelines Operational manual SORMAT PFG ES 10* anchor М10х60 DIN933 hexagon screw *... -
Page 6: Basic Specifications
Weight of two-sided unit, kg Temperature range, - operation +1...+40 +1...+40 - transportation and storage +1...+40 +1...+40 Atmosphere relative humidity, no more than % Throughput, people per minute Card collector capacity (pcs.) Max. number of connected control boards, Lifetime, years Praktika QL-04(K) turnstile... -
Page 7: Product Design
Table 2. Electrical specifications Control Specifications Speedgate Card collector** board Supply voltage, V: - nominal 12,0 12,0 12,0 8…18,0 - working 10,8...15,0 7,5...15,0 Average current in standby mode * A Average current in passage mode * A Maximal current of a side unit*/***, A Maximal current of card collector*, A... - Page 8 LED strip indicates turnstile mode of passage set at the moment. Indication strip is covered with tempered glass. With the help of one-sided and two-sided units, it´s possible to organize unlimited number of passages depending on customer´s needs. Fig.1 General view of speedgate Praktika QL-04(K) turnstile...
- Page 9 LED indication strip Speedgate indication strip is made of diodes covered with light- diffusing insertion. Speedgate operating modes are reflected by moving diodes on the indication strip (Fig 2). Inserted into the indication strip diodes are covered with tempered glass. LED strip reflects turnstile mode of passage set at the moment. Fig.
-
Page 10: Transportation And Storage
3 days. Before startup, the speedgate must be kept in a room with normal climate conditions for 12 hours after storage in unheated rooms. Praktika QL-04(K) turnstile... -
Page 11: Safety Requirements
6. Safety requirements CAUTION! Failure to comply with the safety requirements specified in this section may result in damage to human life and health, total or partial loss of workability of products and (or) auxiliary equipment. CAUTION! Specific guidance on the use of the speedgate: 1. - Page 12 Set the speedgate other than in dry and heated places; Impede or accelerate the speedgate wings; Apply chemically aggressive cleaning detergents (as pastes and liquids) to the materials of the housing. Praktika QL-04(K) turnstile...
-
Page 13: Description Of Card Collector
7. Description of card collector 7.1. Card collector purpose Card collector (Fig. 4) is designed for collection and storage of proximity access cards at the exit from the facility. Flexible logic of the controller allows the integration of the card reader with any access control systems. -
Page 14: Removing Guest Cards From Card Collector
Readers of permanent cards (located on the upper panel) will be lightened with red color, it means that readers are ready to identify the card. LED indicator of Praktika QL-04(K) turnstile... -
Page 15: Operating Modes
button 2 on the RC panel will turn red (Fig. 3). The speedgate is ready for operation. 8.2. Operating modes The speedgate has several modes of operation. The desired mode is set by using RC panel or proximity cards. Operational modes are displayed on the panel in the form of mnemonic signs depicting authorization and non-authorization of passage. -
Page 16: Manual Alarm Unlock Mode
In order to disblock them it’s necessary to (fig.5): 1. Remove the storage device from the inner turnstile stand. 2.Press a leverage with a finger through a hole located on the lower part of the turnstile’s stand, making draft of speedgate disblock moving. Praktika QL-04(K) turnstile... -
Page 17: Adjustment Of Remote Control Panel
3. Move the swing manually. Fig.5 Manual disblock 8.4. Adjustment of remote control panel Speedgate can be set in various directions in relation to the user. In some cases it is needed to reverse left / right passage buttons. This can be done by the following operations: •... -
Page 18: Control With Card Collector
Guest card shall be inserted into the card hole up to the stop otherwise it will be ignored. In case the presented card is authorized, the card collector collects it and then unlocks OD for 5 seconds. Praktika QL-04(K) turnstile... - Page 19 Storage device is full When the storage device is overfilled, the card collector stops collecting guest cards and provides four short audio signals at intervals of 4 sec., the LED panel flashes red cross indicator at an interval of 4 seconds.
- Page 20 Fig. 6. General view of board Praktika QL-04(K) turnstile...
-
Page 21: Appendix 1. Recommended Power Supplies
Appendix 1. Recommended power supplies 1. MEAN WELL DR-120-12 2. MEAN WELL EDR-120-12 Appendix 2. Troubleshooting for speedgate Table 1. Troubleshooting for the speedgate Fault Remedy PS unit is connected, but Check the connection cable; Check the fuses on motherboard the speedgate does not work RC panel does not work... - Page 22 Praktika QL-04(K) turnstile...
- Page 23 Operational manual...
- Page 24 OOO "Возрождение" 192289 Санкт-Петербург ул. Софийская, д.66 тел./факс +7 (812) 336 15 94 www.oxgard.com info@oxgard.com...
