4. Parts Identification & Accessories
4-1 Broadband true diversity receiver key function and
LCD description//UF-10R

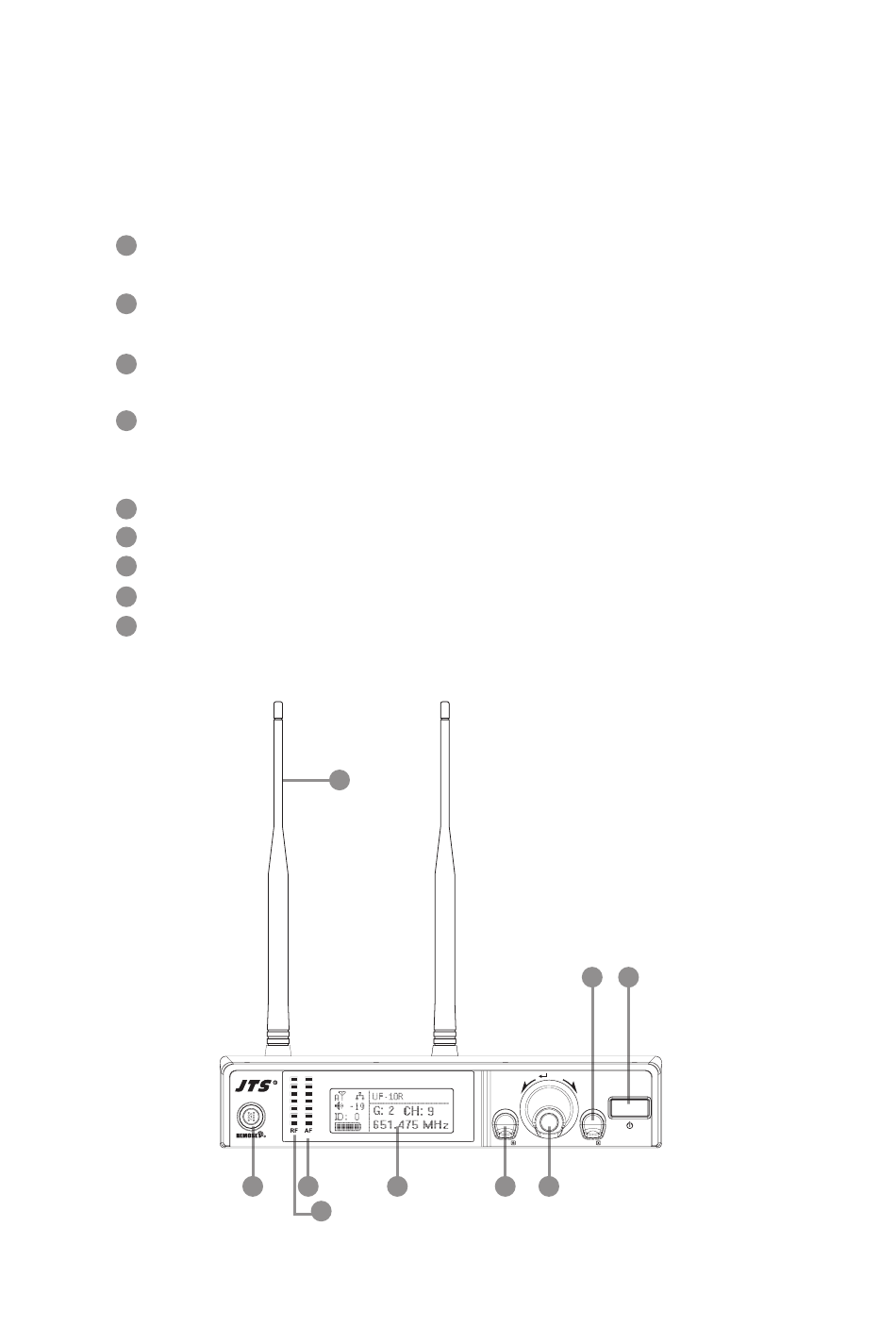

(1) Front panel
Power switch: press switch once to turn power on; press and hold for 2 seconds to shut
1
down.
EXIT key: when UF-10R is under "setup menu", press EXIT to cancel selection or leave
2
menu.
Jog dial: on "setup menu" screen, turn jog dial to select setup item, after entering into the
3
selected item turn jog dial to adjust the value.
SETUP key: press and hold for 2 seconds to enter "setup menu"; press SETUP key to
4
enter into setup mode for jog dial; after adjustment of value, press SETUP key to save the
setting.
REMOSET: Press REMOSET once to send frequency data to a microphone.
5
LCD: refer to "(2) Receiver LCD instruction".
6
AF: indicate current audio signal strength.
7
RF: indicate current radio frequency signal strength.
8
Antenna: 1/2 wave length antenna.
9
9
UF-10R
wireless receiver
5
7
6
8
2
1
PUSH
/ CONTROL
SETUP
EXIT
4
3
8
