3.3 Configuration by Webinterface

Go to the website of EPC NET 24x. Enter the IP address of EPC
NET 24x into the address line of your internet browser:
http://IP address of EPC NET 24x/

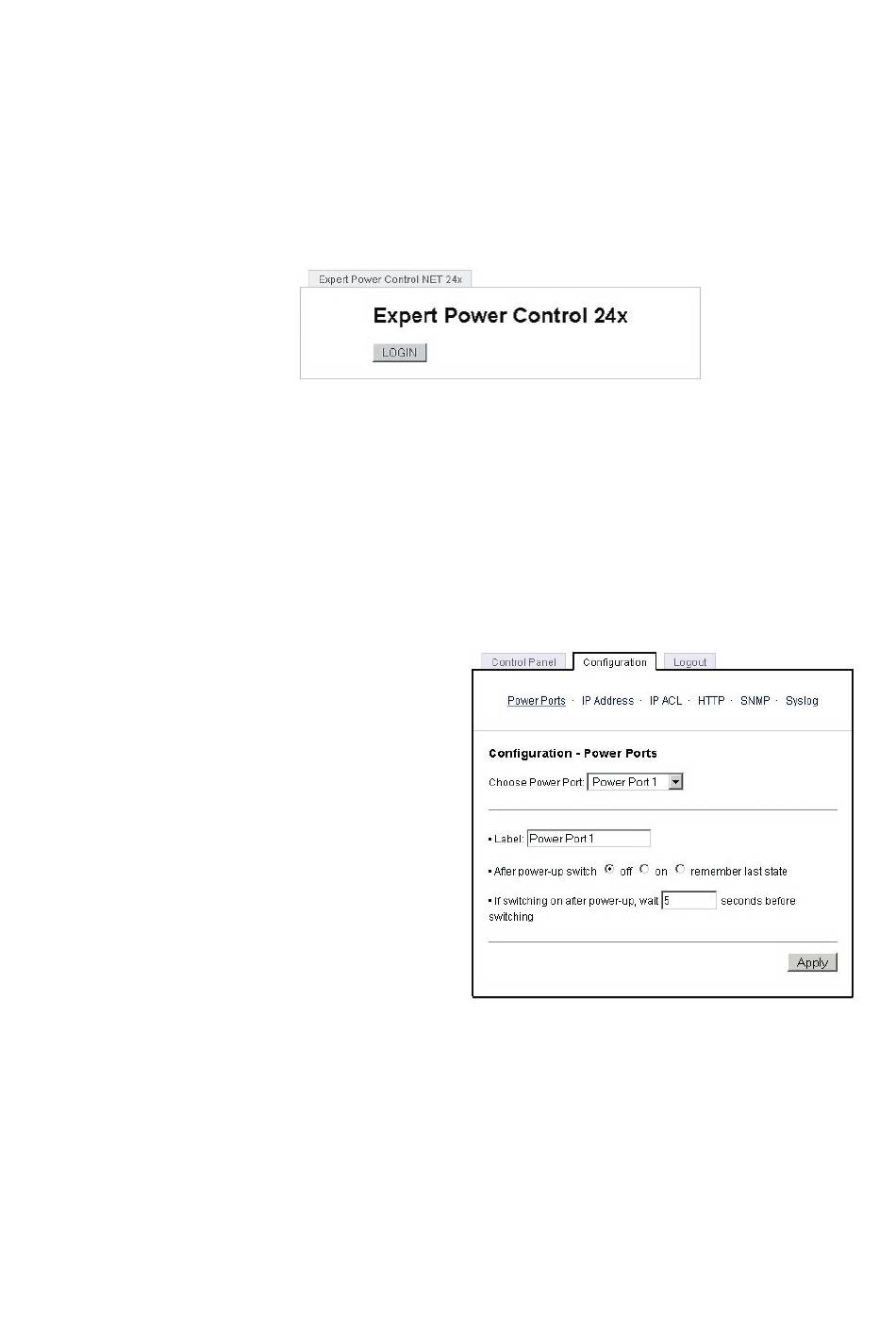

Figure 3 Login
and press LOGIN.
To enter the configuration menu, click on „Configuration" on the
upper left side of the screen.
Configuration - Power Ports
Label
A name with a maximum
of 15 characters can be
entered here for each
Power Port.
After power-up switch
The Power Port's switch-
ing state after a power-on
of EPC NET 24x can be
defined here (on, off, re-
member last state).
Figure 4 Config - Power Ports
If switching on after power-up, wait ...
A switching delay of a Power Port can be defined here that is
applied after switch on of EPC NET 24x. The delay can last up
to 8191 seconds.
