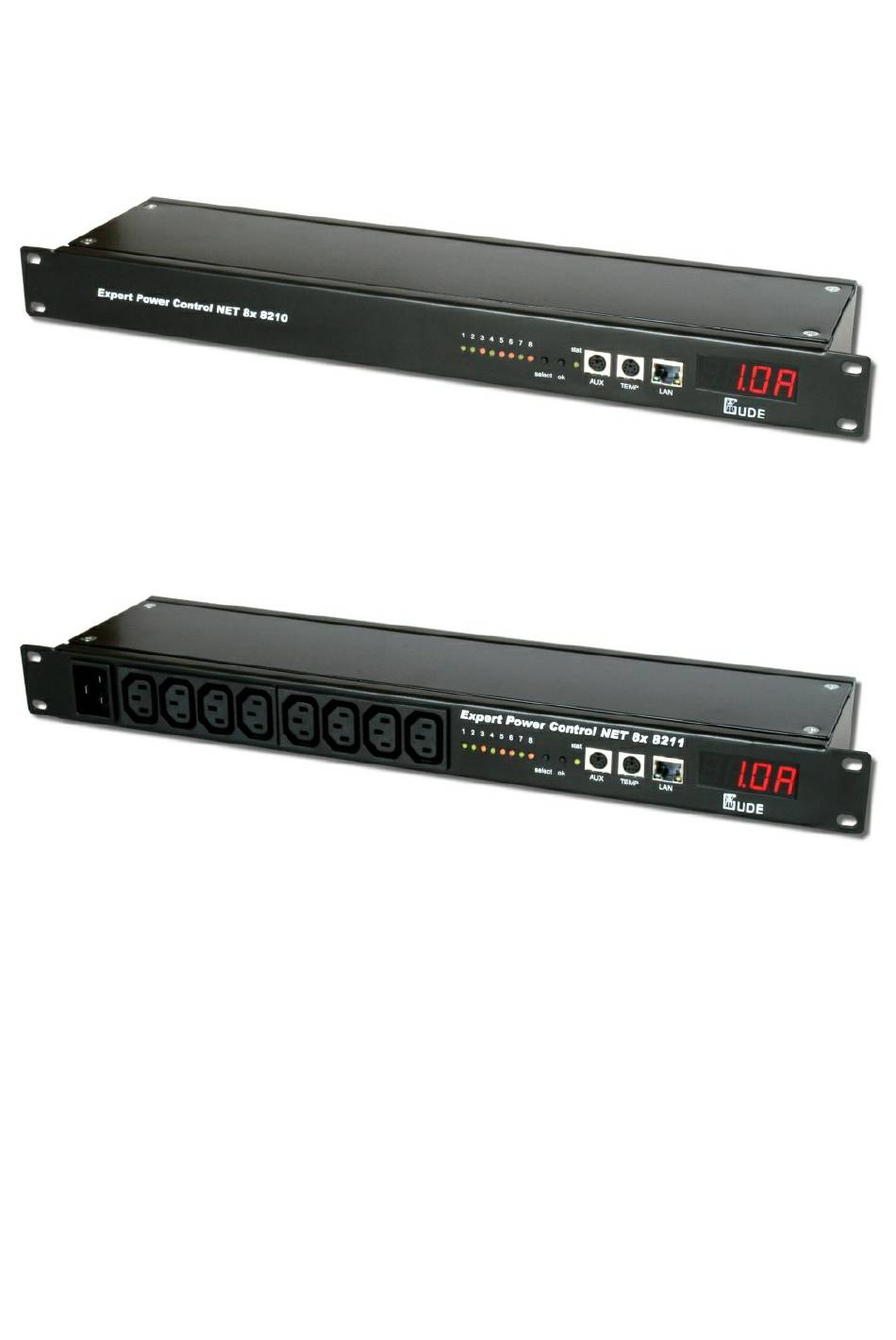

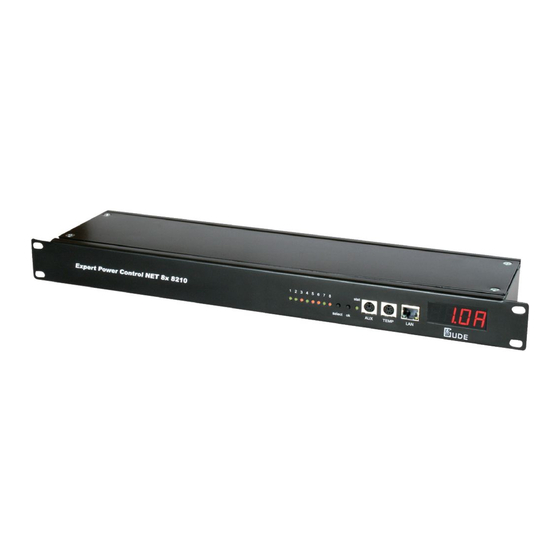

Expert Power Control NET 8x 8210 / 8211

Table of Contents

Need help?

Do you have a question about the Expert Power Control NET 8x 8211 and is the answer not in the manual?

Questions and answers

Summary of Contents for Gude Expert Power Control NET 8x 8211

Page 3: Table Of Contents
Expert Power Control NET 8x 8210 / 8211 Table of content Table of content Chapter 1 Security Advise Chapter 2 Description Chapter 3 Hardware Content of delivery Connections Installation Status LED Chapter 4 Configuration DHCP Network settings with GBL_Conf Configuration via webinterface 4.3.1 Configuration - Power Ports 4.3.2...
Page 4 Expert Power Control NET 8x 8210 / 8211 Table of content Fabrique settings Chapter 7 Support Chapter 8 Declarations of conformity © 2010 Gude Analog- und Digitalsysteme GmbH...
Page 5: Chapter 1 Security Advise
Expert Power Control NET 8x 8210 / 8211 Security Advise Security Advise The device must be installed only by qualified personnel according to the following installation and operating instructions. The manufacturer does not accept responsibility in case of improper use of the device and particularly any use of equipment that may cause personal injury or material damage.
Page 6: Chapter 3 Hardware
Expert Power Control NET 8x 8210 / 8211 Description Hardware Content of delivery Included in delivery are: Expert Power Control NET 8x 8210 / 8211 Power supply cable (IEC) CD-ROM including Software and Manual Short manual...
Page 7: Connections
1.) Connect the power supply cable to the power socket at the rear side (Expert Power Control NET 8x 8210) or front side ( Expert Power Control NET 8x 8211 ) of Expert Power Control NET 8x 8210 / 8211 and a socket. Expert Power Control NET 8x 8210 / 8211 now is booting and shortly after ready for usage.
Page 8: Status Led
For changing the network properties manually, the program GBL_Conf.exe is required. This tool is available for free on our website www.gude.info. Furthermore GBL_Conf.exe enables you to install firmware updates and to reset Expert Power Control NET 8x 8210 / 8211 to its factory settings.
Page 9 Expert Power Control NET 8x 8210 / 8211 Configuration Restart the firmware of Expert Power Control NET 8x 8210 / 8211, so that the changes will take effect. Now click on Search in order to have the new network configuration displayed.
Page 10: Configuration Via Webinterface
Expert Power Control NET 8x 8210 / 8211 Configuration Configuration via webinterface Go to the website of Expert Power Control NET 8x 8210 / 8211. Enter the IP address of Expert Power Control NET 8x 8210 / 8211 into the address line of your internet browser: http://”IP address of Expert Power Control NET 8x 8210 / 8211”/ and press LOGIN.
Page 11 Expert Power Control NET 8x 8210 / 8211 Configuration 4.3.1.2 After power-up switch The Power Port’s switching state after a power-on of the device can be defined here (on, off, remember last state). 4.3.1.3 If switching on after power-up, wait ... A switching delay of a Power Port can be defined here that is applied after switch on of the device.
Page 12: Configuration - Ip Address
Expert Power Control NET 8x 8210 / 8211 Configuration 4.3.2 Configuration - IP address 4.3.2.1 Hostname Enter the host name of Expert Power Control NET 8x 8210 / 8211. Expert Power Control NET 8x 8210 / 8211 uses this name to connect with DHCP server. Special signs may destabilize your network.
Page 13: Configuration - Ip Acl
If you locked yourself out by mistake, please activate the bootloader mode of Expert Power Control NET 8x 8210 / 8211, start Gbl_Conf.exe and deactivate IP ACL. You can find more information about configuration of IP ACL or have a look at http://www.gude.info/wiki. 4.3.3.1 Reply ICMP-Ping requests Here you can set, if Expert Power Control NET 8x 8210 / 8211 shell react on pings.
Page 14: Configuration - Messages
Expert Power Control NET 8x 8210 / 8211 Configuration 4.3.4.1 HTTP Port Here you can enter the HTTP port number, if necessary. Possible numbers are 1 ... 65534 (standard: 80). To get access to Expert Power Control NET 8x 8210 / 8211, you have to enter the port number behind the IP address of Expert Power Control NET 8x 8210 / 8211, e.g.: http://192.168.0.2:1720 All changes need a restart of the firmware to get valid.
Page 15: Configuration - Snmp
SNMP-Traps are system messages, sent via SNMP-protocol to different clients. On following events, Expert Power Control NET 8x 8210 / 8211 will dispatch a SNMP-Trap: Switching of the Power Ports Min/Max-Alerts from the sensors You can find more information about configuration of SNMP at http://www.gude.info/wiki.
Page 16: Configuration - Snmp Trap Receiver List
Expert Power Control NET 8x 8210 / 8211 Configuration 4.3.6.2 Enable SNMP-get Here you can activate SNMP-get protocol of Expert Power Control NET 8x 8210 / 8211. Use SNMP only if your network is fitted for. 4.3.6.3 Community public Here you can enter the SNMP public community. Use SNMP only if your network is fitted for.
Page 17: Configuration - Syslog
If syslog is active enter here the IP address of you Syslog server. 4.3.8.3 Syslog Port If syslog is active enter here the port number, that your Syslog server uses to receive syslog information. More information about Syslog you can find in chapter Syslog, on http://www.gude.info/wiki or ask our support team.
Page 18: Chapter 5 Operation
Expert Power Control NET 8x 8210 / 8211 Configuration Operation Switching at the device Expert Power Control NET 8x 8210 / 8211 disposes of two buttons: “select” and “ok”. By pushing “select”, the LED of Power Port 1 starts blinking which means that it is selected. By pushing the button again, the next Power Port is selected. If you want to change the switching state of the selected Power Port, push the “ok”...
Page 19: Batchmode
Optionally the device can be accessed by using the perl script „EPC_Control2.pl” through the command line (e.g. for automatic or time-triggered switching). For more information please refer to our website: www.gude.info/wiki Switching via serial interface Alternatively to the Ethernet interface, the Power Ports of Expert Power Control NET 8x 8210 / 8211 can be switched through its serial interface.
Page 20: Sensor
Connect the temperature sensor with the TEMP and AUX connector at the front of the device. If it is connected exactly, the recent temperature is displayed in the login window, in the switching window and can be requested via SNMP. The temperature sensor can be ordered as additional supplies. More information can be found at www.gude.info or requested at mail@gude.info.
Page 21: Chapter 6 Features
In order to update the firmware the program GBL_Conf.exe and the latest firmware are needed. Start the device in bootloader mode and run the program GBL_Conf.exe. On the left side of the program window all Gude devices that are in the network are listed. Select the device, that should be updated, click on Program DeviceFirmware Update and determine the location of the new firmware.
Page 22 Features Support More information, current drivers and software can be found on http://www.gude.info. In case of further questions, about installation or operation of Expert Power Control NET 8x 8210 / 8211, please have look at www.gude.info/wiki or do not hesitate to contact our support (mail@gude.info).
Page 23 Expert Power Control NET 8x 8210 / 8211 Declarations of conformity Declarations of conformity...
Page 24 Expert Power Control NET 8x 8210 / 8211 Declarations of conformity...
Page 25 Expert Power Control NET 8x 8210 / 8211 Declarations of conformity...
