Manual
Expert Power Control 8032 Series
© 2020 GUDE Systems GmbH
Manual Ver. 1.0.3
from Firmware Ver. 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Expert Power Control 8032-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Gude Expert Power Control 8032-1

  • Page 1 Manual Expert Power Control 8032 Series © 2020 GUDE Systems GmbH Manual Ver. 1.0.3 from Firmware Ver. 1.0...
  • Page 2 Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 3: Table Of Contents

    Port Commands ..................... 31 2.4.3 Security ........................33 Configuration Power Ports ......................36 3.1.1 Watchdog ....................... 37 Ethernet ....................... 38 3.2.1 IP Address ....................... 39 3.2.2 IP ACL ........................40 3.2.3 HTTP ........................41 Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 4 Console Cmd 8032 ....................76 4.7.2 Serial Console ......................84 Modbus TCP ......................85 Messages ......................89 Support Data Security ......................92 Contact ......................... 92 Declaration of Conformity ..................93 FAQ ........................93 Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 5 Table of contents Index Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 6 Device Description...
  • Page 7: Device Description Security Advice

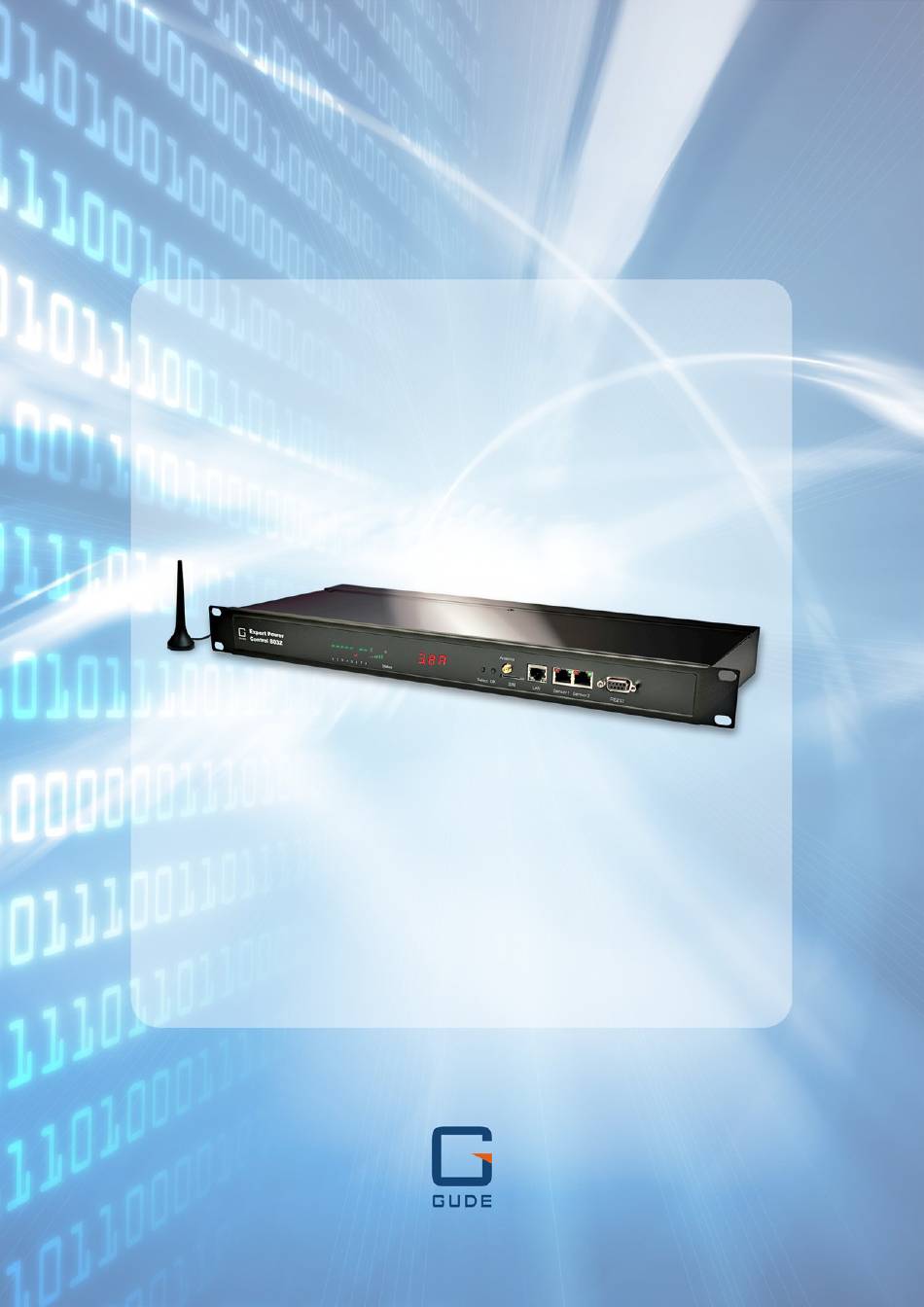

    The Expert Power Control 8032 can switch 8 load outputs (IEC C13, max. 10A), that are fed from a mains connection (IEC C20, max. 16A) . The device has the following features: Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 8 · Encrypted e-mails (SSL, STARTTLS). · Access protection through IP access control · Low own consumption · Controllable via iOS and Android app Gude Control · Developed and produced in Germany GSM Features: · 8 relay ports individually switchable via SMS ·...
  • Page 9: Installation

    17. SIM card slot Expert Power Control 8032 - 1 10. Mains supply (IEC C20, max.16 A) 11. 8 x Load outputs (IEC C13, max. 16 A) Expert Power Control 8032 - 2 Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 10: Overvoltage Protection

    Recovering of the overvoltage protection function can only be performed by the manufacturer of the device. In the normal case, the device will continue to work even after the failure of the protective function. Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 11: Technical Specifications

    · Humidity Case powder coated, galvanized steel sheet Measurements 19" (inches), 1 Rack Unit, (Depth 195 Weight approx. 2.9 kg (8032) 1.6.1 Electrical Measurement typical fault tolerances for Ta=25°C, I=1Arms...16Arms, Un=90Vrms...265Vrms Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 12: Sensor

    Humidity/Temperature Sensor 7102 (End-of-Life) Cable length Connector RJ45 temperature range -20°C to +80°C, ±0,5°C (maximum) and ±0,3°C (typical) air humidity range 0-100%, ±3% (maximum) and ±2% (typical) (non-condensing)) Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 13 -20°C to +80°C at ±2°C (max- -20°C to +80°C at ±2°C (max- imum) and ±1°C (typical) imum) and ±1°C (typical) air humidity range 0-100%, ±3% (maximum) and (non-condensing) ±2% (typical) Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 14 A click on the link in the "Name" column opens the display of the Min and Max values. The values in a column can be reset using the "Reset" button. The "Reset" button in the name column deletes all stored Min and Max values. Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 15: Operating

    Operating...
  • Page 16: Operating The Device Directly

    · green: The device is connected to the Ethernet and the TCP/IP settings are alloc- ated. · periodic blinking: The device is in Bootloader mode. Control Panel Access the web interface: http://"IP-address" and log-in. Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 17 The delay time is determined by the parameter Reset Duration, which is described in the chapter "Configuration - Power Ports ". The "Close" button dis- solves the panel again. Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 18: Maintenance

    Optionally the device can be switched via a Perl script or external tools like wget. More information is available on our support wiki at www.gude.info/wiki. When GSM is switched on, the measured signal strength and the own phone number is displayed.
  • Page 19 For devices with relays, entering or exiting the bootloader mode does not change the state of the relays as long as the operating voltage is maintained. The GBL_Conf.exe program is available free of charge on our website www.gude.info and can also be found on the enclosed CD-ROM.
  • Page 20: Maintenance Page

    Config Import File Upload: Loads a new configuration from a text file. To apply the new configuration, a "Restart Device" must be executed after the "Upload". Config File Export: Saves the current configuration in a text file. Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 21: Configuration Management

    Therefore, the generated configuration includes comments describing the boundaries of the parameters. Where "range:" refers to a numeric value, and "len:" to a text parameter. E.g: email auth set 0 #range: 0..2 Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 22: Bootloader Activation

    · Hold both buttons for 3 seconds 2) or · Remove the power supply · Hold down the "Select" button. If the push button is recessed, use a pin or paper clip · Connect the operating voltage Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 23 (about 5 seconds) 2) by Software: · Activate the Bootloader Mode of the device · "Start the GBL_Conf.exe" program · In menu "Program Device" activate the item "Reset to Fab Settings" Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 24: Gsm

    Never use pliers to tighten or similar to the antenna, thus inevitably des- troying the antenna connection. 5. Activate the EPC NET GSM · Power up the device. In factory default state, the GSM module is deac- Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 25: Sms

    2.4.1.1.1 Port: Query Port State Format %port state [portnumber] {Portcode/Mastercode} Command: Request of status of Output Port 1, Portcode 1111 %port state p1111 Answer: Hostname: ENC-2191 Output Port state: Port 1 is Off Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 26: Port: Simple Switching

    '11' .. '19' off, wait [t1 .. t9]s, on '21' .. '29' on, wait [t1 .. t9]s, off '31' .. '39' toggle, wait [t1 .. t9]s, toggle Note: Sequence numbers are identical to the DTMF codes for voice calls. Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 27: Port: Advanced Switching (Coldstart)

    %coldstart m0123 Answer: Device name: epc007 Switch sequence: coldstart Account Credit: Credit: 130.50 Eur 2.4.1.1.5 Configuration: Read Format %config get [config-name] {mastercode} [config-name code telbook gsmstatus temp response error portname adminnum Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 28: Configuration: Write

    Code enabled? Check of phone telbook on, off book? Send GSM gsmstatus on, off Status SMS to 'adminnum' Send SMS to temp on, off 'adminnum' Send SMS reply response on, off Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 29: Sensors: Query State

    Answer: Device name: epc007 Port: Sensor port 1 Sensor name: Temperature Value: NC Port: Sensor port 2 Sensor name: Temperature Value: T=22.79C Value: RH= 76.64% Account credit: Credit: 130.50 Eur Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 30: Query Device State

    [port] [c] -> wait t -> [c] [port] = 'Port 1' .. 'Port 99' (or Config:portname) [c] = on, off, toggle, coldstart Account credit: [x] Config: name = value, [...], name = value command parse error Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 31: Status Change Report Sms

    List of possible Output Port commands (pc) Port Com- Command Description mand Switch off Switch on toggle Toggle state info Request of state of Port reset Switch off, wait 30 seconds, switch on Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 32 Port on, wait t9, Port off wait t9, off Port Com- Command Description mand Batchmode: toggle, Port toggle, wait t1, Port toggle wait t1, toggle Batchmode: toggle, Port toggle, wait t2, Port toggle wait t2, toggle Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 33: Security

    Unfortunately the GSM network has no possibility to identify this fake numbers. For this reason we recommend the code query. Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 34 Operating Access Phonebook Port/Maste Security Check rCode Anybody Very low Phonebook Check Normal Code Check High Phonebook and Very high Code Check Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 35: Configuration

    Configuration...
  • Page 36: Power Ports

    The delay may last up to 8191 seconds. This corresponds to a period of approx. two hours and 20 minutes. A value of zero means that the initialization is off. Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 37: Watchdog

    Enable watchdog: Enables the watchdog function for this Power Port. Watchdog type: Here you can choose between the monitoring by ICMP pings or TCP pings. Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 38: Ethernet

    (e.g. it is doing a file system check), the server would probably exceed the trip- ping time of the watchdog. The server would be switched off and on again, and the file system check is restarted. This would be repeated endlessly. Ethernet Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 39: Ip Address

    Use manual IPv6 address settings: Activates the entry of manual IPv6 addresses. IPv6 status: Displays the IPv6 addresses over which the device can be accessed, and additionally DNS and router addresses. Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 40: Ip Acl

    IPv6 device addresses, and to set two DNS addresses, and a gateway. 3.2.2 IP ACL Reply ICMP ping requests: If you enable this feature, the device responds to ICMP pings from the network. Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 41: Http

    For some HTTP configuration changes a firmware reset is required. This can be done in the Maintenance web page. A restart of the device leads by no means to a change of the relay states. Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 42: Protocols

    Raw mode: The VT100 editing and the IAC protocol are disabled. Activate echo: The echo setting if not changed by IAC. Active negotiation: The IAC negotiation is initiated by the server. Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 43 Delay after 3 failed logins: After 3 wrong entries of username or password, the next lo- gin attempt is delayed. Use radius server passwords: Username and password are validated by a Radius Sever. Use locally stored passwords: Username and password are stored locally. Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 44: Syslog

    Syslog Server: If you have enabled Syslog Messages, enter the IP address of the server to which the syslog information should be transmitted. 3.3.3 SNMP SNMP-get: Enables the acceptance of SNMP-GET commands. SNMP-set: Allows the reception of SNMP-SET commands. Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 45 MIB table: The download link to the text file with the MIB table for the device. More information about SNMP settings are available from our support or can be found on the Internet at www.gude.info/wiki. Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 46: Radius

    Shared secret: Radius Shared Secret. For compatibility reasons, only use ASCII char- acters. Timeout: How long (in seconds) will be waited for a response from an Authentication Request. Retries: How often an authentication request is repeated after a timeout. Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 47: Modbus Tcp

    Password is accepted by the configured Radius Servers. 3.3.5 Modbus TCP Enable Modbus TCP: Enables Modbus TCP support. Modus TCP port: The TCP/IP port number for Modbus TCP. Clock Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 48: Ntp

    The user can set a time manually. set to Browsertime: Sets the time corresponding to web browser. If Time synchronization is enabled, a manual time will be overwritten at the next NTP synchronization. Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 49: Timer

    There are three possibilities in the timer configuration: Create a simple timer, add a complex timer, or change an existing configuration. Timer rules are only executed if the device has a valid time. See Configuration Create a simple timer Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 50 The action is started every day of every month at 9:30. The weekdays Saturday and Sunday are excluded. An existing rule can be removed with the "Delete" button. If a rule is deleted, the following rules move up. The numbering of the subsequent Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 51 On the "Action PortSwitch" tab the switching function can be set in more detail. Port 1 is switched on and switched off again after 1.5 hours. Extending a Rule For demonstration purposes, the simple timer from the previous example is extended here: Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 52 With this rule, the time period in the "Options" tab is limited to the period between December 5, 2018 and July 4, 2019. In this example, the timer rule is executed with a random trigger probability of 90%. Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 53 Therefore it can be useful to first cre- ate the timer as a simple timer and then adjust it in the extended dialog. Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 54 A jitter of 1800 seconds means that the action is performed randomly between 30 minutes before and 30 minutes after the pro- grammed time. The probability (Random Trigger Probability) of the execution is here Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 55: Sensors

    Configuration 100%. Further examples can be found at www.gude.info/wiki/timer Sensors Sensor: Selects a type of sensor to configure it. The first digit "1" indicates the number of the sensor port (only important for devices with more than one sensor port). This is followed by the sensor name, and the changeable sensor name.
  • Page 56: Port Switching

    Example with "Maximum value" of 65 °C, "Minimum value" of 25 °C and hysteresis of 3 °C. The dotted line shows the hysteresis. Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 57: E-Mail

    Unless it is the initial state. E-Mail Enable E-Mail: Activates the E-Mail dispatch of messages. Sender address: The E-Mail address of the sender. Recipient address: The E-Mail address of the recipient. Additional E-Mail addresses, Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 58: Front Panel

    Button Lock: Disables the front buttons (activates the key lock) with the exception of the bootloader activation. Dark Display: The 7-segment display remains dark. Front button activity temporarily switches the display on. Default Display: Selects what sensor is displayed in the display. Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 59: Gsm General

    It is still possible to use and configure a voice call in this device, but it is not re- commended and is not an official part of the scope of services of the device. This fea- ture will be removed in a later firmware update. Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 60 GSM network after power-up. Enablevoice in voice call: If enabled, you hear voice samples when a call is coming in (Voicecall). machine-to-machine DTMF tones: Enables DTMF tones in voice steering. Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 61: Gsm Phonebook

    Germany. To receive necessary information, contact your wireless ser- vice provider. IMSI: Your IMSI number. The International Mobile Subscriber Identity (IMSI) is used in GSM and UMTS mobile Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 62 The correct spelling is important to help the device recognizing whether the cur- rent balance is communicated in a message. Balance parsing string: Enter the query that you send to your provider to access your prepaid balance: E.g. *101# Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 63: Specifications

    Specifications...
  • Page 64: Ip Acl

    Leading zeros may be omitted within a block. The previous example can be rewritten 1234:4ef0:0:0:19:32ff:fe00:124 One may omit one or more successive blocks, if they consist of zeros. This may be done only once within an IPv6 address! 1234:4ef0::19:32ff:fe00:124 Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 65: Radius

    / write all status information SNMP read / write status of Power Ports (relays) read / write names of Power Ports (relays) read / write status of Port start configuration read / write status Buzzer Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 66: Snmp

    IP sniffers within this collision domain. To enforce limited access we recommend the use of DMZ or IP-ACL. SNMP v3 Because the device has no multiuser management, only one user (default name Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 67 96" can muster enough entropy for key lengths of "AES-192" or "AES-256". · From the foregoing considerations, we would recommended at present "HMAC- SHA-96" with "AES-128" as authentication and encryption method. Change in Trap Design Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 68: Device Mib 8032

    Below is a table of all device-specific OID 's which can be accessed via SNMP. In the numerical representation of the OID the prefix " 1.3.6.1.4.1.28507 " (Gude Enterprise OID) was omitted at each entry in the table to preserve space. The example for a com- plete OID would be "1.3.6.1.4.1.28507.82.1.1.1.1".
  • Page 69 .82.1.5.1.2.1.19.x Gauge32 settable Resettable Forward Reactive Energy counter. epc8032RevEnergyActive .82.1.5.1.2.1.20.x Gauge32 Reverse Active Energy counter. epc8032RevEnergyReactive .82.1.5.1.2.1.21.x Gauge32 Reverse Reactive Energy counter. epc8032RevEnergyActiveReset- .82.1.5.1.2.1.22.x Gauge32 table Resettable Reverse Active Energy counter. Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 70: Ssl

    · TLS_RSA_WITH_AES_256_CBC_SHA · TLS_DHE_RSA_WITH_AES_256_CBC_SHA · TLS_RSA_WITH_AES_128_CBC_SHA256 · TLS_RSA_WITH_AES_256_CBC_SHA256 · TLS_DHE_RSA_WITH_AES_128_CBC_SHA256 · TLS_DHE_RSA_WITH_AES_256_CBC_SHA256 · TLS_RSA_WITH_AES_128_GCM_SHA256 · TLS_DHE_RSA_WITH_AES_128_GCM_SHA256 · TLS_PSK_WITH_AES_128_GCM_SHA256 · TLS_PSK_WITH_AES_128_CBC_SHA256 · TLS_ECDH_ECDSA_WITH_3DES_EDE_CBC_SHA · TLS_ECDH_ECDSA_WITH_AES_128_CBC_SHA · TLS_ECDH_ECDSA_WITH_AES_256_CBC_SHA · TLS_ECDHE_ECDSA_WITH_3DES_EDE_CBC_SHA · TLS_ECDHE_ECDSA_WITH_AES_128_CBC_SHA · TLS_ECDHE_ECDSA_WITH_AES_256_CBC_SHA Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 71 The server keys should be generated with "openssl genrsa". If in the generated key file it reads only "----- BEGIN PRIVATE KEY -----" and not "----- BEGIN RSA PRIVATE KEY -----", the key is not recognized. ECC Certificate with Sign Request: Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 72: Console

    There are several command levels. The following commands are usable from each level: back go back one level help all commands of the actual level help all show all commands logout logout (only when login required) Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 73 >extsensor 1 2 0 events type set "EVT_SYSLOG,EVT_EMAIL" or numeric >extsensor 1 2 0 events type set "0,2" Additionally you can set all values with "ALLSET" or encode any bit pattern as hexa- Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 74 (partially invisible). Editing The following edit functions are available when the terminal supports VT100, and Raw Mode is deactivated. Entered characters are inserted at the cursor position. Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 75 In this example these are the fields Absolute Active Energy (0), Power Active (1), Voltage (2), Current (3) and Reset Time (12). d) Displaying Port Relays >port all state 1 show P1=ON,P2=OFF,P3=ON,P4=OFF,P5=OFF,P6=OFF,P7=OFF,P8=ON Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 76: Console Cmd 8032

    KVM cmds enabled console serial utf8 set {OFF=0|ON=1} enables UTF8 support console serial utf8 show shows if UTF8 enabled console serial login set {OFF=0|ON=1} enables login on/off Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 77 {port_num} {sen_type} {sen_field} hyst sets hysterese value for sensor set {num} extsensor {port_num} {sen_type} {sen_field} hyst shows hysterese value for sensor show extsensor {port_num} {sen_type} {sen_field} sets Port for Power Port Switching actions Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 78 {1..20} port show set power port num for freecall actions gsm phonebook {1..20} action set {NONE=0| GSM_TOGGLE=1|GSM_ON=2|GSM_OFF=3| GSM_RESET=4|GSM_ONOFF1S=5| set freecall action GSM_ONOFF5S=6|GSM_OFFON1S=7| GSM_OFFON5S=8} gsm phonebook {1..20} action show show freecall action Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 79 {line_num} label set "{name}" sets line meter to label linesensor {line_num} label show shows label of line meter linesensor {line_num} {energy_sensor} events set enables events on/off {OFF=0|ON=1} Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 80 - e.g. port all state port all state set "{port_list}" {OFF=0|ON=1} set "1,3,5" 1 port all state {MODE0=0|MODE1=1|MODE2=2} shows all port states in 3 different view modes Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 81 SNMP UDP port snmp port show shows SNMP UDP port snmp snmpget enabled set {OFF=0|ON=1} enables SNMP GET cmds on/off snmp snmpget enabled show show if SNMP GET cmds are enabled Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 82 {rule_num} trigger {HOUR=0|MIN=1|SEC=2| shows time date list DAY=3|MON=4|DOW=5} show timer {rule_num} action mode set {SWITCH=1| sets switch or cli cmd CLI=2} timer {rule_num} action mode show shows if switch or cli cmd Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 83 Absolute Active Energy Resettable Absolute Reactive Energy Resettable VARh Residual Current Neutral Current Residual Current Type B RMS Residual Current Type B DC Whether the measured values "Residual Current" and "Neutral Current" are sup- Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 84: Serial Console

    Syntax: w x y z · w prefix 0x80 · x command (0x31 to turn on, 0x32 for turning off) · y port number (0x01 ... ) Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 85: Modbus Tcp

    · Number of energy sensors · Measured values of energy sensors · Measured values of the external sensors This chapter is general for all Gude devices. Depending on the device type, some ports or certain sensors are not available. Address Range:...
  • Page 86 Read 16-bit values that contain different device information depending on the address: Request Code 1 Byte 0x04 Starting Address 2 Bytes 0x0000 to 0xffff Quantity of Inputs 2 Bytes 1 to 0x7d Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 87 Line: 0x0400 + Line * 0x120 + Phase * 0x60 + Offset * 2 Port: 0x3a00 + Port * 0x120 + Phase * 0x60 + Offset * 2 For devices with only one phase, the phase is set to zero in the formula. Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 88 Request Code 1 Byte 0x2b MEI Type 1 Byte 0x0e Read Dev ID code 1 Byte 0x01 Object Id 1 Byte 0x00 Response Code 1 Byte 0x2b MEI Type 1 Byte 0x0e Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 89: Messages

    · Condition change of overvoltage protection Syslog messages Syslog messages are simple text messages that are sent via UDP to a syslog server. Under Linux, normally a syslog daemon is already running (eg. syslog-ng), for Mi- Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 90 · Exceeding of the max / min values of attached sensors · State change of digital sensor input ports · Exceeding of max / min values of the measured power consumption · Condition change of overvoltage protection Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 91: Support

    Support...
  • Page 92: Data Security

    Support Support You will find the latest product software on our website at www.gude.info available for download. If you have further questions about installation or operation of the unit, please contact our support team. Furthermore, we present in our support wiki at www.gude.info/wiki FAQs and configuration examples.
  • Page 93: Declaration Of Conformity

    This product from the Expert Power Control 8032 series is in conformity with the European directives for CE marking applicable to this product. The complete CE de- claration of conformity for this product can be found on the website www.gude.info in the download section of the product.
  • Page 94 - R - Firmware-Update Radius - G - Restart RS232 connector GBL_Conf.exe - S - GSM General GSM Misc Security Advice GSM Phone Select button GSM Provider Sensors 12, 55 GSM SIM Card Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 95 Index SMS Commands SMS replies SNMP 44, 66 Start-up the device Status LED Status-LED syslog - T - Technical Specifications Timer Timer Konfiguration - W - Watchdog Expert Power Control 8032 © 2020 GUDE Systems GmbH...
  • Page 96 Expert Power Control 8032 © 2020 GUDE Systems GmbH 3/5/2020 Expert Power Control 8032 © 2020 GUDE Systems GmbH...
