Summary of Contents for Gude Expert Power Control NET 24x

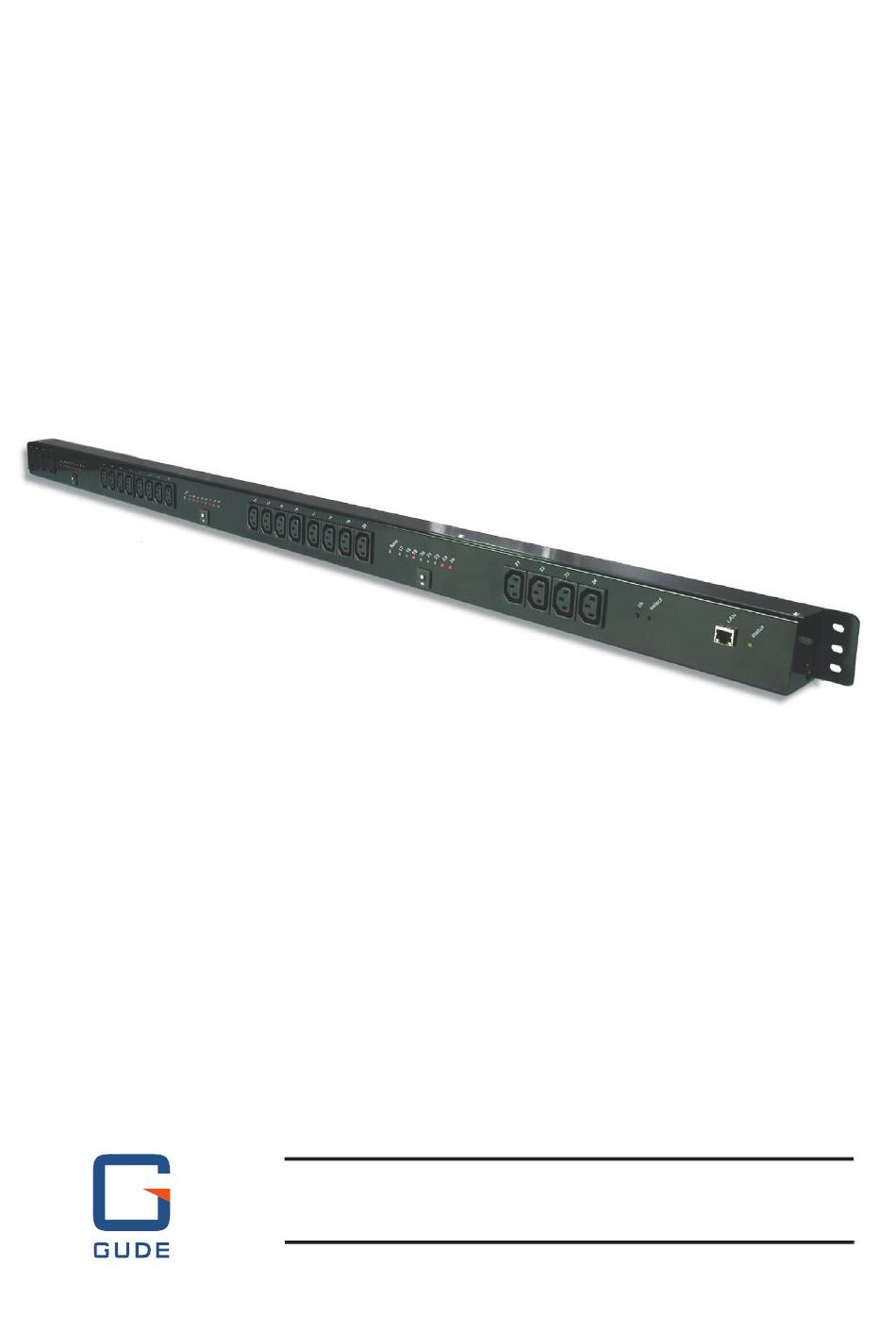

  • Page 1 Expert Power Control NET 24x The 24-fold Remote Power Switch for TCP/IP networks Manual...
  • Page 2 Manual Expert Power Control NET 24x © 20 Rev. 1.
  • Page 3: Table Of Contents

    3.4 IP Access Control List 3.5 SNMP 3.6 Syslog 4. Switching 4.1 Switching at the device 4.2 Switching by Webinterface 4.3 Fuses 5. Features 5.1 Bootloader mode 5.2 Firmware update 5.3 Default settings 5.4 Technical Information 6. Support Expert Power Control NET 24x...
  • Page 4: Security Advise

    Please recycle the packaging materials. In case of further questions, about installation, operation or usa- ge of the device, which are not clear after reading the manual, please do not hesitate to ask our support team. Expert Power Control NET 24x...
  • Page 5: Description

    1. Description With Expert Power Control NET 24x (EPC NET 24x) electrical devices can be switched via a TCP/IP network. There are only two steps necessary for installation: The connection to an elec- tric circuit and a TCP/IP network and the configuration of the IP settings.
  • Page 6 D) Button „ok” E) Button „select” F) 24 Power Ports (IEC, max. 10 A) G) 3 Fuse LEDs H) 3 Fuses (16 A) I) 24 Power Port LEDs D, E Figure 1 Frontside of EPC NET 24x Expert Power Control NET 24x...
  • Page 7: Configuration

    Restart EPC NET 24x by switching it off and on again, so that the chang- es will take effect. Now click on Search in order to have the new network configuration displayed. Figure 2 GBL_Conf.exe Expert Power Control NET 24x...
  • Page 8: Configuration By Webinterface

    If switching on after power-up, wait ... A switching delay of a Power Port can be defined here that is applied after switch on of EPC NET 24x. The delay can last up to 8191 seconds. Expert Power Control NET 24x...
  • Page 9 24x proves if a DHCP server is active inside of your LAN. Then EPC NET 24x requests TCP/IP settings from this server. If there is no DHCP server inside of your network, we recommend to de- activate this function. Expert Power Control NET 24x...
  • Page 10 Here you can activate the IP Access Control List (IP ACL) of EPC NET 24x. If IP ACL is active, DHCP and SNMP only work, if all neces- sary servers and clients are registered in this List. Figure 6 Config - IP ACL Expert Power Control NET 24x...
  • Page 11 If you have forgotten your password, activate the boot- loader mode of EPC NET 24x, start GBL_Conf.exe and deac- tivate the password request. All changes need a restart of the firmware to get valid. Figure 7 Config - HTTP Expert Power Control NET 24x...
  • Page 12 Here you can activate SNMP-set protocol of EPC NET 24x. SNMP private community Here you can enter the SNMP private community. Download SNMP-MIB Here you can download the MIBs of EPC NET 24x. Figure 8 Config - SNMP Expert Power Control NET 24x...
  • Page 13 1 and 2c. Use SNMP only if your network is fitted for. More information about the SNMP functions of EPC NET 24x, you can find in chapter 3.5, on http://www.gude.info/wiki or ask our support team. Expert Power Control NET 24x...
  • Page 14: Ip Access Control List

    If you locked yourself out by mistake, please activate the boot- loader mode of EPC NET 24x, start Gbl_Conf.exe and deacti- vate IP ACL. You can find more information about configuration of IP ACL in chapter 3.3 or have a look at http://www.gude.info/wiki. Expert Power Control NET 24x...
  • Page 15: Snmp

    „powerports“ (GUDEADS-EPC-MIB::gadsEPC) was created especially for EPC NET 24x. At least, there are so called Object Identifiers (OID) subordi- nated to those three structures. An OID describes the location of an information inside a MIB. Expert Power Control NET 24x...
  • Page 16: Syslog

    - Switching of the Power Ports - Changes of the fuses You can find more information about configuration of SNMP in Chapter 3.3 or have a look at http://www.gude.info/wiki. 3.6 Syslog Syslog messages are simple text messages transmitted to a syslog server using UDP.
  • Page 17: Switching

    4.2 Switching by Webinterface Go to the website of EPC NET 24x. Enter the IP address of EPC NET 24x into the address line of your internet browser: http://IP address of EPC NET 24x/ Figure 12 Login Expert Power Control NET 24x...
  • Page 18 NET 24x can be switched on or off for a selectable delay (1-30 sec. or 1-30 min.). After the chosen delay the selected port will be switched off or Figure 14 Batchmode switched on again auto- matically. Expert Power Control NET 24x...
  • Page 19: Fuses

    Fuse 1: Power Port 1-8 Fuse 2: Power Port 9-16 Fuse 3: Power Port 17-24 If there is one fuse disabled, it can easily be enabled again. Simply press it back into the case of EPC NET 24x. Expert Power Control NET 24x...
  • Page 20: Features

    Select the one, that should be updated, click on Program De- vice→Firmware Update and determine the location of the new firmware. To activate the new firmware, you have to disable the bootloader mode of EPC NET 24x. Expert Power Control NET 24x...
  • Page 21: Default Settings

    Factory Settings EPC NET 24x Name: EPC-NET-24x IP adress: 192.168.0.2 Netmask: 255.255.255.0 Gateway: 192.168.0.0 DHCP: enabled Password disabled HTTP Port: IP ACL: disabled Power Port 1-24 Name: Power Port 1 - 24 After Reboot: disabled Expert Power Control NET 24x...
  • Page 22: Technical Information

    HTTP 1.1, DHCP, SNMPv1, SNMPv2c, SNMP-Traps (v1 und v2c), Syslog Operating Temperature: 0ºC - 50ºC Independent from OS (Ethernet) 16 A CEE Version: Dimensions: 155 cm x 6 cm x 6 cm (LxBxT) Weight: 6 kg Interface: Ethernet RJ45 Expert Power Control NET 24x...
  • Page 23: Support

    More information and current driver software can be found on http://www.gude.info. In case of further questions, about installation or operation of EPC NET 24x, please have look at www.gude.info/wiki or do not hesitate to contact our support (mail@gude.info). Expert Power Control NET 24x...
  • Page 24 EN 61000-3-2:2006 Electromagnetic compatibility Part 3-2 : Limits – Limits for harmonic current emissions EN 60950-1:2006 Sicherheit von Einrichtungen der Informationstechnik EN 60950-1:2006 Safety for Industrial Control Equipment Köln, 23.10.2007 ____________________________________________ Dr. Michael Gude, Geschäftsführer / Expert Power Control NET 24x...
  • Page 25 Contact GUDE Systems GmbH Von-der-Wettern-Str. 23 51149 Koeln Tel.:+49-221-912 90 97 Fax:+49-221-912 90 98 E-Mail: mail@Gude.info Web: www.Gude.info...
