Zebex Z-8072 Service Manual page 7

Hands-free 2d image reader
Hide thumbs Also See for Z-8072:

Advertisement

6.

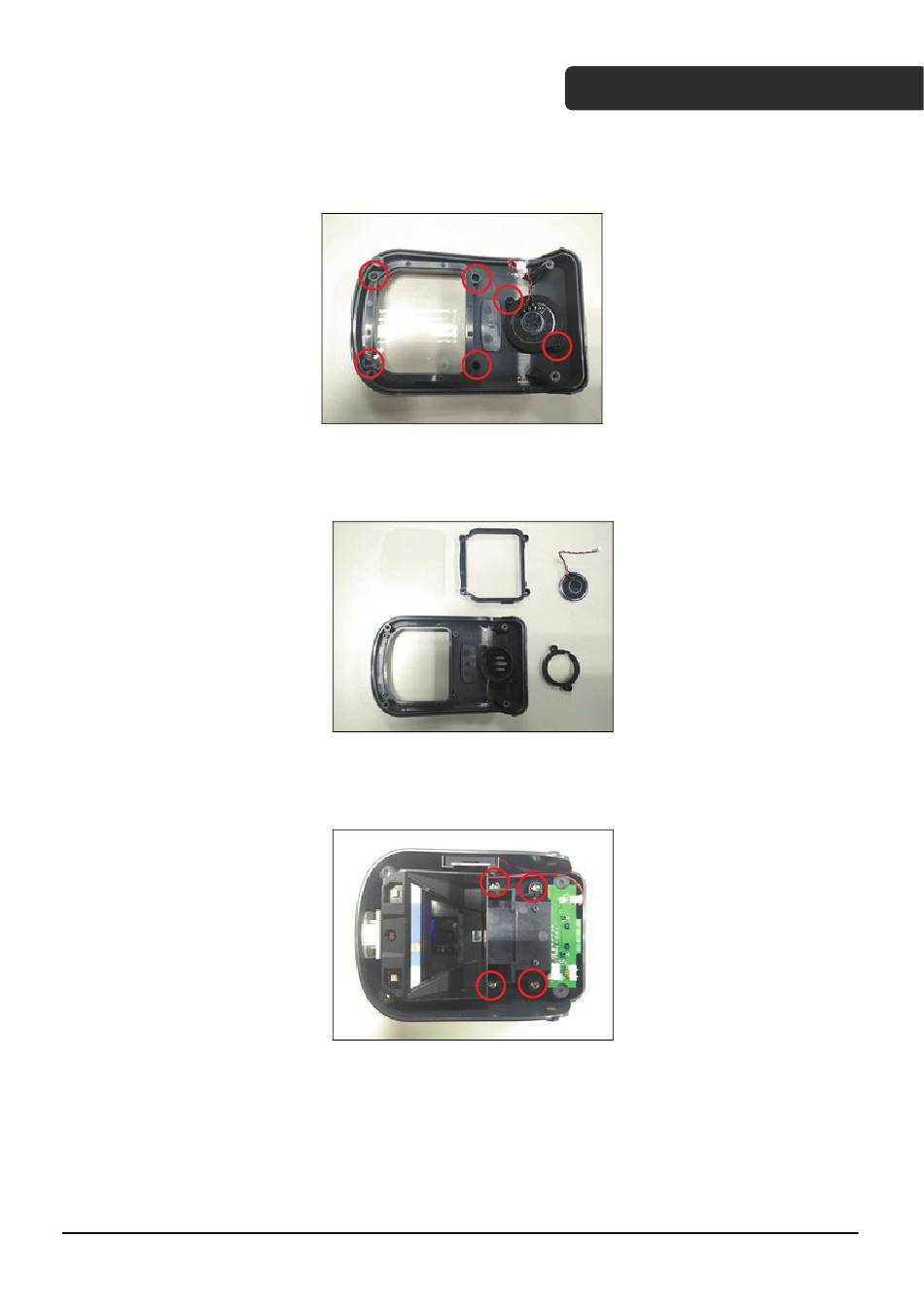

Remove the self-tapping screws M2-5mm (521-013000-5R0 x6).
7.
Separate the front cover, speaker holder, dust cover holder, and speaker.
8.
Remove the self-tapping screws M3-8mm (521-004000-8R0 x4).
Z-8072 Service Guide
S
G
ERVICE
UIDE
7 / 11
