3.

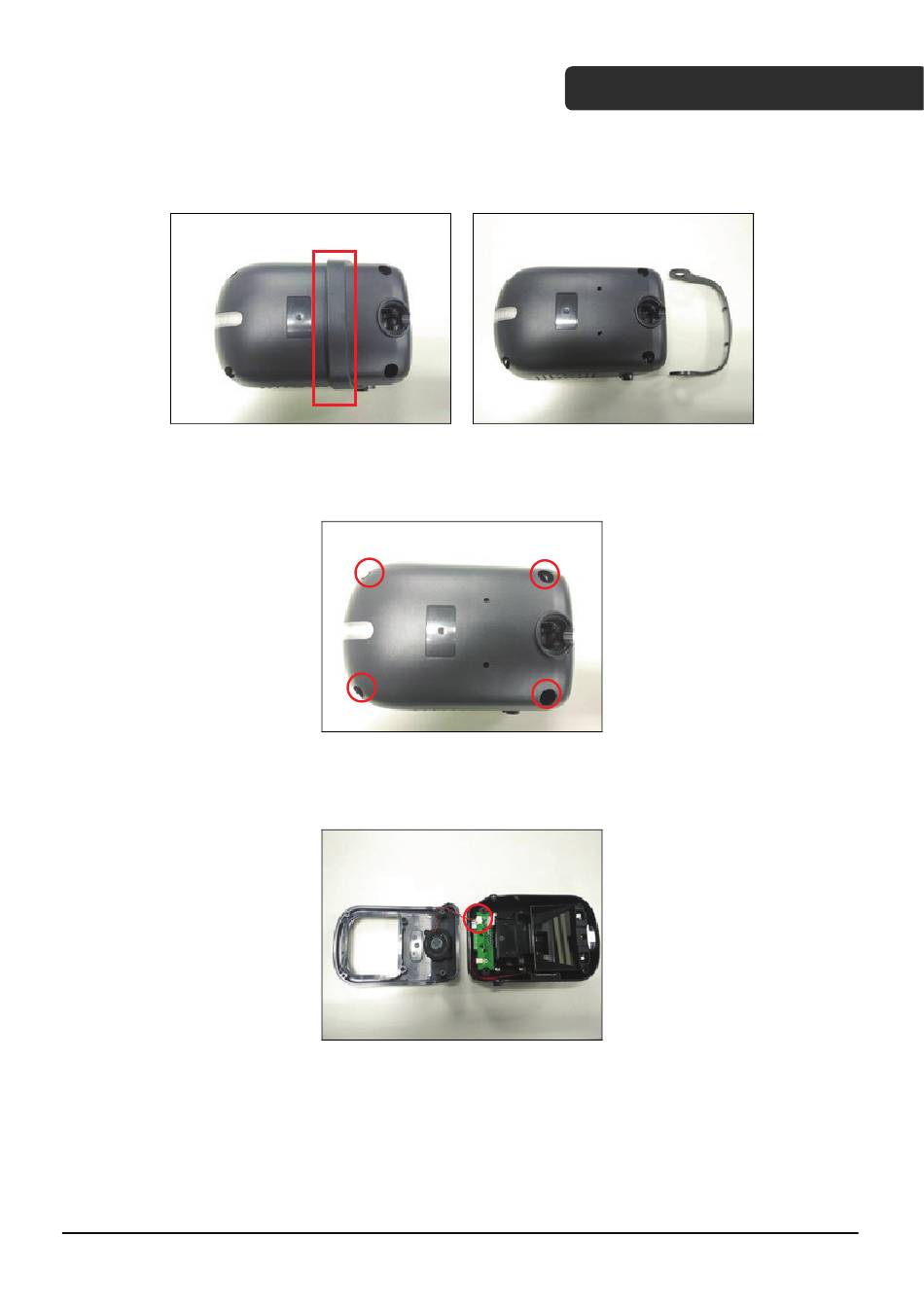

Remove the back cover ring from the scanner.
4.
Remove the screws from the back cover (521-604000-010 x 4).
5.
Separate the front cover from the back cover and remove the speaker wire.
Z-8072 Service Guide
S
G
ERVICE
UIDE
6 / 11
