6.3.2 Moves/Jogs tab

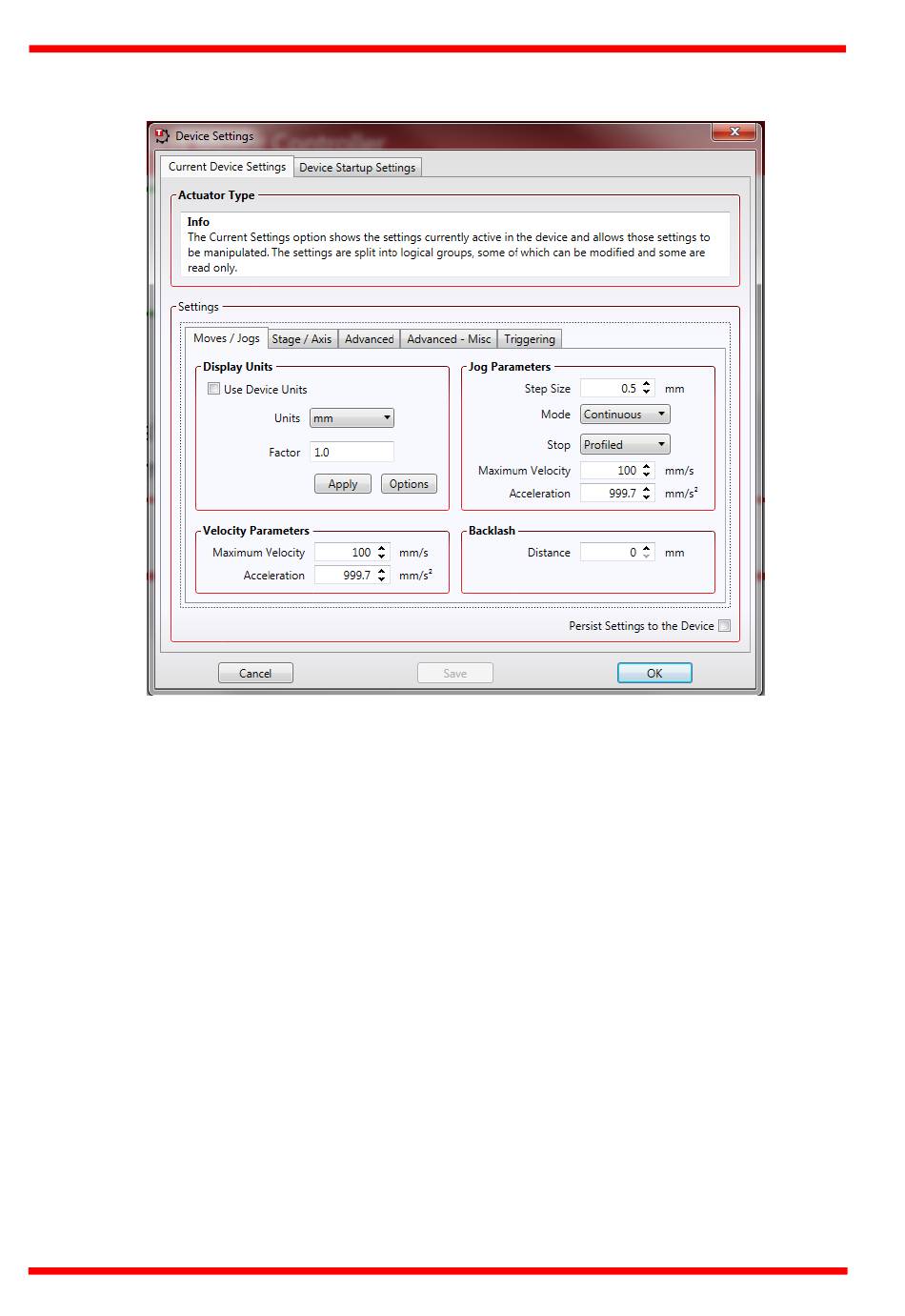

Fig. 6.2 Move/Jog Settings
Display Units
By default, the unit will display position in real world units (mm or degrees). If required,
the units can be changed to so that the display shows other positional units (cm, µm,
µrad etc).
Units - the positioning units used on the GUI display.
Factor - the scaling factor associated with the selected units.
