Chapter 3

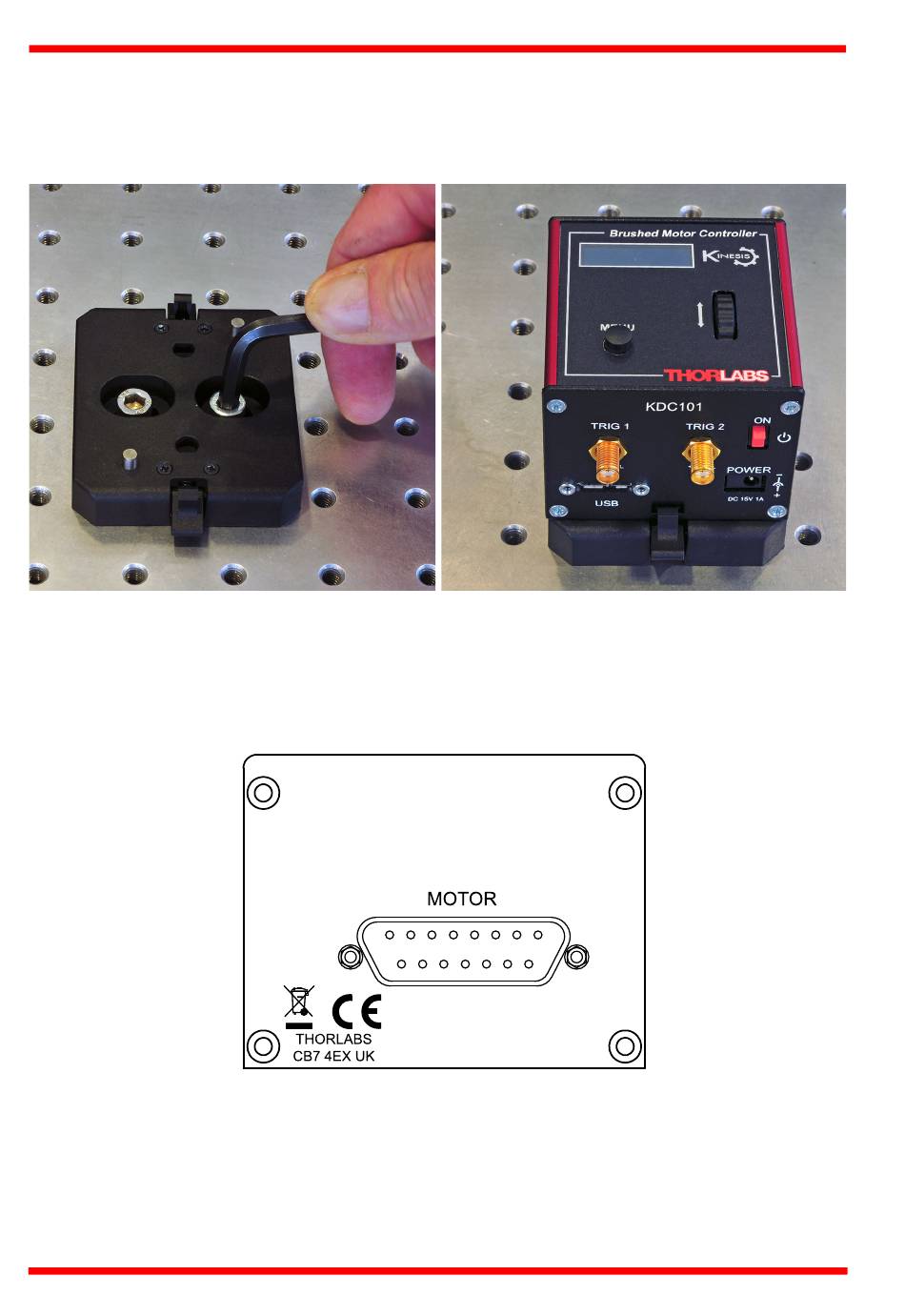

3.2.3 Using the Baseplate
The baseplate must be bolted to the worksurface before the K-Cube is fitted, as
shown below. The K-cube is then located on two dowels in the baseplate and secured
by two clips.
3.3 Electrical Installation
3.3.1 Rear Panel
The unit is supplied with a female 15 pin D-type connector as shown above, which is
compatible with the DDSM100 brushless DC driven translation stage (refer to
Appendix A
for details of pin outs).
12
Fig. 3.1 Using The Baseplate
Fig. 3.2 Rear Panel Connections
HA0364T Rev Ck Jan 2017
