Chapter 5

5.6 Jogging

During PC operation, the motor actuators are jogged using the GUI panel arrow keys.
There are two jogging modes available, 'Single Step' and 'Continuous'. In 'Single
Step' mode, the motor moves by the step size specified in the Step Distance
parameter. If the jog key is held down, single step jogging is repeated until the button
is released - see Fig. 6.3. In 'Continuous' mode, the motor actuator will accelerate and
move at the jog velocity while the button is held down.
1) On the GUI panel, click the word 'Jog'
2) Make parameter changes as required.
In current versions of software, the 'Min Vel' parameter is locked at zero
3) Click 'Apply' to save the settings and close the window, click Reset to return to the
previously saved values.
34

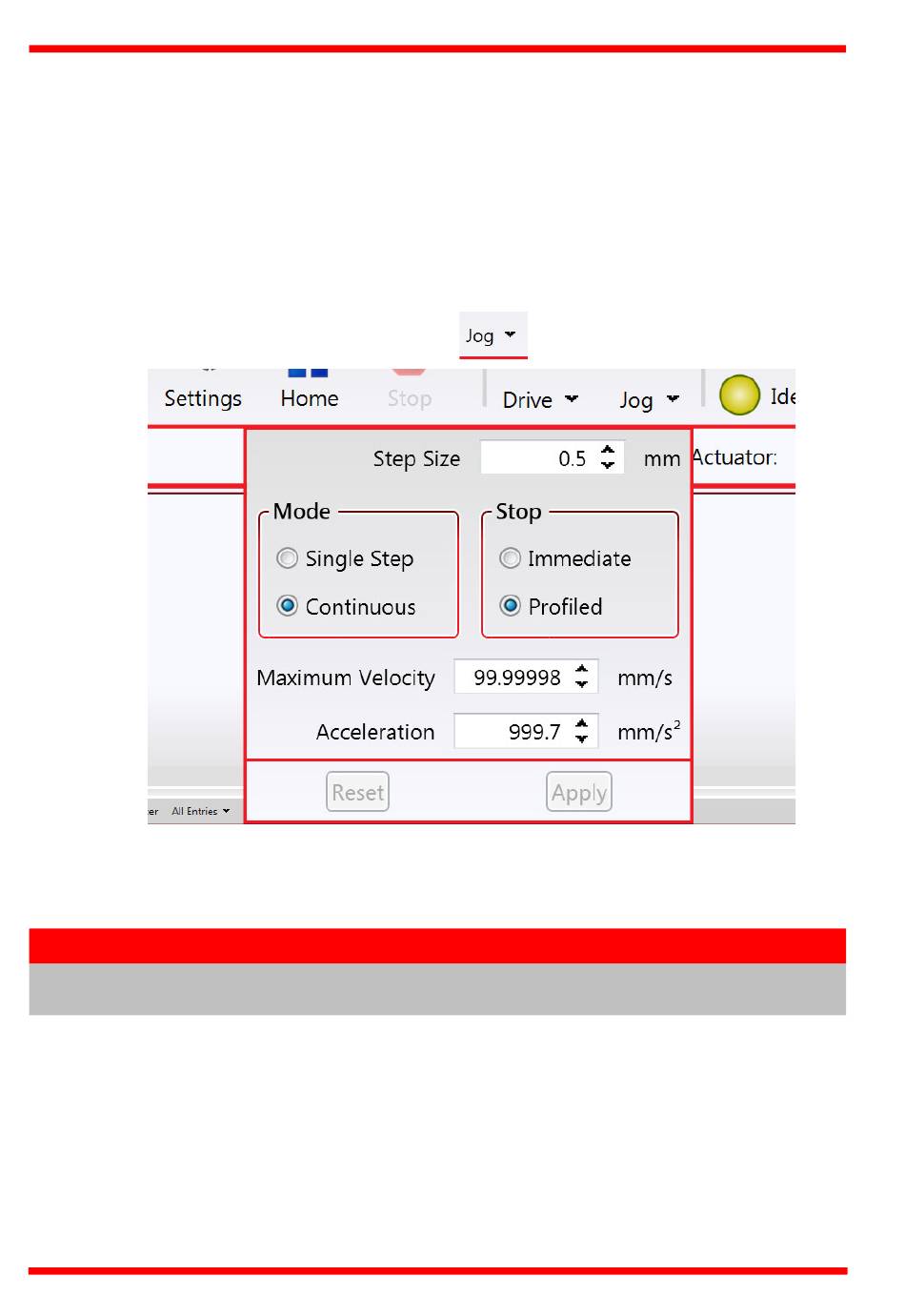

Fig. 5.4 Jog Settings Panel
Note
and cannot be adjusted.
to display the Settings panel.
HA0364T Rev Ck Jan 2017
