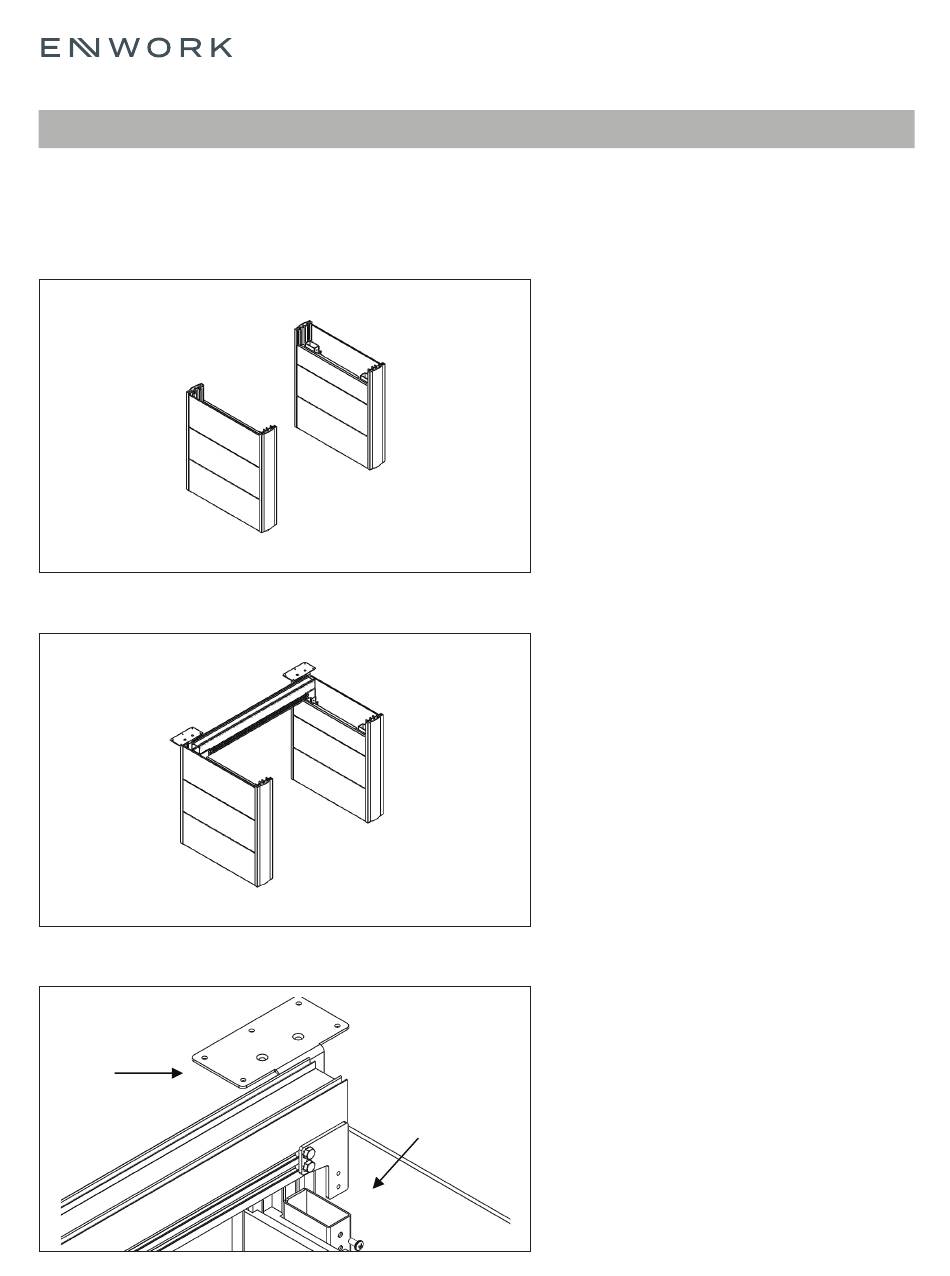

Enwork CONCURRENCE Installation Manual page 4

I N S T A L L A T I O N G U I D E
3 ) A S S E M B L Y : C O N C U R R E N C E
Table width will determine the number of required
components (End Bases, Middle Bases and Beam
Assembly (Fig 1)). Middle Bases may not be required
for all builds.
Assembly of all bases will be identical, regardless of
table width.
F I G U R E 1 : T A B L E B A S E S A S S H I P P E D
Included in your parts should be the beam assembly
shown in Figure 2. Each table uses two Beams.
Depending on the table width, the Beam may be in two
pieces for shipping purposes.
The black Flag Brackets and silver LZYPLATE Brackets
should be preassembled to the beam for you. If
necessary, loosen the hardware, adjust location, and
re-tighten.
See Figure 3 for attaching the beam to the Bases.
F I G U R E 2 : B E A M A S S E M B L Y A D D E D
Assemble the Beam Assembly into the Base
L Z Y P L A T E
Assembly. The Flag Bracket will slot into the black
steel tube in the Bases. The supplied panhead bolts
P A N H E A D
go through the tube and thread into the Flag Bracket.
B O L T S
Tighten all of these bolts on both Beams first.
F I G U R E 3 : B E A M T O B A S E C O N N E C T I O N
