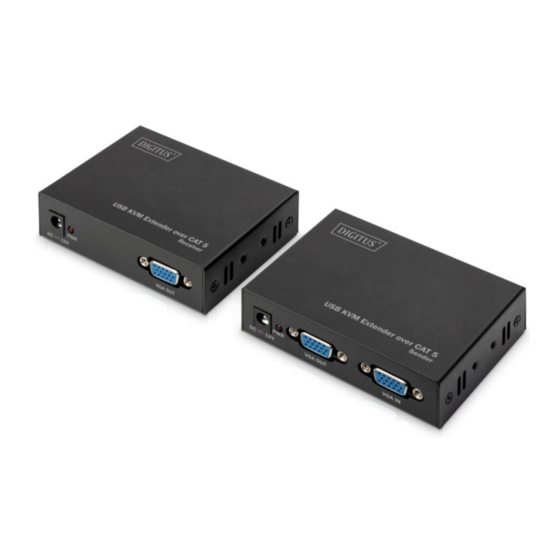

Digitus DS-51201 Manual

Usb kvm extender over cat. 5
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
USB KVM EXTENDER
OVER CAT. 5
Manual
DS-51201

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-51201 and is the answer not in the manual?

Questions and answers

Related Manuals for Digitus DS-51201

Summary of Contents for Digitus DS-51201

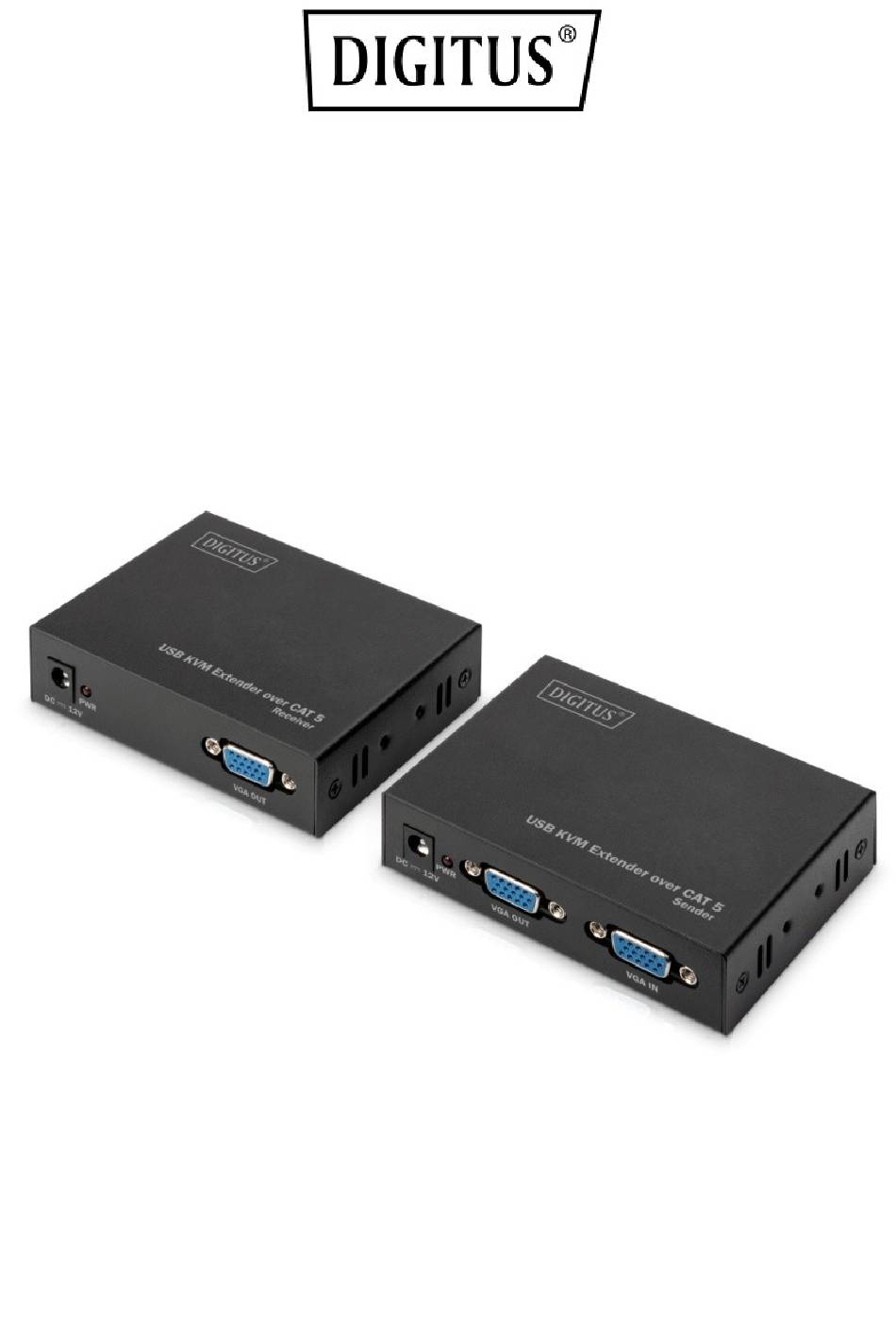

  • Page 1 USB KVM EXTENDER OVER CAT. 5 Manual DS-51201...
  • Page 2 Introduction Thank you for purchasing the USB KVM Extender over Cat.5/5e/6 This KVM extender allows you to extend the computer’s video and USB keyboard/mouse signal. Therefore, you now have a high quality and durability extension solution to control your system up to 200 meters away from your computer or KVM.

  • Page 3: Important Safety Notice

    Features 1. Extends the Keyboard / Video / Mouse signal by a Cat5/Cat5e/6 cable. 2. Dual console operation - Control your system from both the local and remote unit. 3. Supports connection of USB keyboard/mouse for local and remote console arbitrarily.

  • Page 4: Specifications

    Specifications DS-51201 MODEL NAME Transmitter Receiver VGA Output HDB-15 (Female) HDB-15 (Female) Console Connectors Keyboard USB Type A (Female) USB Type A (Female) Mouse USB Type A (Female) USB Type A (Female) HDB-15 (Female) PC Connectors Video (KB/MS) USB signal combined...

  • Page 5: Installation

    CAT5/CAT5E/CAT6 cable to connect the remote and local unit, the supported maximum length of this cable is 200 meters. (Cable not included)  VGA cable for computer video output ( Cable not included)  USB type A to type B cable connect DS-51201 TX and computer...

  • Page 6: Physical Diagram

    Physical Diagram Transmitter 1. DC power in 2. Power LED 3. VGA input 4. VGA local output 5. RJ45 connector 6. USB PC input 7. USB keyboard and mouse...
  • Page 7 Receiver 1. DC power in 2. Power LED 3. VGA output 4. RJ45 connector 5. GAIN: Adjust the contrast 6. EQ: Brightness control 7. USB keyboard and mouse...

  • Page 8: Hardware Installation

    Hardware Installation 1. Switch off all devices. 2. Connect your monitor, USB keyboard/mouse to the local unit, if you want to control your system at the local console. 3. Connect your monitor, USB keyboard/mouse to the remote unit, if you want to control your system at the remote console.
