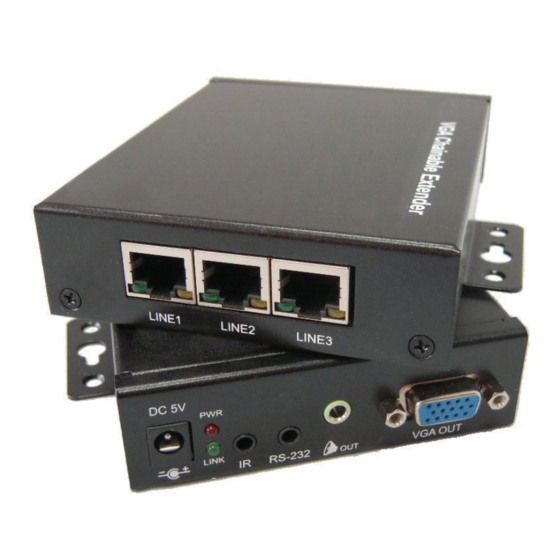

Vga over ip extender
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
VGA over IP EXTENDER
Manual
DS-53200

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-53200 and is the answer not in the manual?

Questions and answers

Related Manuals for Digitus DS-53200

Summary of Contents for Digitus DS-53200

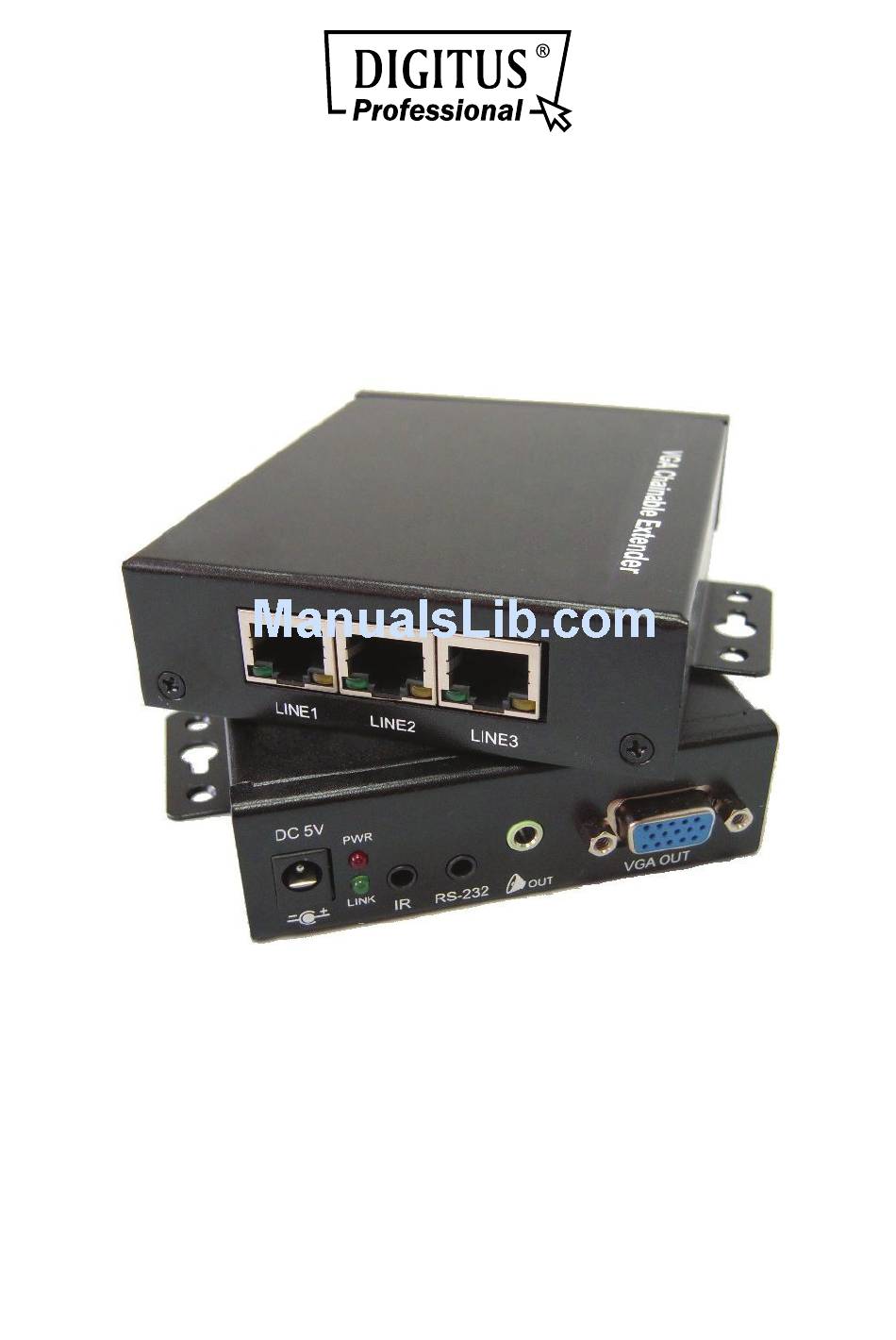

  • Page 1 VGA over IP EXTENDER Manual DS-53200...

  • Page 2: Package Contents

    1. Introduction Thanks for purchasing the DS-53200 VGA over IP Extender. We recommend that you read this manual thoroughly and retain for future reference. 1.1 Features The VGA over IP Extender allows you to extend video and audio up to 100 meters distance between source or computer and monitor or projector.

  • Page 3: Specifications

    2. Specifications: 2.1 General Transmitter Receiver VGA Output VGA (Female) VGA (Female) Console RS-232 Control Connectors Phone Jack Phone Jack Port VGA Input VGA (Male) Connectors Extension Full HD Video / Audio Extension RJ-45 Port 1 (Line Out) 3 (1 Line In & 2 Line Out) RJ-45 Cascaded-Chainable Up to 10 layers...

  • Page 4: Connectors Diagram

    3. Connectors Diagram 3.1 Configuration Pictures Transmitter (TX) – Front View Transmitter (TX) – Rear View   : Power adapter DC 5V : Audio-out port   : Power LED (Solid Red when power present) : Local VGA monitoring ...

  • Page 5: Application Diagram

    Application Diagram Transmitter (TX) Installation  Please use CAT.5e/6 cable to get the best quality to connect to the LINE port (RJ45) of Transmitter  Connect the IR Blaster Emitter cable or RS-232 to 3.5mm adapter to the Transmitter Unit IR Port or RS-232 port if necessary ...
  • Page 6 Receiver (RX) Installation  Please use CAT.5e/6 cable to get the best quality to connect to the LINE1 or LINE2 or LINE3 port (RJ45) of Receiver  Connect the IR Receiver cable or RS-232 to 3.5mm adapter to the Receiver Unit IR Port or RS-232 port if necessary ...
  • Page 7 Each Receiver with three Line port, one is used for source input; others are used for expanding source to other receivers. User can choose any LINE port as source input random and use the other two LINE port for expanding source to next tier receiver as long as the LINE port is not occupied.

  • Page 8: Connection Diagram

    3.2 Connection Diagram (1) Single Source Extension (2) Single Source Extension and Receivers Cascade Chaining (3) Single Source with Multiple Receivers Cascaded VGA Cable...
  • Page 9 Cascaded and mixed with VGA / HDMI / DisplayPort VGA Out IR Bypass function connection  Connect the IR Transmitter (or Emitter) cable to the IR Connector on the Transmitter (TX)  Connect the IR Receiver cable to the IR Connector on the Receiver (RX) ...
  • Page 10 3.3 RS-232 Bypass function connection Connect the device, such as a PC, projector…etc, to the RS-232 port of the Transmitter or  Receiver via a RS-232 to 3.5mm adatper Connect the controlling device to the RS-232 port of the Receiver or Receiver via a RS-232 ...
