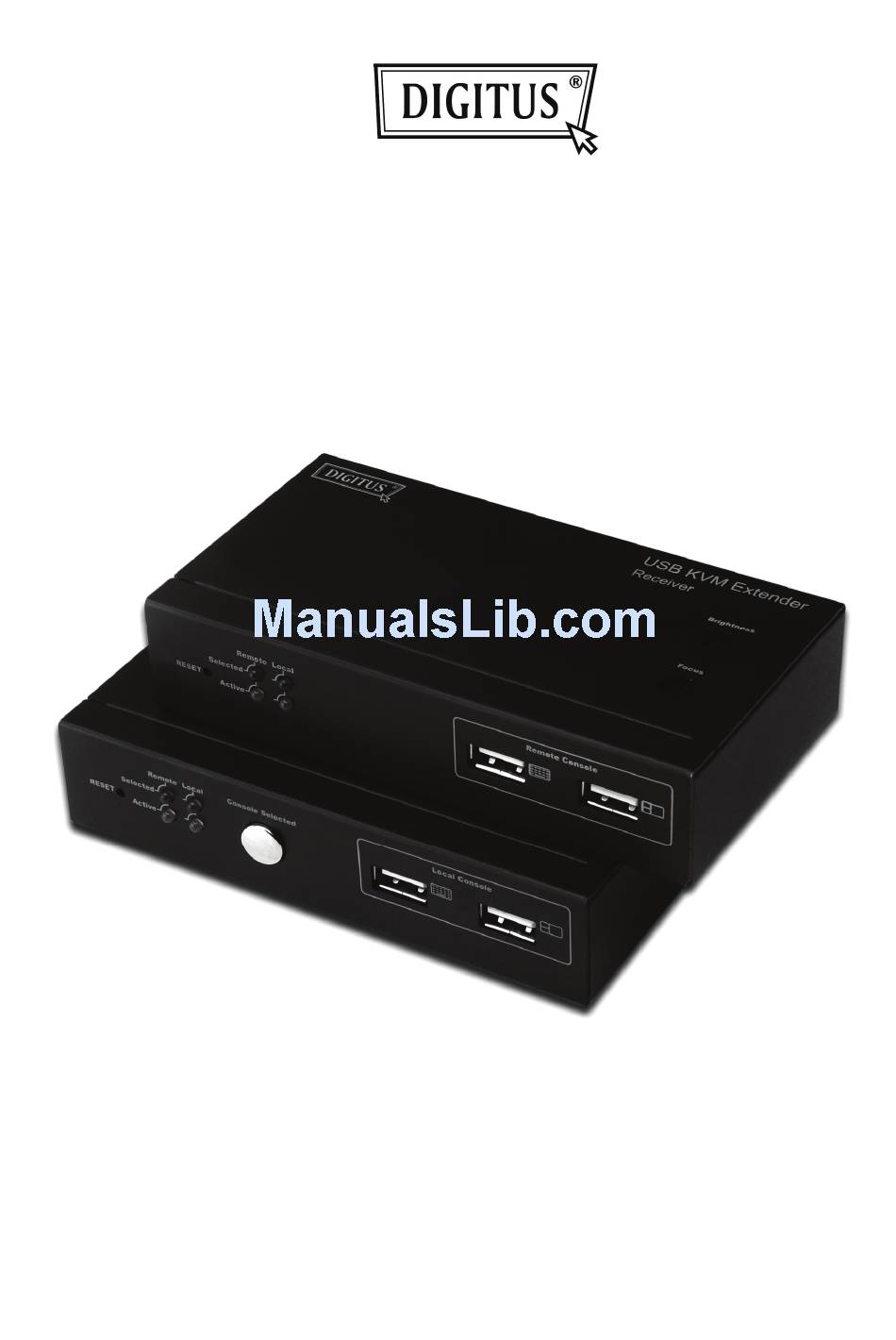

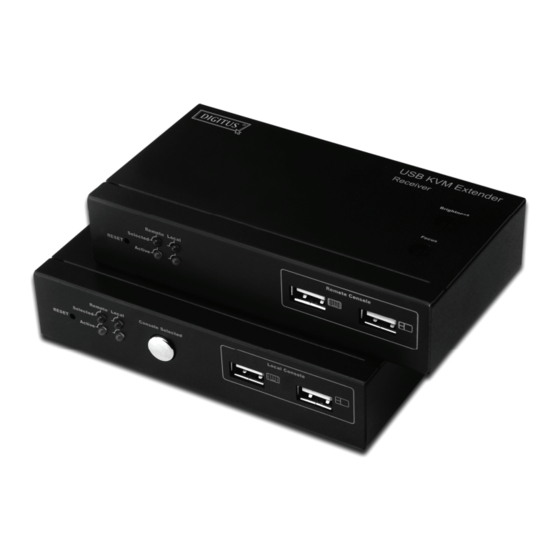

- Page 1 USB KVM Extender Quick Installation Guide DS-51200...
-
Page 2: System Requirements
System Requirements Console 1 A VGA, SVGA, Multisync monitor capable of the highest resolution 2 USB keyboard/mouse Computer 1 A VGA, SVGA or multisync card 2 Type A USB port or PS/2 6-pin mini-DIN for keyboard and mouse 3 Operating systems: Windows 98/98SE/2000/ME/XP/Vista/7/2003 server, Mac OS9/OSX, Linux Kernel 2.3 or later, Solaris 8 or later, Sun Micro OS ... - Page 3 Operations Active console selection by Push Button You can press the push button on the local unit (transmitter) to change the active console operation. There are three different types of active console configurations: Local Console Only You can operate the system only from the local unit (transmitter) Remote Console Only You can operate the system only from the remote unit (receiver) Both Consoles (Local + Remote)
-
Page 4: Led Indicators
LED Indicators The LED indicators of the remote console are the same as of the local, if both units are connected successfully; or all LED indicators at remote console will turn OFF. Selected Indicators (RED) Both Selected: Indicates that you can control your system from both the local and remote console ... - Page 5 Examples of LED Indicators: Both consoles are selected; local active is ON, remote active is OFF: It means that the connection between the local unit and the computer is ready, but that the CATx cable connection between the local and remote unit is not ready.
