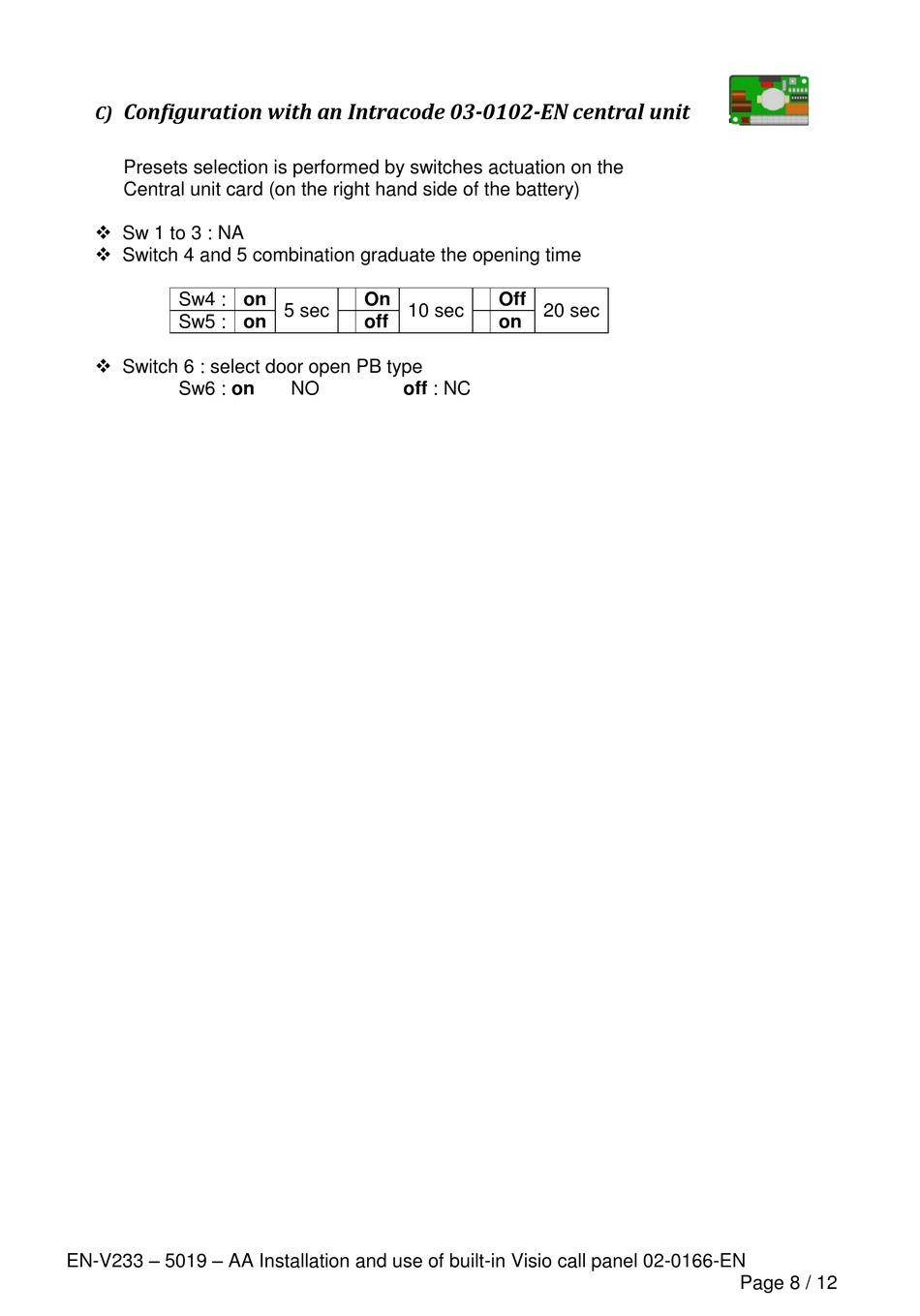

Configuration with an Intracode 03-0102-EN central unit
C)
Presets selection is performed by switches actuation on the
Central unit card (on the right hand side of the battery)
 Sw 1 to 3 : NA
 Switch 4 and 5 combination graduate the opening time
Sw4 : on
Sw5 : on
 Switch 6 : select door open PB type
Sw6 : on
EN-V233 – 5019 – AA Installation and use of built-in Visio call panel 02-0166-EN
On
5 sec 10 sec
off
NO off : NC
Off
20 sec
on
