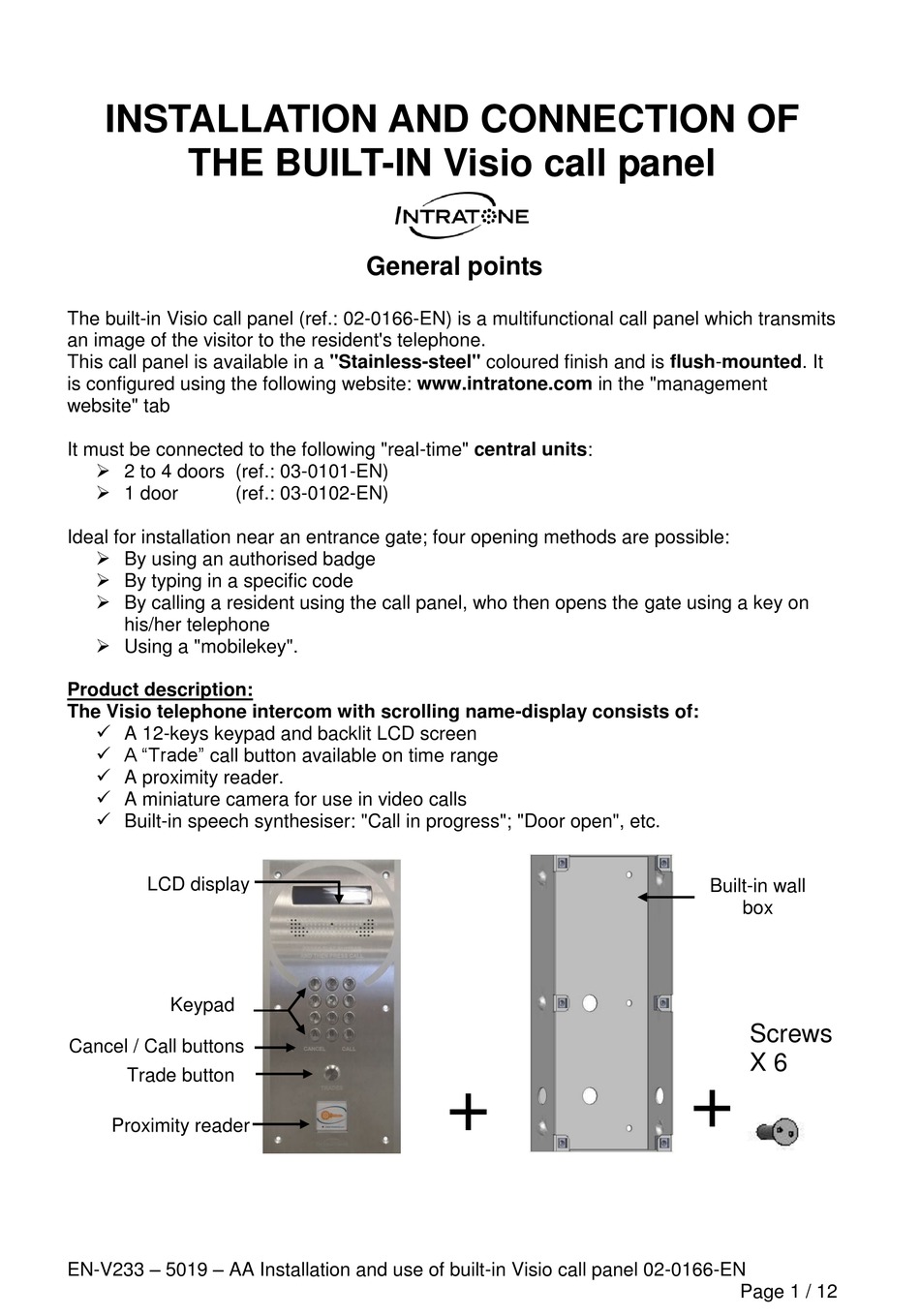

INSTALLATION AND CONNECTION OF
THE BUILT-IN Visio call panel
The built-in Visio call panel (ref.: 02-0166-EN) is a multifunctional call panel which transmits
an image of the visitor to the resident's telephone.
This call panel is available in a "Stainless-steel" coloured finish and is flush-mounted. It
is configured using the following website: www.intratone.com in the "management
website" tab
It must be connected to the following "real-time" central units:
 2 to 4 doors (ref.: 03-0101-EN)
 1 door
(ref.: 03-0102-EN)
Ideal for installation near an entrance gate; four opening methods are possible:
 By using an authorised badge
 By typing in a specific code
 By calling a resident using the call panel, who then opens the gate using a key on
his/her telephone
 Using a "mobilekey".
Product description:
The Visio telephone intercom with scrolling name-display consists of:
 A 12-keys keypad and backlit LCD screen
 A "Trade" call button available on time range
 A proximity reader.
 A miniature camera for use in video calls
 Built-in speech synthesiser: "Call in progress"; "Door open", etc.
LCD display
Keypad
Cancel / Call buttons
Trade button
Proximity reader
EN-V233 – 5019 – AA Installation and use of built-in Visio call panel 02-0166-EN

General points

+
Built-in wall
box
Screws
X 6
+
Page 1 / 12

Advertisement

Table of Contents
loading

Related Manuals for Intratone Visio 02-0166-EN

Summary of Contents for Intratone Visio 02-0166-EN

  • Page 1: General Points

    This call panel is available in a "Stainless-steel" coloured finish and is flush-mounted. It is configured using the following website: www.intratone.com in the "management website" tab It must be connected to the following "real-time" central units: ...

  • Page 2: Table Of Contents

    Contents GENERAL POINTS ----------------------------------------- 1 CONTENTS --------------------------------------------------- 2 DIMENSIONS AND ASSEMBLY ------------------------ 3 --------------------------------------------------------- 3 IMENSIONS OF CALL PANEL ------------------------------------------------------------ 4 UILT IN BOX DIMENSIONS WIRING -------------------------------------------------------- 5 ---------------------------------------------------------------------- 5 ENERAL POINTS AUDIO ------------------------------------------------------------- 5 CALLS ONLY VIDEO -------------------------------------------------------------------- 5 CALLS CENARIO OF CONNECTING AN ENTRANCE GATE WITH THE TYPES OF...

  • Page 3: Dimensions And Assembly

    Dimensions and assembly Dimensions of call panel EN-V233 – 5019 – AA Installation and use of built-in Visio call panel 02-0166-EN Page 3 / 12...

  • Page 4: B) Built-In Box Dimensions

    Built-in box dimensions EN-V233 – 5019 – AA Installation and use of built-in Visio call panel 02-0166-EN Page 4 / 12...

  • Page 5: Wiring

    WIRING See 03-0102-EN guide : V233 - 5002 - XX See 03-0101-EN guide: V233-5001-XX Power supply: 12 / 24 V – 2 to 4 A Not supplied FLUSH-FIT VISIO PANEL FLUSH-FIT VISIO PANEL 17-0101 17-0101 03-0102-EN 03-0101-EN + - D+ D- + - D+ D- A+A- General points...

  • Page 6: D) Scenario Of Connecting An Entrance Gate With The Central Units

    Scenario of connecting an entrance gate with the 2 types of central units Connections in red refer to video (V+ / V-) Connections in black refer to (+ / - and D+ / D- and A+ / A-) Kit ref : 02-0167-EN Kit ref : 02-0168-EN Scenario of connecting an entrance gate plus a building It is mandatory to use an 03-0101-EN central unit with, in this example, an extension board.

  • Page 7: Equipment Configuration

    Equipment configuration General points INTRATONE call panels are mainly configured on the www.intratone.com website in the "management website" tab. Nevertheless, some settings can be changed on-site: - Configuration of the push button. - Configuration of the door-opening time. - Panel sound volume...

  • Page 8: C) Configuration With An Post-Fitting Check

    Configuration with an Intracode 03-0102-EN central unit Presets selection is performed by switches actuation on the Central unit card (on the right hand side of the battery)  Sw 1 to 3 : NA  Switch 4 and 5 combination graduate the opening time Sw4 : on 5 sec 10 sec...

  • Page 9: A) On The Panel

    Post-fitting check Before leaving the fitting, the following points should be checked: On the Panel  Display shows the welcome message  Check that the keypad keys (0, 1, 2 9 ) are working. Procedure: o Press any key to display it o “cancel”...

  • Page 10: Diagnosis In The Event Of A Fault

    diagnosis in the event of a fault What is causing the What is the fault? How to fix the fault! fault? Message on the display: Incorrect cabling on the - Check cabling between the 3G « Communication error» D+ and/or D- terminals unit, the call panel and the central unit: D+ and or D-.

  • Page 11: Certificate Of Conformity

    CERTIFICATE OF CONFORMITY Standards: EC standards: The central unit complies with the R&TTE Directive 1999/5/EC: electrical safety standard EN 60950(2001) applied, EMC standard EN 301 489-3 (2002) applied, radio standard EN 300 330-2 (2001) applied The central unit complies with the telephone network standards TS-103 021 and TR- 103 000.

  • Page 12: B) Certificate

    Certificate: EN-V233 – 5019 – AA Installation and use of built-in Visio call panel 02-0166-EN Page 12 / 12...
