Wiring; A) General Points; B) For Audio Calls Only; C) For Video Calls - Intratone Visio 02-0166-EN Installation And Connection

See 03-0102-EN guide : V233 - 5002 - XX
FLUSH-FIT VISIO PANEL
+
-
D+
A+
D-
A-
03-0102-EN
General points
A)
POWER SUPPLY : The central unit supplies power to the call panel via the + / - terminals.
: Twisted pairs – Diameter: 0.8 – Max. distance 100 metres.
CABLING
Important note:
- The video function will only work if the call panel is installed with a 3G or 3GIP unit.
For AUDIO calls only
B)
Connect the following terminals up to the central unit:
Terminal
+ / - Power supply
D-+ / D-
A+ / A-
For VIDEO calls
C)
Also connect the following terminals up to the V+ / V- (VIDEO 1) terminals on the
3G OR 3GIP unit:
Terminal
V+ / V-
EN-V233 – 5019 – AA Installation and use of built-in Visio call panel 02-0166-EN

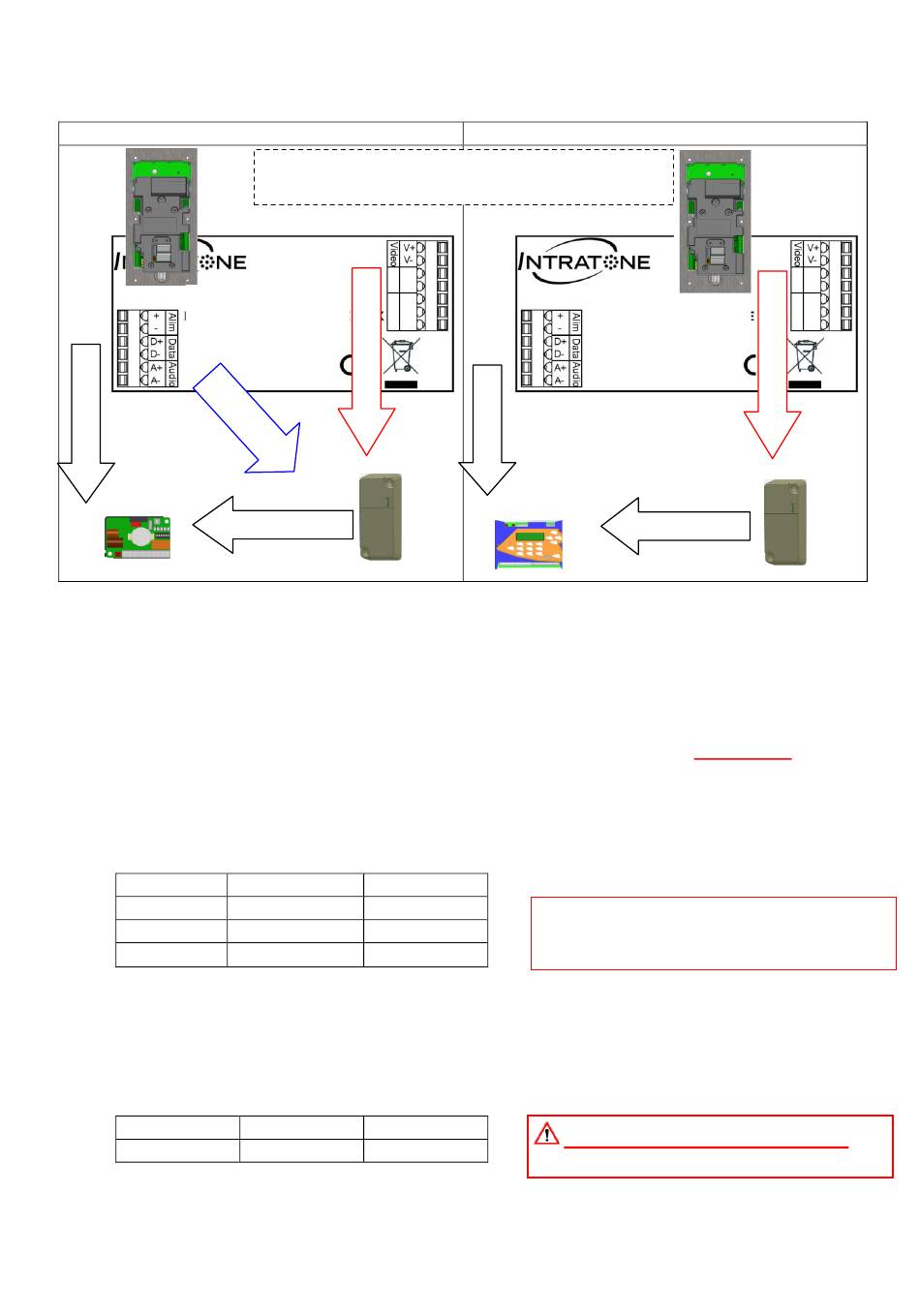

WIRING

Power supply: 12 / 24 V – 2 to 4 A
Not supplied
V+
V-
17-0101
+ - D+ D-
Detail Pair Qty
1
Data 1
Audio 1
Detail Pair Qty
Video 1
See 03-0101-EN guide: V233-5001-XX
FLUSH-FIT VISIO PANEL
+
-
D+
D-
A+
A-
03-0101-EN
+ - D+ D-
Twisted pair
Twisted pair
V+
V-
17-0101
A+A-
recommended
MANDATORY
for video
Page 5 / 12
