INSTALLATION AND CONNECTION OF
THE BUILT-IN VISIO CALL PANEL

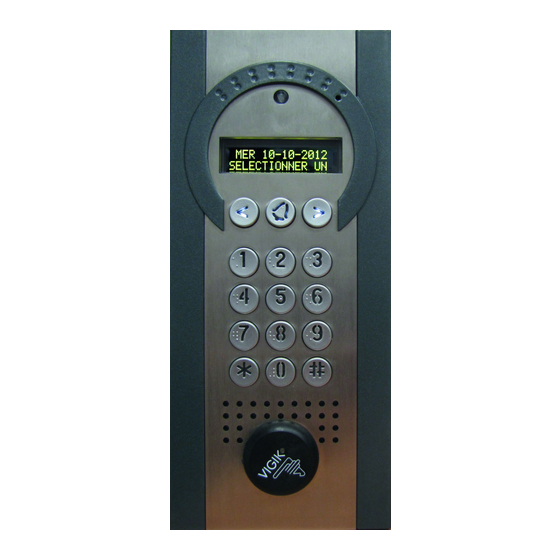

The built-in Visio call panel (ref.: EEN-PIVIV3GB) a multifunctional call panel which
transmits an image of the visitor to the tenant's telephone.
This call panel is available in a "Stainless-steel" coloured finish and is flush-mounted. It is
configured using the following website: www.intratone.com in the "management
website" tab
It must be connected to the following "real-time" central units:
2 to 4 doors (ref.: EEN-CEN12)
1 door
Ideal for installation near an entrance gate; four opening methods are possible:
By using an authorised fob
By typing in a specific trade code
By calling a tenant using the call panel, who then opens the door using a key on
his/her telephone.
Using a "mobilekey".
You can select the tenant to call just by entering his/her flat number on the keypad or by
pressing the arrows.
Product description:
The Visio intercom with scrolling name-display consists of:
A 12-key keypad and backlit LCD screen
Two scrolling keys and one call button
A square proximity reader.
A miniature camera for use in video calls
Built-in speech synthesiser: "Call in progress"; "Door open", etc.
LCD display
Scrolling keys
Call buttons
Keys on Keypad
Cancel key
Proximity reader
EN-V233 – 5005 – AA Installation and use of built-in Visio call panel EEN-PIVIV3GB

GENERAL POINTS

(ref.: EEN- CIC12)
Trade key
+
Built-in wall
box
Screws
X 6
+
Page 1 / 12
