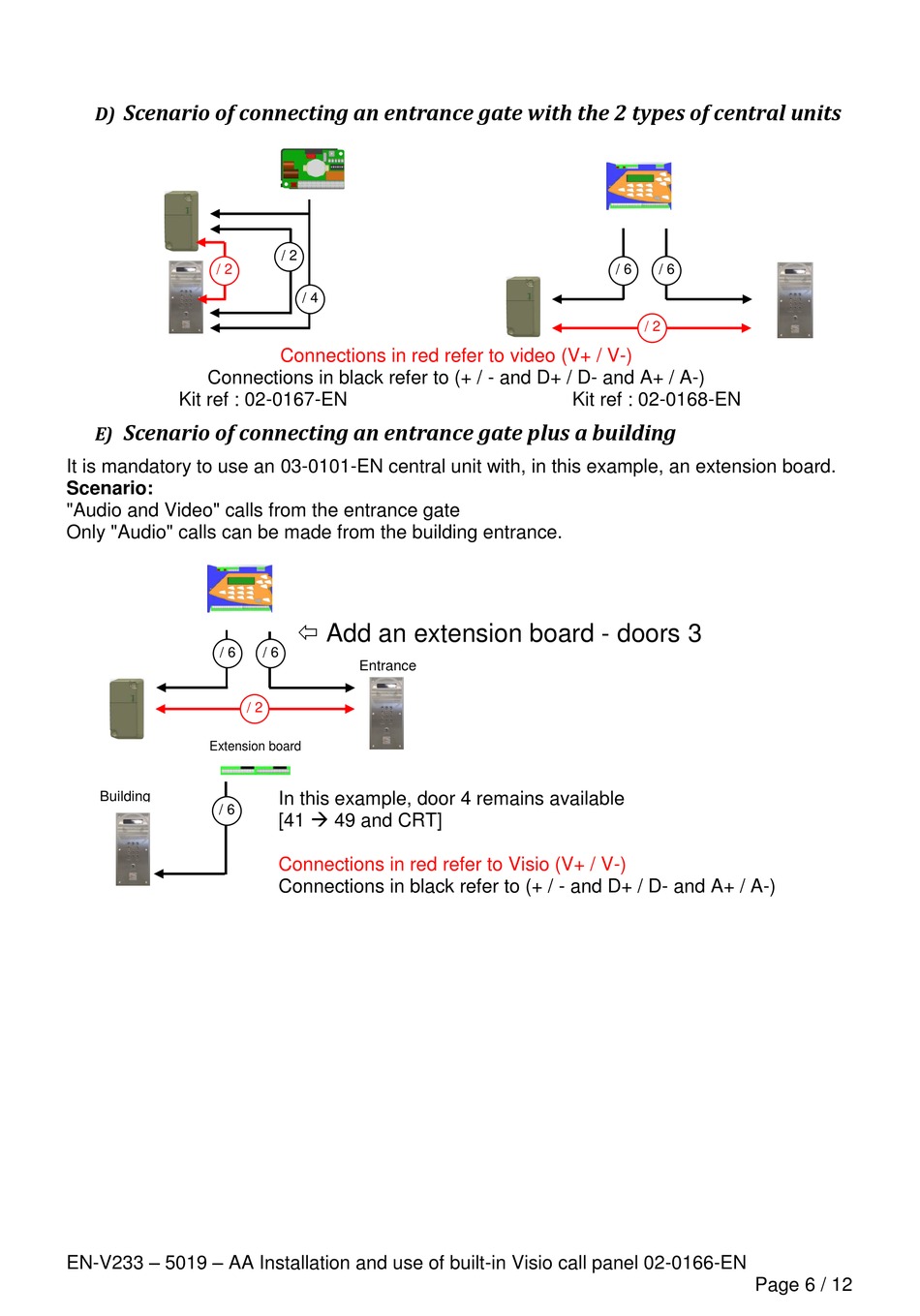

Scenario of connecting an entrance gate with the 2 types of central units
D)
/ 2
Connections in black refer to (+ / - and D+ / D- and A+ / A-)
Kit ref : 02-0167-EN
Scenario of connecting an entrance gate plus a building
E)
It is mandatory to use an 03-0101-EN central unit with, in this example, an extension board.
Scenario:
"Audio and Video" calls from the entrance gate
Only "Audio" calls can be made from the building entrance.
/ 6
Extension board
Building
/ 6
EN-V233 – 5019 – AA Installation and use of built-in Visio call panel 02-0166-EN
/ 2
/ 4
Connections in red refer to video (V+ / V-)
 Add an extension board - doors 3
/ 6
and 4
Entrance
gate
/ 2
In this example, door 4 remains available
[41  49 and CRT]
Connections in red refer to Visio (V+ / V-)
Connections in black refer to (+ / - and D+ / D- and A+ / A-)
/ 6 / 6
/ 2
Kit ref : 02-0168-EN
Page 6 / 12
