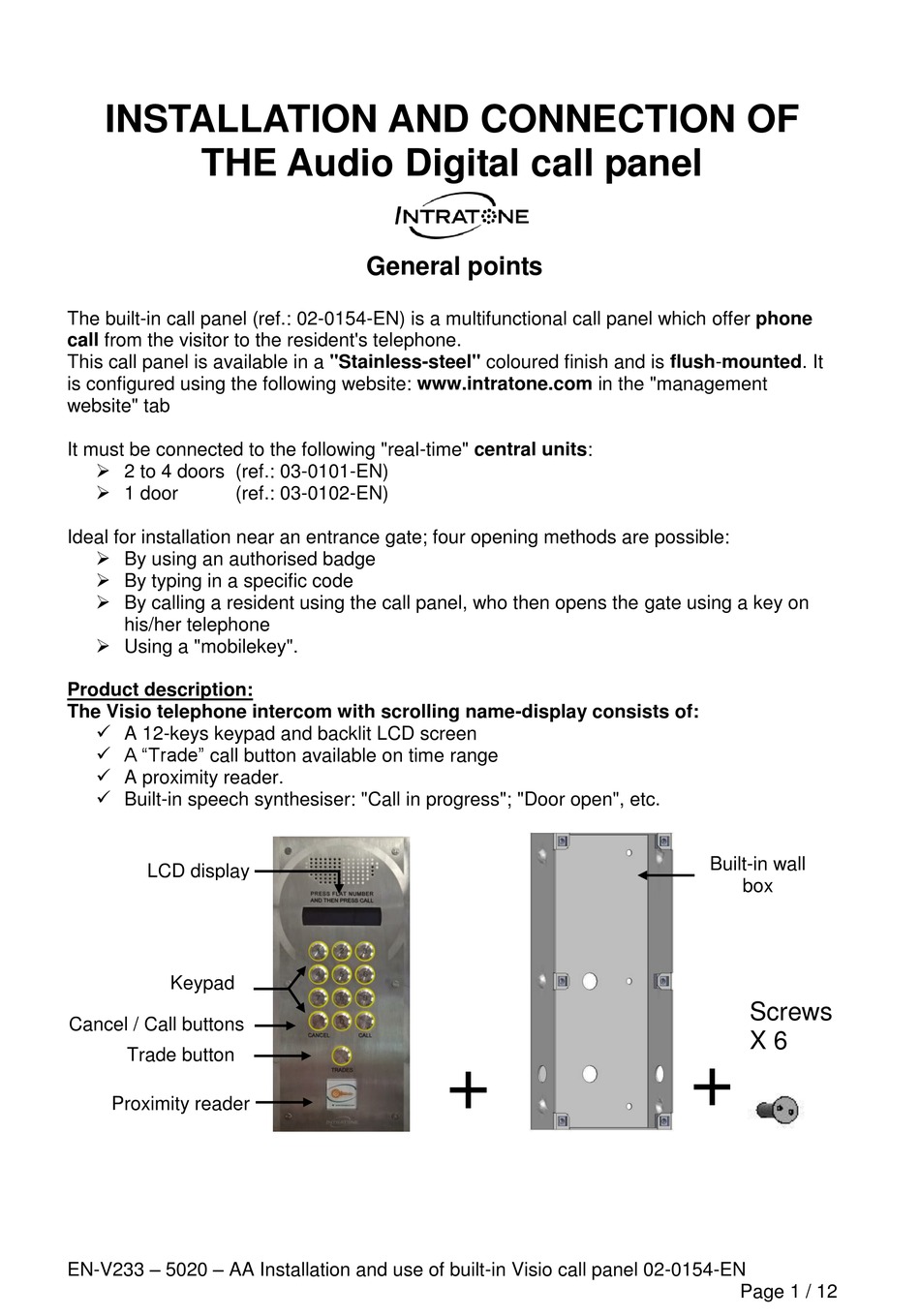

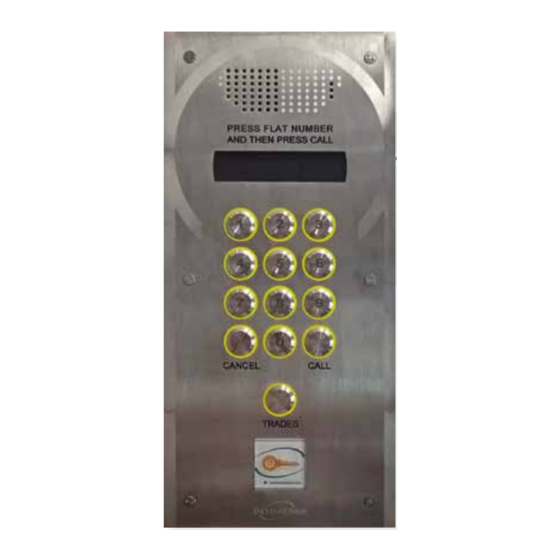

THE Audio Digital call panel General points The built-in call panel (ref.: 02-0154-EN) is a multifunctional call panel which offer phone call from the visitor to the resident's telephone. This call panel is available in a "Stainless-steel" coloured finish and is flush-mounted. It is configured using the following website: www.intratone.com in the "management...
DIAGNOSIS IN THE EVENT OF A FAULT --------- 10 CERTIFICATE OF CONFORMITY -------------------- 11 : -------------------------------------------------------------------------- 11 TANDARDS : ------------------------------------------------------------------------- 12 ERTIFICATE EN-V233 – 5020 – AA Installation and use of built-in Visio call panel 02-0154-EN Page 2 / 12...
Connect the following terminals up to the central unit: Terminal Detail Pair Qty + / - Power supply D-+ / D- Data recommended Twisted pair A+ / A- Audio EN-V233 – 5020 – AA Installation and use of built-in Visio call panel 02-0154-EN Page 5 / 12...
In this example, door 4 remains available [41 49 and CRT] Connections in black refer to (+ / - and D+ / D- and A+ / A-) EN-V233 – 5020 – AA Installation and use of built-in Visio call panel 02-0154-EN Page 6 / 12...
Key V to Validate Request Check fitting (NA) Test number: (NA) Not available Not available EN-V233 – 5020 – AA Installation and use of built-in Visio call panel 02-0154-EN Page 7 / 12...
10 sec 20 sec Sw5 : on Switch 6 : select door open PB type Sw6 : on off : NC EN-V233 – 5020 – AA Installation and use of built-in Visio call panel 02-0154-EN Page 8 / 12...
In the case of a fitting with an 03-0102-EN central unit The serial number (7XXXXXX3) of the central unit will be used on the website to configured the installation. EN-V233 – 5020 – AA Installation and use of built-in Visio call panel 02-0154-EN Page 9 / 12...
"Unable to call" with no dial available and LED levels tone Contact our technical support department (+33 (0)251 655 529) EN-V233 – 5020 – AA Installation and use of built-in Visio call panel 02-0154-EN Page 10 / 12...
The panel and its accessories must not be disposed of with unsorted municipal waste but must be follow the WEEE (Waste Electrical and Electronic Equipment Directive) collection and recycling channel. EN-V233 – 5020 – AA Installation and use of built-in Visio call panel 02-0154-EN Page 11 / 12...
