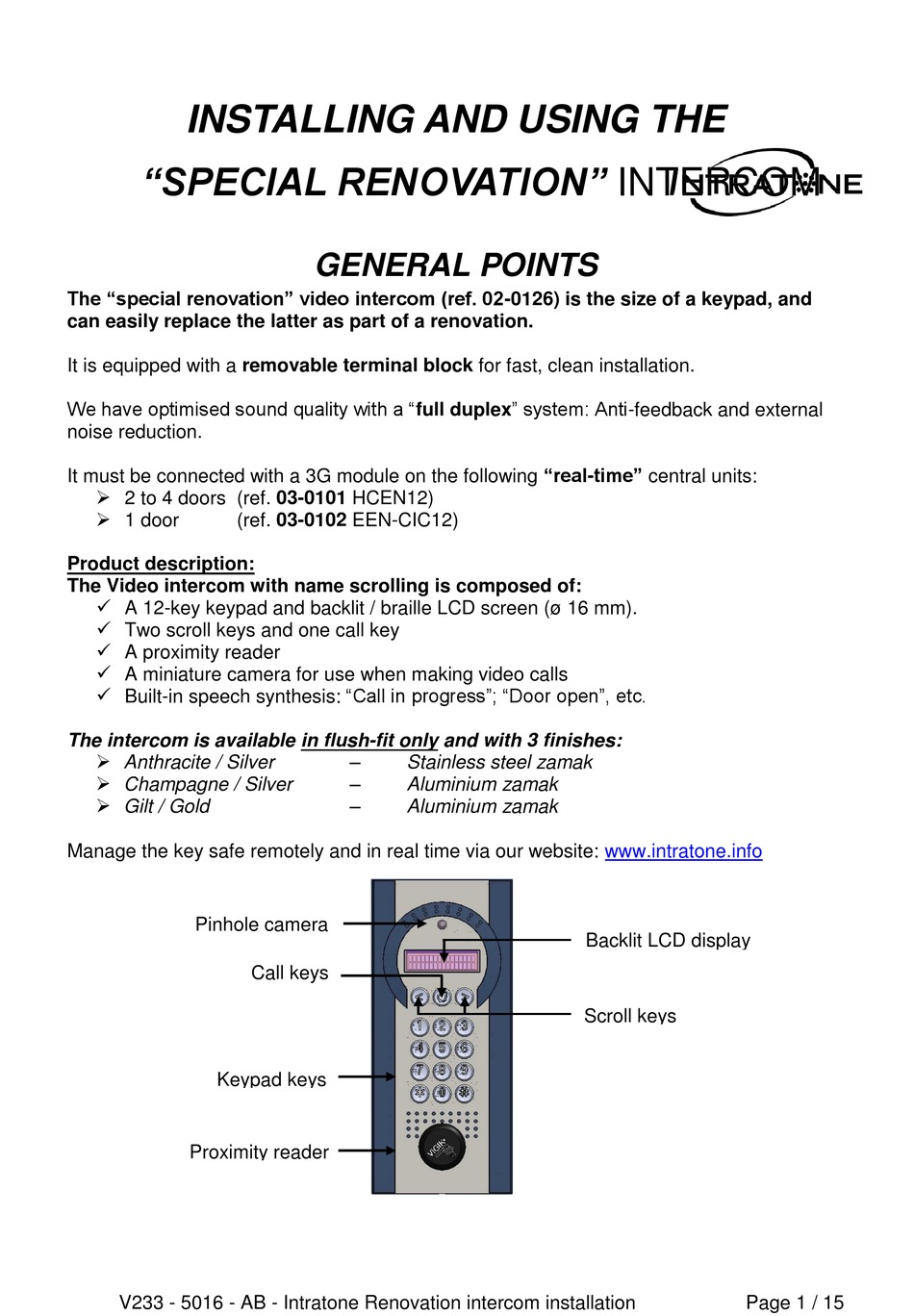

INSTALLING AND USING THE
"SPECIAL RENOVATION" INTERCOM
The "special renovation" video intercom (ref. 02-0126) is the size of a keypad, and
can easily replace the latter as part of a renovation.
It is equipped with a removable terminal block for fast, clean installation.
We have optimised sound quality with a "full duplex" system: Anti-feedback and external
noise reduction.
It must be connected with a 3G module on the following "real-time" central units:
2 to 4 doors (ref. 03-0101 HCEN12)
1 door
(ref. 03-0102 EEN-CIC12)
Product description:
The Video intercom with name scrolling is composed of:
A 12-key keypad and backlit / braille LCD screen (ø 16 mm).
Two scroll keys and one call key
A proximity reader
A miniature camera for use when making video calls
Built-in speech synthesis: "Call in progress"; "Door open", etc.
The intercom is available in flush-fit only and with 3 finishes:
Anthracite / Silver
Champagne / Silver
Gilt / Gold
Manage the key safe remotely and in real time via our website:
Pinhole camera
Keypad keys
Proximity reader
V233 - 5016 - AB - Intratone Renovation intercom installation
GENERAL POINTS
–
Stainless steel zamak
–
Aluminium zamak
–
Aluminium zamak
Call keys
www.intratone.info
Backlit LCD display
Scroll keys
Page 1 / 15
Advertisement
Table of Contents
Related Manuals for Intratone SPECIAL RENOVATION
Summary of Contents for Intratone SPECIAL RENOVATION
-
Page 1: General Points
“SPECIAL RENOVATION” INTERCOM GENERAL POINTS The “special renovation” video intercom (ref. 02-0126) is the size of a keypad, and can easily replace the latter as part of a renovation. It is equipped with a removable terminal block for fast, clean installation. -
Page 2: Table Of Contents
ONNECTION TO THE DOOR ---------------------------------------------------------------------------------- 11 ALLS ----------------------------------------------------- 11 MODULE RECEPTION LEVEL TROUBLESHOOTING ----------------------------------- 12 CERTIFICATE OF CONFORMITY -------------------- 13 : -------------------------------------------------------------------------- 13 TANDARDS ------------------------------------------------------------------------ 14 ERTIFICATES V233 - 5016 - AB - Intratone Renovation intercom installation Page 2 / 15... -
Page 3: Dimensions And Fitting
DIMENSIONS AND FITTING A) D IMENSIONS V233 - 5016 - AB - Intratone Renovation intercom installation Page 3 / 15... -
Page 4: B) Built - In Wall Box Dimensions
B) B UILT IN WALL BOX DIMENSIONS V233 - 5016 - AB - Intratone Renovation intercom installation Page 4 / 15... -
Page 5: C) Fitting
C) F ITTING V233 - 5016 - AB - Intratone Renovation intercom installation Page 5 / 15... -
Page 6: Wiring
UNIT GUIDE. to the lock Magnet lock Relay protection varistor ESSENTIAL IN THE CASE OF CABLING THE DOOR / PUSH BUTTON TO THE INTERCOM CABLING ESSENTIAL V233 - 5016 - AB - Intratone Renovation intercom installation Page 6 / 15... -
Page 7: C) Connecting Intratone Equipment
- Twisted pair 0.8mm - 100 metres max. between each item - Power supply next to the central unit Power supply See central unit guide V231-5001 EEN-CEN12G V233 - 5016 - AB - Intratone Renovation intercom installation Page 7 / 15... -
Page 8: Installation Scenarios
In this example door 4 remains available [ 41 49 and CRT] The red connection represents Video (V+ / V-) The black connection represents +/- , D+/D- and A+/A- V233 - 5016 - AB - Intratone Renovation intercom installation Page 8 / 15... -
Page 9: Equipment Configuration
This procedure is valid during the 15 minutes of the counter. To exit this procedure, wait until the end of the counter or quit the “Intercom adjustment” menu. V233 - 5016 - AB - Intratone Renovation intercom installation Page 9 / 15... - Page 10 Start test procedure Warning: the door settings menu only appears when switches 4 / 5 / 6 of central unit 03-0102 are positioned at OFF. V233 - 5016 - AB - Intratone Renovation intercom installation Page 10 / 15...
-
Page 11: Post-Installation Check
: indicates the level out of 30 (here / 30) and the corresponding ratio out of 5 (here / 5) Press one of the arrows to quit this menu. V233 - 5016 - AB - Intratone Renovation intercom installation Page 11 / 15... -
Page 12: Troubleshooting
- The unit is not a 3G module - The telephone is not a Video telephone Contact our technical services (02 51 65 51 84) V233 - 5016 - AB - Intratone Renovation intercom installation Page 12 / 15... -
Page 13: Certificate Of Conformity
The intercom and its accessories must not be discarded with unsorted municipal waste, but must be disposed of via the WEEE (Waste Electrical and Electronic Equipment) collection and recycling system V233 - 5016 - AB - Intratone Renovation intercom installation Page 13 / 15... -
Page 14: B) Certificates
B) C ERTIFICATES V233 - 5016 - AB - Intratone Renovation intercom installation Page 14 / 15... - Page 15 V233 - 5016 - AB - Intratone Renovation intercom installation Page 15 / 15...
