7. Position the bracket under the tray cover and install the four screws that secure the drive

bracket to the tray cover; refer to Figure 1-14.

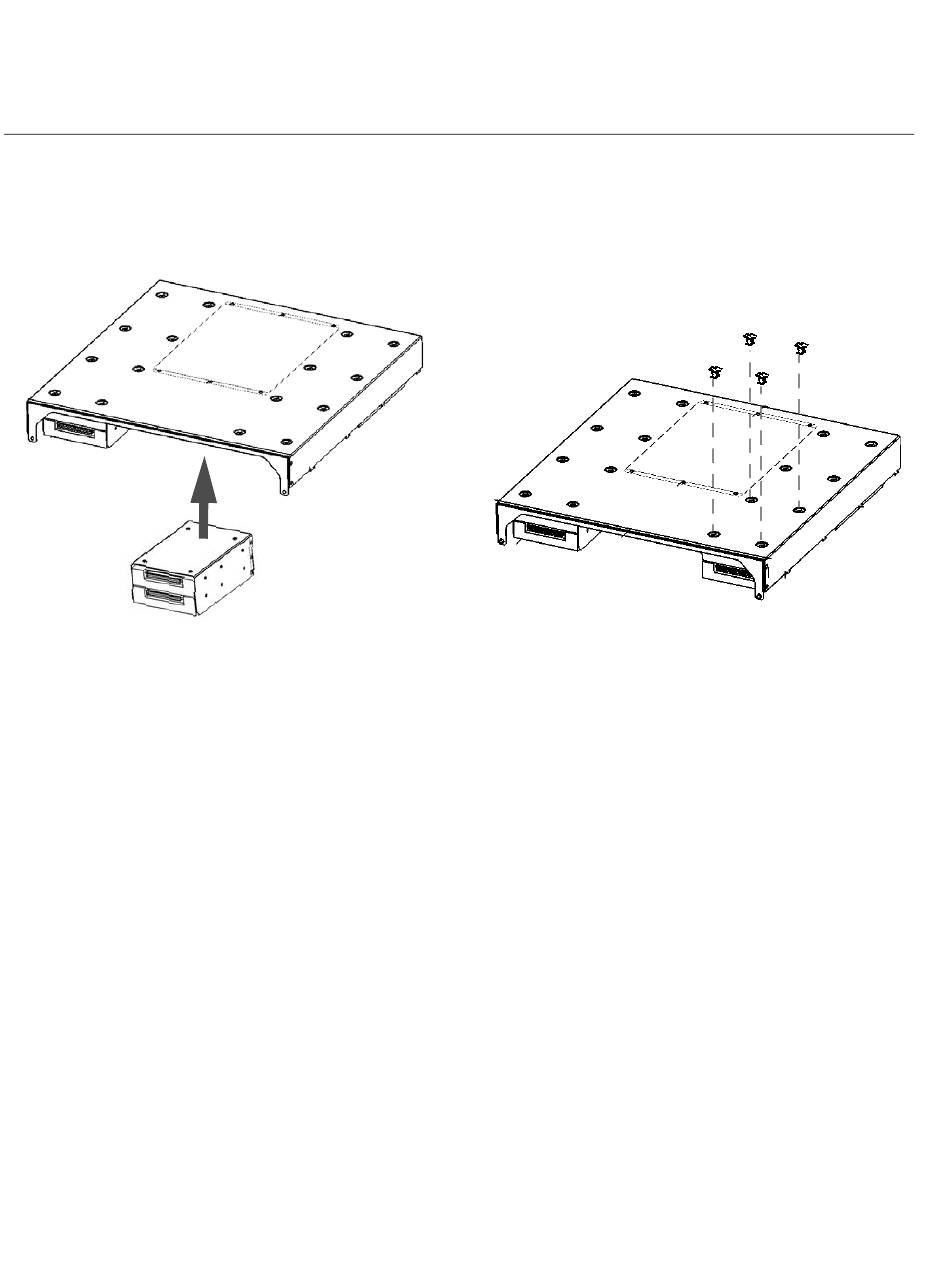

Figure 1-14

Securing the Drive Bracket to the Tray Cover

8. Install the tray cover; refer to "Installing the Tray Cover" on page 22. (Be sure to connect all

drive cables before securing the tray cover.)

9. Install the tray in the enclosure; refer to "Installing a System Tray" on page 18.
