Disk Drive Replacement

5. Remove the tray bracket (with disk drives installed) from the tray cover and place it on an

ESD safe surface; refer to Figure 1-11.

6. Remove the six screws that secure the disk drive to the drive bracket; refer to Figure 1-12.

Note: Remove the bottom set of screws for the bottom drive.

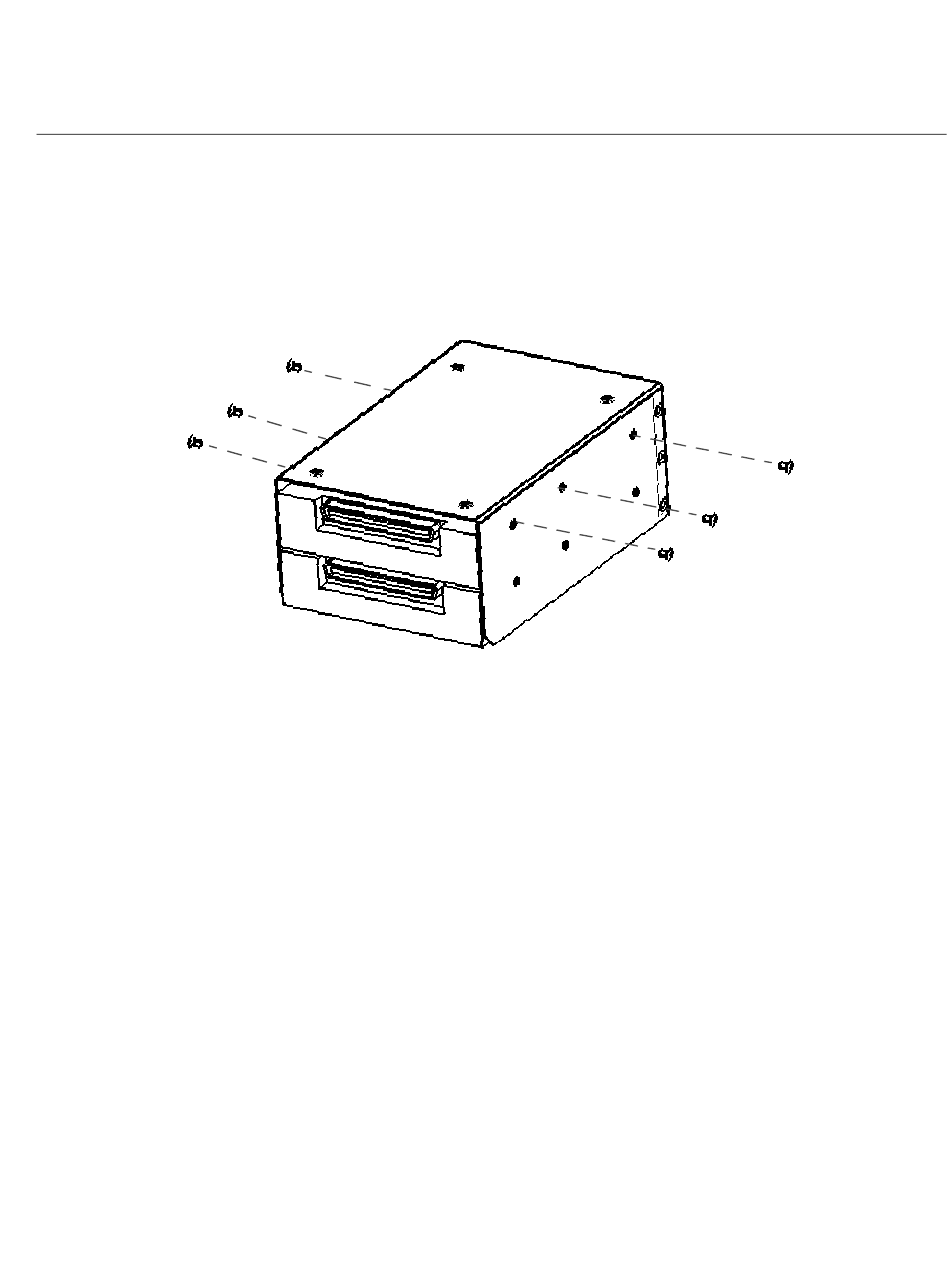

Figure 1-12

Removing the Screws that Secure the Disk Drive to the Drive Bracket

7. Slide the disk drive out of the drive bracket.
