Ty91 Radio Installation Drawings - PS Engineering PAR200B System Installation And Operation Manual

PS Engineering Inc. ®
PAR200B Audio Selector Panel, COM radio Controller and Intercom System
Installation and Operator's Manual
Tray and cutout dimensions
Ca ut io n : Ap p ly s tead y p r es su re to th e b eze l wh ile s crew in g th e u n it in t o th e tray to
en su r e ev en s eat in g o f t h e u n it an d co n n ec to rs .

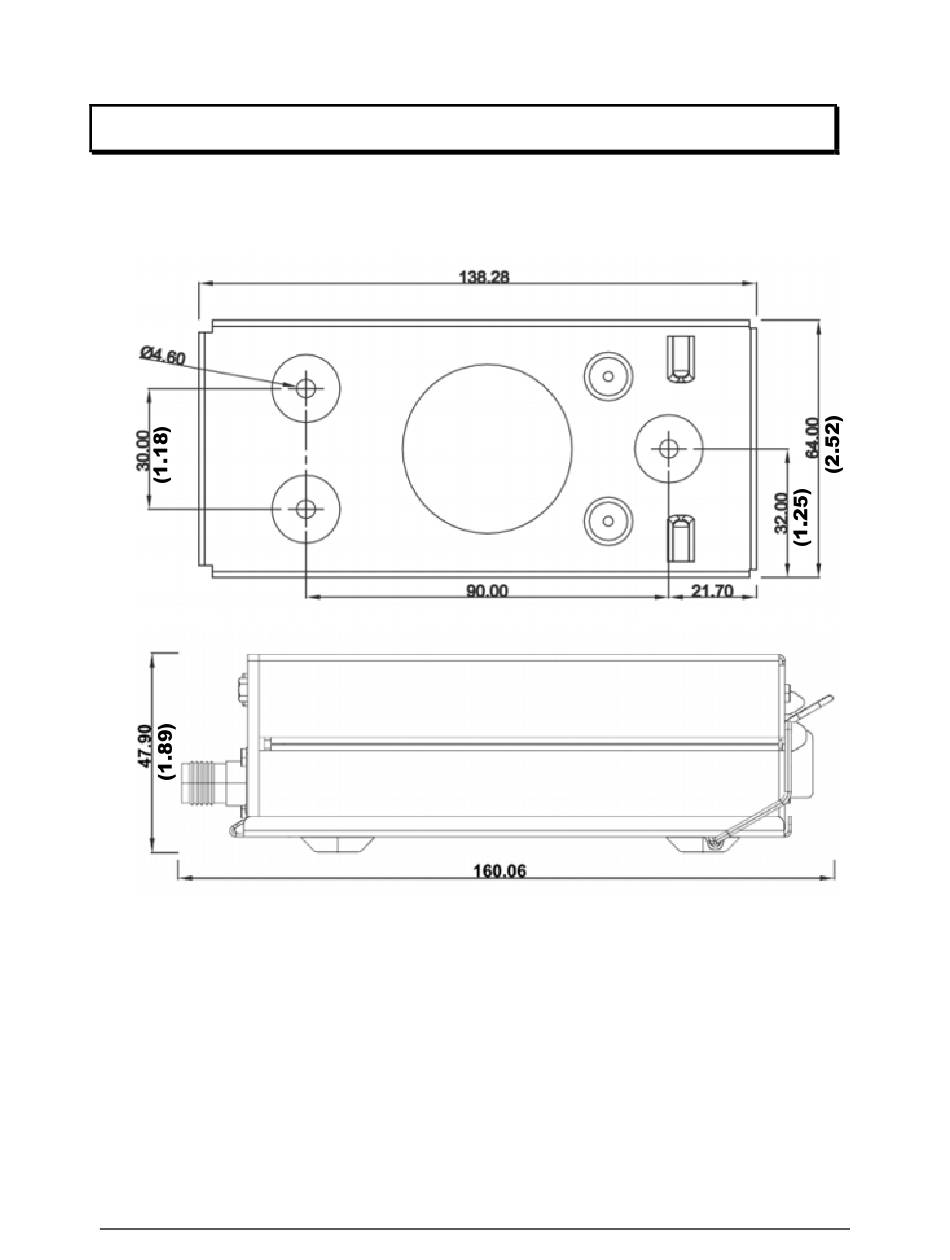

6.1 TY91 Radio Installation Drawings

(5.44)
(Ø.187)
(3.54)
(.85)
(6.30)
Not to Scale. Dimensions in millimeters, (inches)
