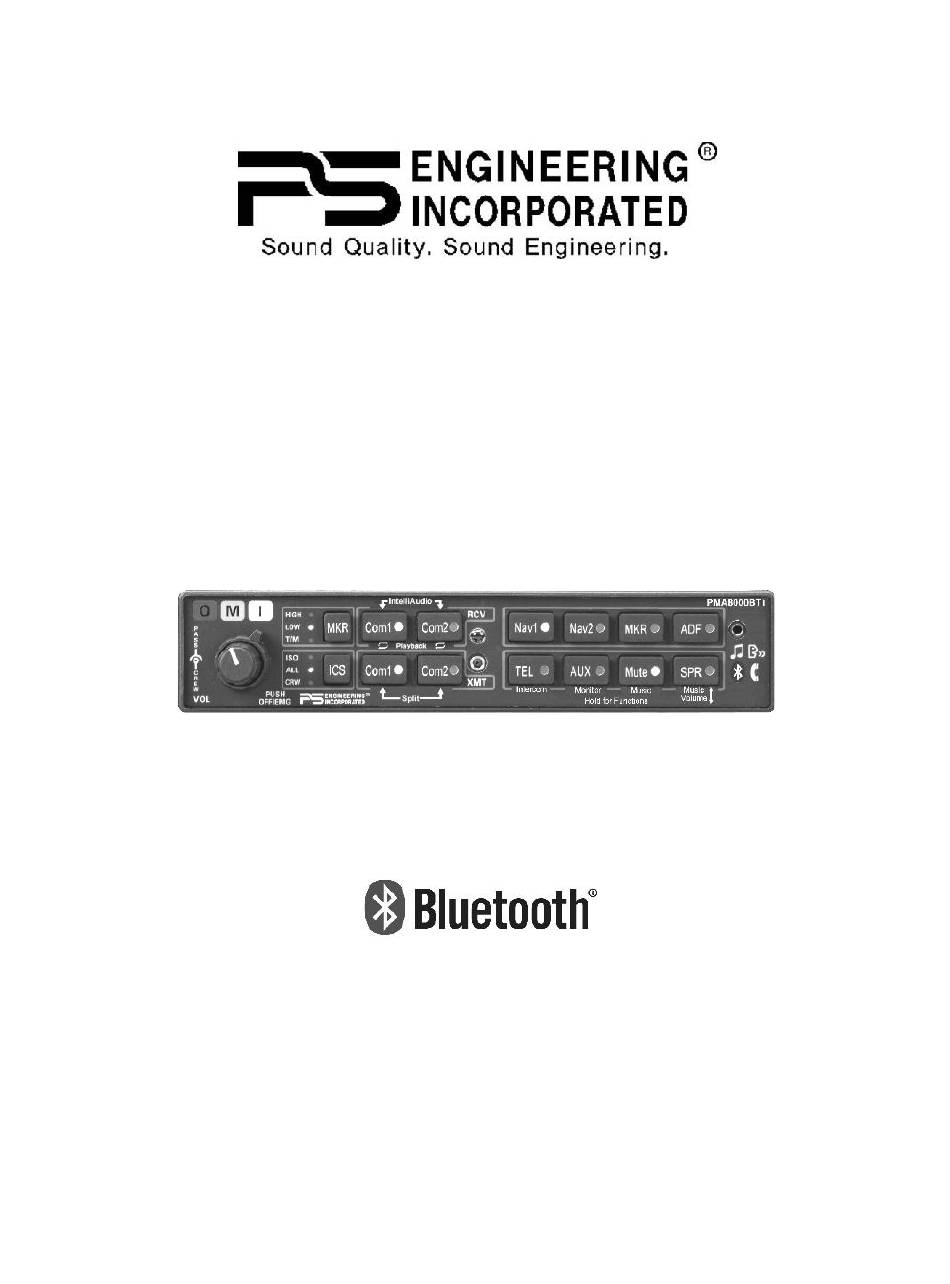

PMA8000BTi
PMA8000BTi
Audio Selector Panel with IntelliAudio®
Marker Beacon Receiver
Stereo Intercom System
with Bluetooth® Connectivity
Flying Never Sounded So Good! ™
Operation Manual
Operation Manual
202-890-1722
Covered under one or more of the following Patent No. 4,941,187, 5,751,817,
5,903,227, 6,160,496, 6,493,450,
FAA-Approved: TSO C50c, C35d
EASA-Approved ETSO C50c, 2C35d
Copyrighted information in this manual is subject to change without notice. PS Engineering reserves the right to
improve or change the products or contents of this manual, without notification of any person or agency. The contents of
this pilot's guide may be downloaded, stored and reprinted for personal use provided that this copyright information is
included. Commercial use is strictly prohibited. For further information contact the Publications Manager at PS Engi-
R2 March. 2016
PMA8000BTi Pilot Guide
neering, Inc., 9800 Martel Road, Lenoir City, TN 37772. Phone (865) 988-9800
9800 Martel Road
Lenoir City, TN 37772
www.ps-engineering.com
Pilot's Guide
Pilot's Guide
and
and
PS Engineering, Inc. 2016 ©
Copyright Notice
202-890-0722
Rev 2 March 2016
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PS Engineering PMA8000BTi
Summary of Contents for PS Engineering PMA8000BTi
- Page 1 PS Engineering, Inc. 2016 © Copyright Notice Copyrighted information in this manual is subject to change without notice. PS Engineering reserves the right to improve or change the products or contents of this manual, without notification of any person or agency. The contents of this pilot’s guide may be downloaded, stored and reprinted for personal use provided that this copyright information is...
-
Page 2: Power Switch (1) (Emg-Fail Safe Operation)
When the unit is turned off, either by pressing the volume control, or if the breaker is pulled removing power, the PMA8000BTi is in Fail-Safe mode. In this mode, the pilot’s headset is connected to COM 1 for transmit and re- ceive, and connected to unswitched input #1 for priority audio alerts. -
Page 3: Audio Selector
Intercom Operation IntelliVox® VOX-Squelch IntelliVox® is PS Engineering’s proprietary intercom squelch control. Through the use of digital processors, each microphone is monitored, and opens instantly when human speech is detected. This results in seamless con- versations aboard the airplane for crew and passengers, without syllable clip- ping or fatigue-inducing noise. -
Page 4: Intercom Volume Control
The pilot and copilot positions work with mono headsets. However, the In- telliAudio feature will not function. If a monaural headset is plugged in to a PMA8000BTi Stereo installation, one channel will be shorted and all passengers will lose one channel unless they switch to the “MONO”... -
Page 5: Marker Beacon Operation
Pressing the MKR button for one second will cause the marker audio to mute. The next beacon received will re-activate the audio. R2 March. 2016 PMA8000BTi Pilot Guide 202-890-0722 Page 5... -
Page 6: Split Mode
Split mode, particularly on adjacent frequencies. PS Engineering makes no warranty about the suitability of Split Mode in all aircraft conditions. Telephone (TEL) (10) -
Page 7: Bluetooth Connection
This can happen automatically, or by prompting the user to accept the connection again. The PMA8000BTi will always look for paired devices when it is turned on, and connect with the first one that allows connection. - Page 8 Can I play my laptop movie audio? If your laptop is compatible as Bluetooth A/V source (not all are), yes. Just add the PMA8000BTi as a Bluetooth device as you would a stereo speaker device. There are also Bluetooth devices available (such as the Sony TMR-BT10A Bluetooth Transmitter Adapter) to plug into the audio output jack that will enable you to stream music to the audio panel.
-
Page 9: Telephone Operation
My music quality is very poor, and can only be heard in TEL mode, what’s wrong? Check your Smartphone, and be sure that it is paired with the PMA8000BTi as a “speaker” or “wireless speaker” in A2DP mode. Split Mode The Split mode puts the pilot on COM 1, while the copilot can use COM 2 independently. - Page 10 Some cellular telephones provide sidetone (where you hear yourself speak). If necessary, you can turn off the PMA8000BTi provided side- tone by holding both the TEL and ADF buttons at the same time, for more than one second. Music Muting Music source #1 (front panel jack and Music 1 input) has four muting modes, which are announced in the headset as they are activated.
- Page 11 Crew Copilot*& 1 Input Pass. & Pass. & & Pass. Pass. Pass. M u s i c Pass. Pass. Pass. Pass. 2 Input *Pilot has Music 1 option in ISO mode R2 March. 2016 PMA8000BTi Pilot Guide 202-890-0722 Page 11...
- Page 12 ISO and ALL intercom modes. The PMA8000BTi will announce the Alternate Intercom and Music distribution functions at unit power up. To defeat the announcement at power up, hold the TEL and AUX buttons for about two seconds.
- Page 13 This page intentionally blank R2 March. 2016 PMA8000BTi Pilot Guide 202-890-0722 Page 13...
- Page 14 This page intentionally blank Page 14 202-890-0722 PMA8000BTi Pilot Guide...
-
Page 15: Utility Jack
“Smart Jack” Function When the PMA8000BTi has an audio signal on music #1 from the rear con- nector, the front panel jack automatically becomes a Priority Advisory input, and is heard in the crew headphones, and this input will NOT be muted by radio or intercom., if the Music 1 audio is actively playing. -
Page 16: Smart Function Keys (Sfk)
“Music” function controls how music is distributed in your airplane. There are two music sources available to the PMA8000BTi, in addition to the Bluetooth stream. Music 1 input can be either on the front jack, or the Music 1 input at the rear connector (Pins 23 and 24, J2). -
Page 17: Monitor Function
Alternate Music distribution modes are announced at power up, unless the power on announcement has been defeated. Power on announcement If the Intercom or Music Distribution is changed from the factory default, R2 March. 2016 PMA8000BTi Pilot Guide 202-890-0722 Page 17... -
Page 18: Music Muting
MUTE button LED is OFF. Annunciation is "Mute off." When the PMA8000BTi is turned on, it always begins in “Mute on” mode. The passengers’ intercom also has a SoftMute™ circuit. If the passengers hear the radio, or talk on the intercom, the music will mute. If the audio panel is in CREW mode, then the radio reception will not affect the passen- ger music. - Page 19 SPR LEDs will blink while the audio panel is in PA mode. The copilot can use the selected com while the pilot will be heard over the speaker. To exit push Mute and SPR again. This mode is also reset when power is cycled. R2 March. 2016 PMA8000BTi Pilot Guide 202-890-0722 Page 19...
-
Page 20: Warranty And Service
PS Engineering dealer. During the first twelve (12) months of the three-year warranty period, PS Engineering, Inc., at its option, will send a replacement unit at our expense if the unit should be determined to be defective after consultation with a factory technician. For the remaining twenty-four (24) months of the three-year warranty period, PS Engineering will send a no-cost replacement unit at customer shipping expense.
