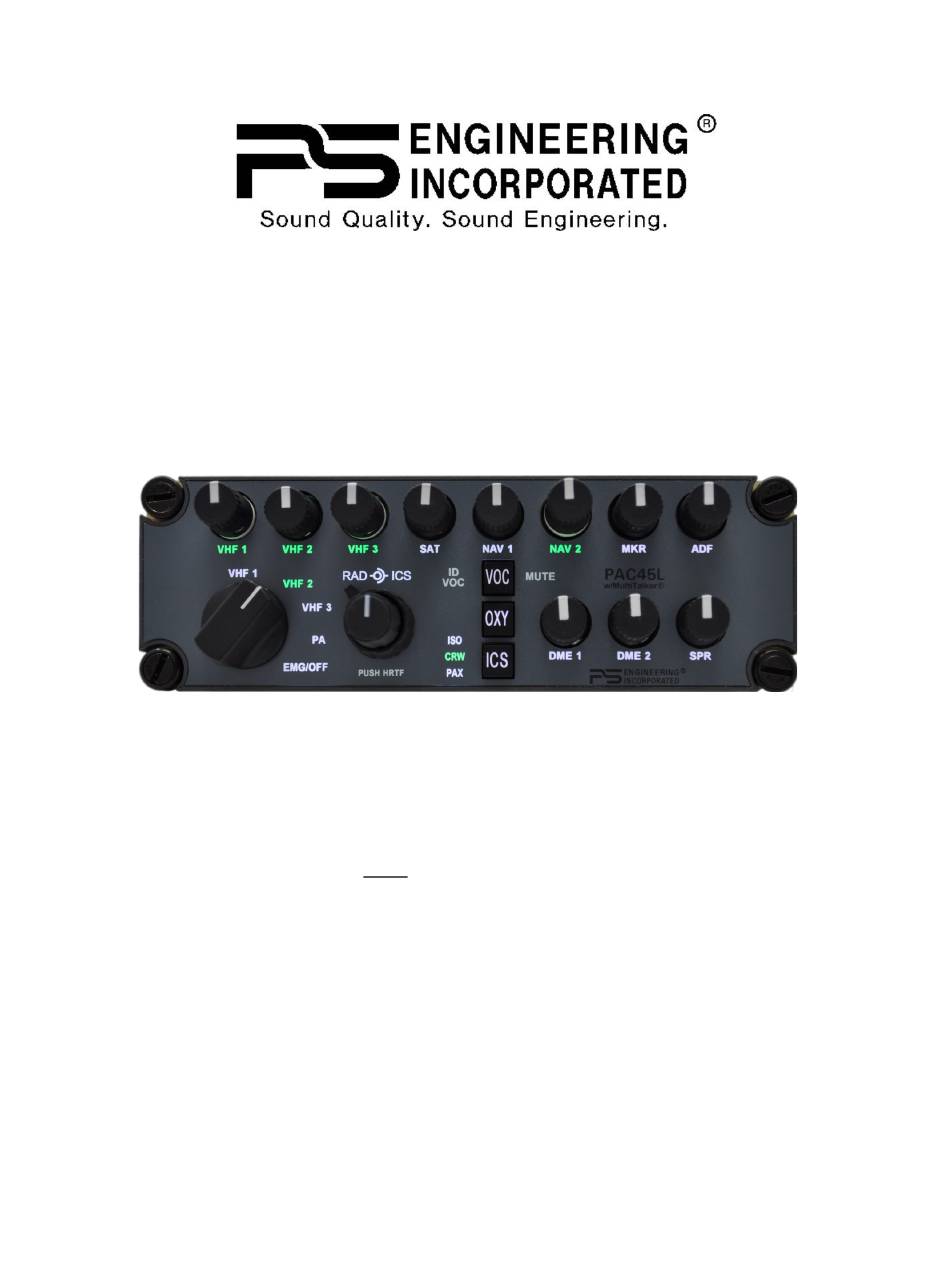

PAC45L System
MultiTalker®
With
Flying Never Sounded So Good!®
Pilot's Guide
and
Operation Manual
FOR DUAL CONTROL HEAD SYSTEMS
202-045-3200
April 2021
FAA TSO C139a
PS Engineering, Inc. 2021 ©
Copyright Notice
Copyrighted information in this manual is subject to change without notice. PS Engineering reserves the right to
improve or change the products or contents of this manual, without notification of any person or agency. The
contents of this pilot's guide may be downloaded, stored and reprinted for personal use provided that this copyright
information is included. Commercial use is strictly prohibited. For further information contact the Publications
PAC45L Pilot Guide
202-045-3000
Page 1
Manager at PS Engineering, Inc., 9800 Martel Road, Lenoir City, TN 37772. Phone (865) 988-9800
