9800 Martel Road
Lenoir City, TN 37772
www.ps-engineering.com

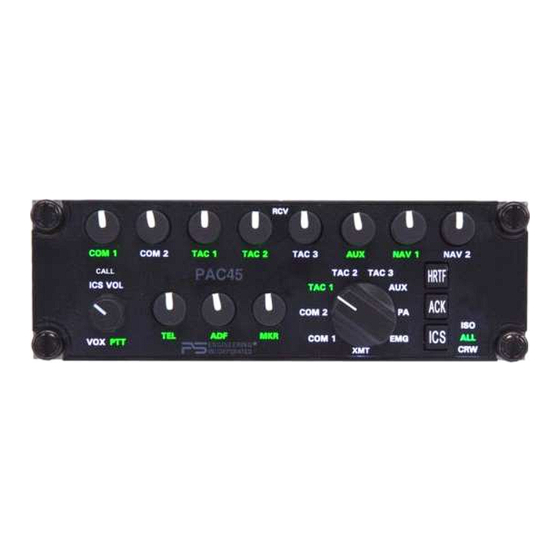

PAC45
Special Mission Audio Controller System with
MultiTalker™ and IntelliVOX®
Document P/N 200-045-0000
Rev. 7, May 2019
Audio Control System with MultiTalker Technology
High-fidelity Stereo Intercom
System Installation and Operation Manual
FAA - TSO C139a
Patented under one or more of the following;
No. 4,941,187; 5,903,227; 6,160,496 and 6,493,450, 7,391,877
In certified aircraft, warranty is not valid unless this product is installed by an
Authorized PS Engineering dealer.
PS Engineering, Inc. 2019 ©
Copyright Notice
Any reproduction or retransmittal of this publication, or any portion thereof, without the expressed written permission of PS En-
gineering, Inc. is strictly prohibited. For further information, contact the Publications Manager at PS Engineering, Inc., 9800
Martel Road, Lenoir City, TN 37772. Phone (865) 988-9800, email contact@ps-engineering.com.
