PAR200B Audio Selector Panel, COM radio Controller and Intercom System
Figure 2-2 – PAR200B Adjustments

2.9 Microphone gain reduction

For installations in very noisy aircraft, a reduction in the intercom microphone input gain might be desirable.
The PAR200B has two DIP switches located on the main board that can switch the inputs to a lower gain
setting.

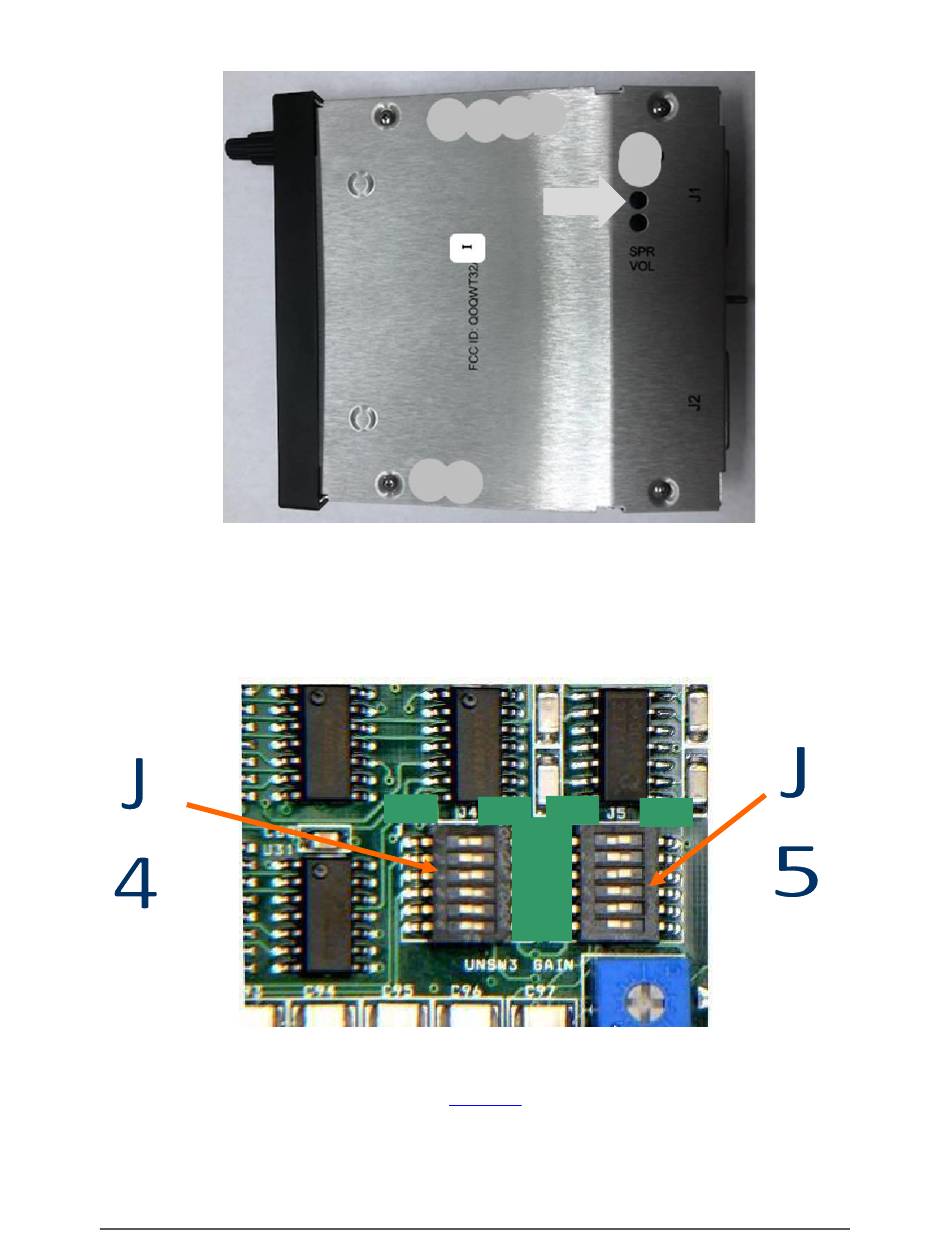

Figure 2-3 DIP switches
NOTE: Before changing the intercom microphone gain, we recommend installation of Oregon Microphone
Muff kits as these solve almost all squelch issues.
200-228-0300
PS Engineering Inc. ®
Installation and Operator's Manual
OFF
ON
1
2
3
4
5
6
See §3.8.1.
Page 2-9
UNSW 3
OFF
ON
October 2019
