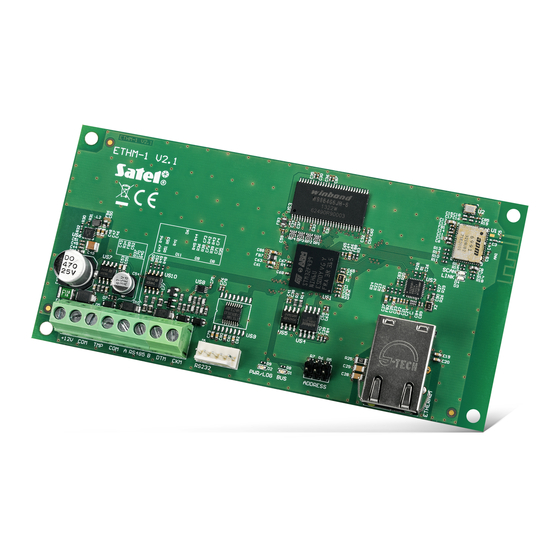

The ETHM-1 Ethernet Module is a TCP/IP server. It enables the INTEGRA series control
panels (program version 1.03 or later) to be operated via the Ethernet network. Data
transmission in the network is coded by means of an advanced algorithm based on 192-bit
key. The control panels can be operated via the Ethernet network with the use of PC
computers or mobile phones.
When using the computer, the control panel can be operated from the D
program, G
X administrator program, as well as an Internet browser supporting the J
UARD
applications. The mobile phone uses a special J
Note: The module enables only one user to be connected at a time. The next users will
receive a message on busy status of the server.
The module with firmware version 1.02 or later provides an option for the INTEGRA series
control panels (program version 1.04 and next) to perform monitoring via the Ethernet
network.
This manual refers to the ETHM-1 module with firmware version 1.02. Replacement of the
module firmware is possible by means of the EthmFlash program, available on the website
www.satel.pl
1. Description of electronics board

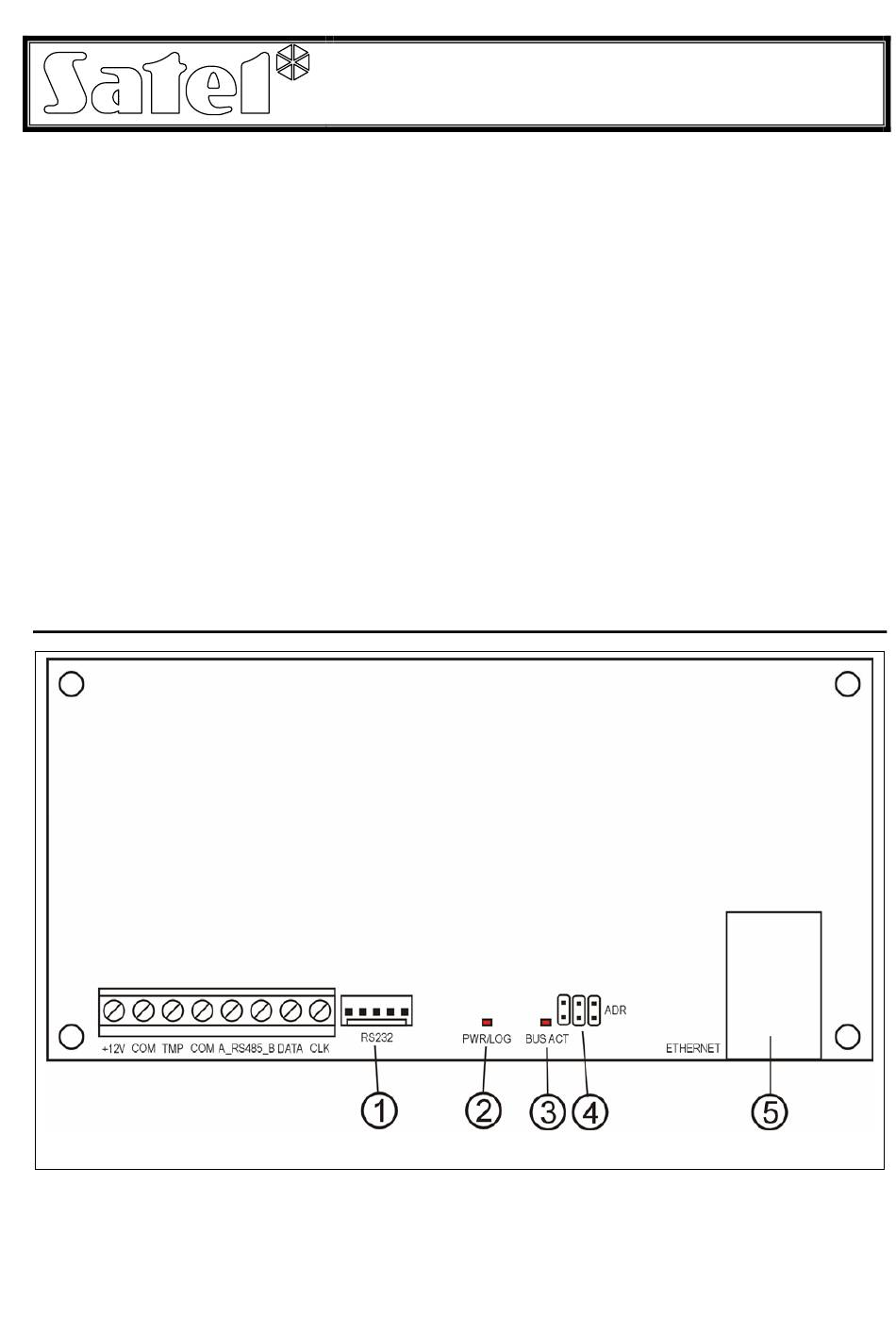

Fig. 1. Schematic view of electronics board of ETHM-1 Ethernet module.
Legend:
1 – RS-232 port – enables the module to be connected to the control panel RS-232 port, so
that the panel can be controlled via the Ethernet by means of the D
Additionally, it makes possible to replace the module firmware. Connect the port to the
®
Ethernet Module
ETHM-1
application to operate the control panel.
AVA
ethm1_e 05/07
X service
LOAD
AVA
X program.
LOAD
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Satel ETHM-1
Summary of Contents for Satel ETHM-1
- Page 1 ® ethm1_e 05/07 The ETHM-1 Ethernet Module is a TCP/IP server. It enables the INTEGRA series control panels (program version 1.03 or later) to be operated via the Ethernet network. Data transmission in the network is coded by means of an advanced algorithm based on 192-bit key.
-
Page 2: Module Addressing
SATEL ETHM-1 computer by means of the same cable that was used for programming the INTEGRA control panels from the computer, and then run the EthmFlash program. 2 – PWR/LOG LED – steady light indicates presence of the supply voltage; blinking LED indicates that the user has logged in to the server. -
Page 3: Starting The Module
RS-232 ports of module and control panel with a cable made according to Fig. 2. Fig. 2. Connecting the RS-232 ports of control panel and ETHM-1 module. 4. Starting the module Note: In the systems having modules with own power supply, it is recommended that you start the panel first, and then, successively, the other system components. -
Page 4: Description Of Settings
RS-232 ports has been disconnected for the time of programming, it should be reconnected. 5. Description of settings Fig. 3. Window of ETHM-1 module settings in D X program. LOAD The names of programmable options are given on the LCD keypad base. Additionally, descriptions of the D X program options are shown in square brackets. - Page 5 IP address, subnet mask and gateway from DHCP server. Note: The IP address assigned to the module can be read by means of the IP/MAC ETHM-1 user function ( T ). When establishing communication with the module, you must ESTS know the IP address.
- Page 6 6. Operating the control panel by means of D X program LOAD Note: The RS-232 port of the ETHM-1 module must be connected to the RS-232 port of the control panel. In order to enable the control panel to be operated over the Ethernet by means of the...
- Page 7 Having read the control panel settings, you can proceed to programming new ones. Note: If the ETHM-1 module settings are Fig. 5. "TCP/IP connection" window in the changed during programming,...
- Page 8 1. Start the web page browser. 2. In the address field, enter the IP address of the ETHM-1 module. 3. Enter the following information on the page to appear in the browser: − server key – identical to that programmed in the module for communication with the Web;...
- Page 9 ETHM-1 SATEL Fig. 8. Window of internet browser with the ETHM-1 module login page. Having entered the data, click on the "Log in" button. 4. A virtual keypad will appear in the window, thus allowing you to operate the control panel similarly as with the LCD keypad.
- Page 10 The J application for operating the control panel should be downloaded from the website www.satel.pl. The application must be suitably selected to match the mobile. To operate the control panel from a mobile phone by means of the J application, you should: 1.
-
Page 11: Technical Data
ETHM-1 SATEL Fig. 10. View of the cellular phone with J application running. 10. Technical data Rated supply voltage ..................12V DC ±15% Average current consumption ..................112mA Operating temperature range..................0 ÷ 55°C Electronics board dimensions ................. 68x140 mm Weight..........................64g... - Page 12 The latest EC declaration of conformity and certificates are available for downloading on our website www.satel.pl SATEL sp. z o.o. ul. Schuberta 79 80-172 Gdańsk POLAND tel. + 48 58 320 94 00 info@satel.pl www.satel.pl...
