A. Specification; B. Operation; 1. Built-In Programs Mode; 2. Auto Running Mode - involight MATRIX559 User Manual

Our COB light offers many possibilities to achieve very nice laser effects which you want. It is specially designed
for the stages, disco, night clubs etc. Please read the manual before operation.

A. SPECIFICATION

1. Voltage: AC 100V~240V, 50Hz/60Hz
2. Power consumption: 240W
3. Current: 2.15A/110V, 1A/240V
4. Beam angle: 55 degree
5. LEDs : COB 25pcs 3-in-1
6. Working temperature: -10℃~40℃
7. DMX channels: 3, 5, 7 CH
8. DMX linking: 3-pin, 5-pin
9. Lumen: R 405
G 682
B 750
RGB 1644
10. Power linking: 3pcs/110V, 7pcs/240V

B. OPERATION

There are six working modes to select: Press the "MODE" button can switch the working mode.

1. Built-in Programs Mode

1) Press the "MODE", enter built-in programs mode menu "RUN PROGRAM: 01 1: R FS:000"; Press "UP" and
"DOWN" to select the operation programs effect "RUN PROGRAM: 01 - RUN PROGRAM: 19";
2) Press the "SETUP", enter operation programs select the menu "RUN PROGRAM: 01";
3) Press the "UP" or "DOWN", enter to static color "1.R"; Press "UP" and "DOWN" to select "1.R", "2.RG",
"3.G", "4.GB", "5.B", "6.RB", "7.RGB", "8.OFF". Press "SETUP" enter to set the strobe menu: FS:000, Press
"UP" and "DOWN" to select the speed "FS:00-FS100"
4) When it is in "RUN PROGRAM: 02 - RUN PROGRAM: 19", enter to setup the programs operation speed menu
"SP: 092"; Press the "UP" or "DOWN", set the speed value "SP: 001 – SP: 100";
6) Press the "SETUP", enter to setup the strobe programs operation menu "FS: 000";
7) Press the "UP" or "DOWN", set the strobe value "FS:000 - FS:100";

2. Auto Running Mode

1) Press the "MODE", enter auto running mode menu "AUTO times: 002 SP: 092

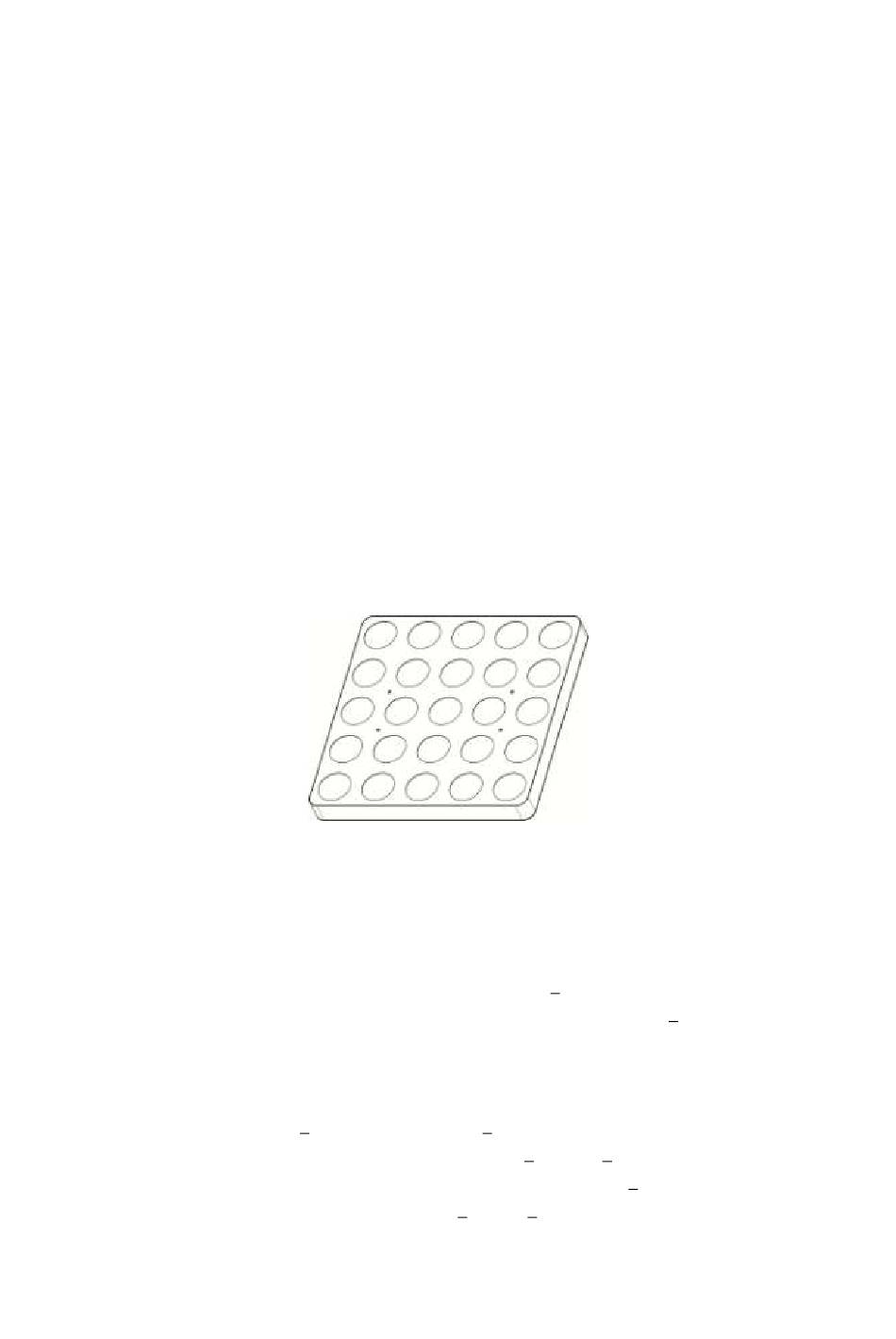

COB Matrix 5*5, Tri-3W
lux@2m
lux@2m
lux@2m
lux@2m
User Manual
FS: 000";
