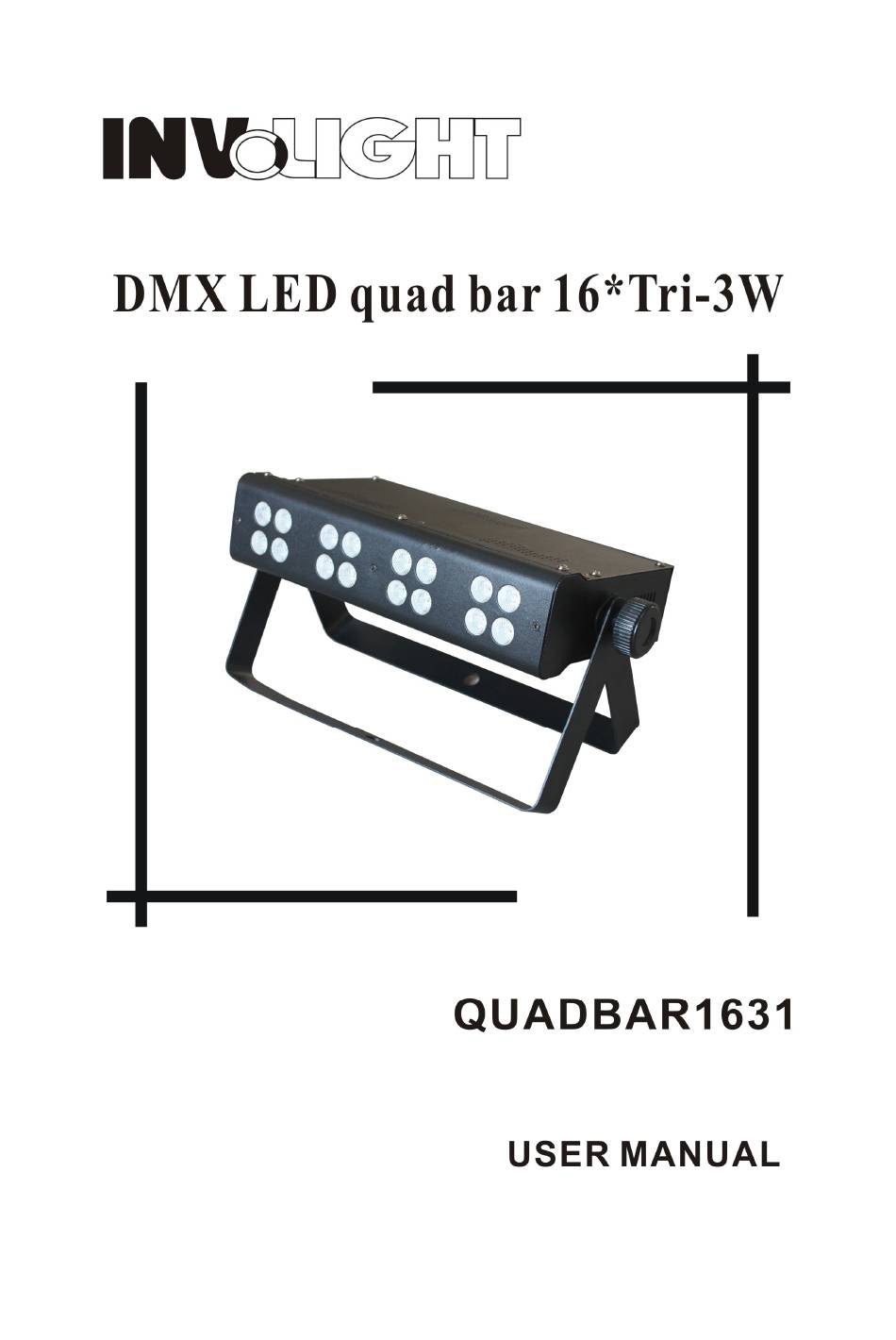

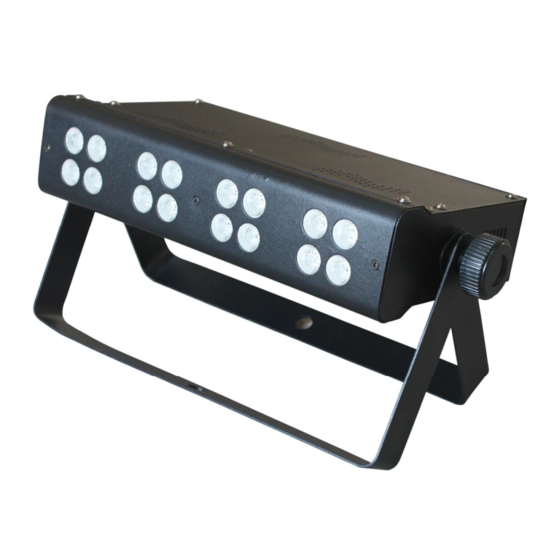

- Page 2 DMX LED quad bar 16*Tri-3W Manual Please read this user manual before using this product. Specification : 1. Weight:3kg 2. Size:310×175×72mm 3. Power input: AC 120V/240V, 60Hz/50Hz 4. Wattage: 60W 5. LEDs:16 *tri-3W 6. Beam angle: 30 degree 7. Built-in programs,DMX mode, M/S mode, auto run,sound active,static color 8.
- Page 3 Red-1/2/3/4 set(0-255) Green-1/2/3/4 set(0-255) White Balance Blue- 1/2/3/4 set(0-255) Auto test Red,Green,Blue,White Fixture Time Used hour When LCD show DMX Address,press enter button enter submenu “Address xxx” （xxx=001~512）,user can through UP or DOWN button adjust the address . When show “DMX Mode”,press enter button enter DMX mode ,there are two mode : “5 Ch Mode”、 “13 Ch Mode” DMX512 Controller instruction 5CH control mode 1--255...
- Page 4 When show “Slave Mode”press enter button enter sumenu ,Press UP or DOWN button select “Slave1 Mode”、 “Slave2 Mode”、“Master Mode”。 Press enter button to confirm .When on “Slave1 Mode”,this light will be work with the master light in the synchronization. When on “Slave2 Mode”,this light work with the master light in the synchronization in some time ,sometimes ,will work the opposite direct of the master light .this is a special master/slave effect .
