Summary of Contents for involight MATRIX559
-
Page 2: User Manual

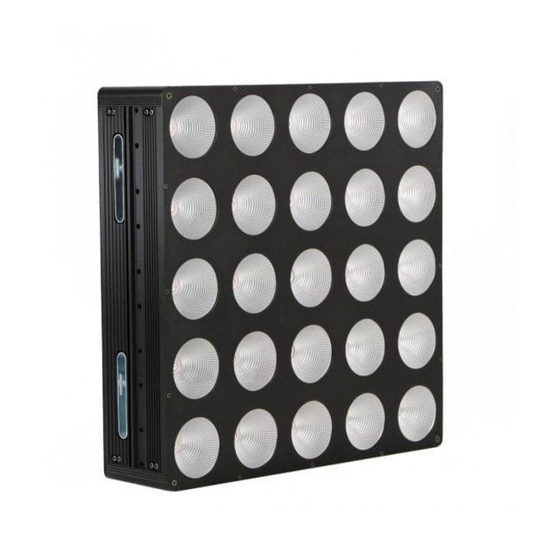

COB Matrix 5*5, Tri-3W User Manual Our COB light offers many possibilities to achieve very nice laser effects which you want. It is specially designed for the stages, disco, night clubs etc. Please read the manual before operation. A. SPECIFICATION 1. - Page 3 2) Press “SETUP”, enter the setup menu of the auto running programs time “AUTO times: 001”; 3) Press the UP” or “DOWN”, to setup the auto running programs time value “times: 001 - times: 100”; 4) Press the “SETUP”, enter the speed menu of setup auto running programs “SP: 092”; 5) Press the “UP”...
- Page 4 DMX mode2: 5 CH Red 0-255 Green 0-255 Blue 0-255 Dim 0-255 Flash 0-255 DMX mode3: 75 CH Red 1 Green 1 Blue 1 Red 2 Green 2 Blue 2 CH10 CH11 CH12 Red 3 Green 3 Blue 3 Red 4 Green 4 Blue 4 CH13...
- Page 5 display panel darken, press any button, will show the current state, in the display state, can adjust the working mode and operation state.
