Page 1: User Manual

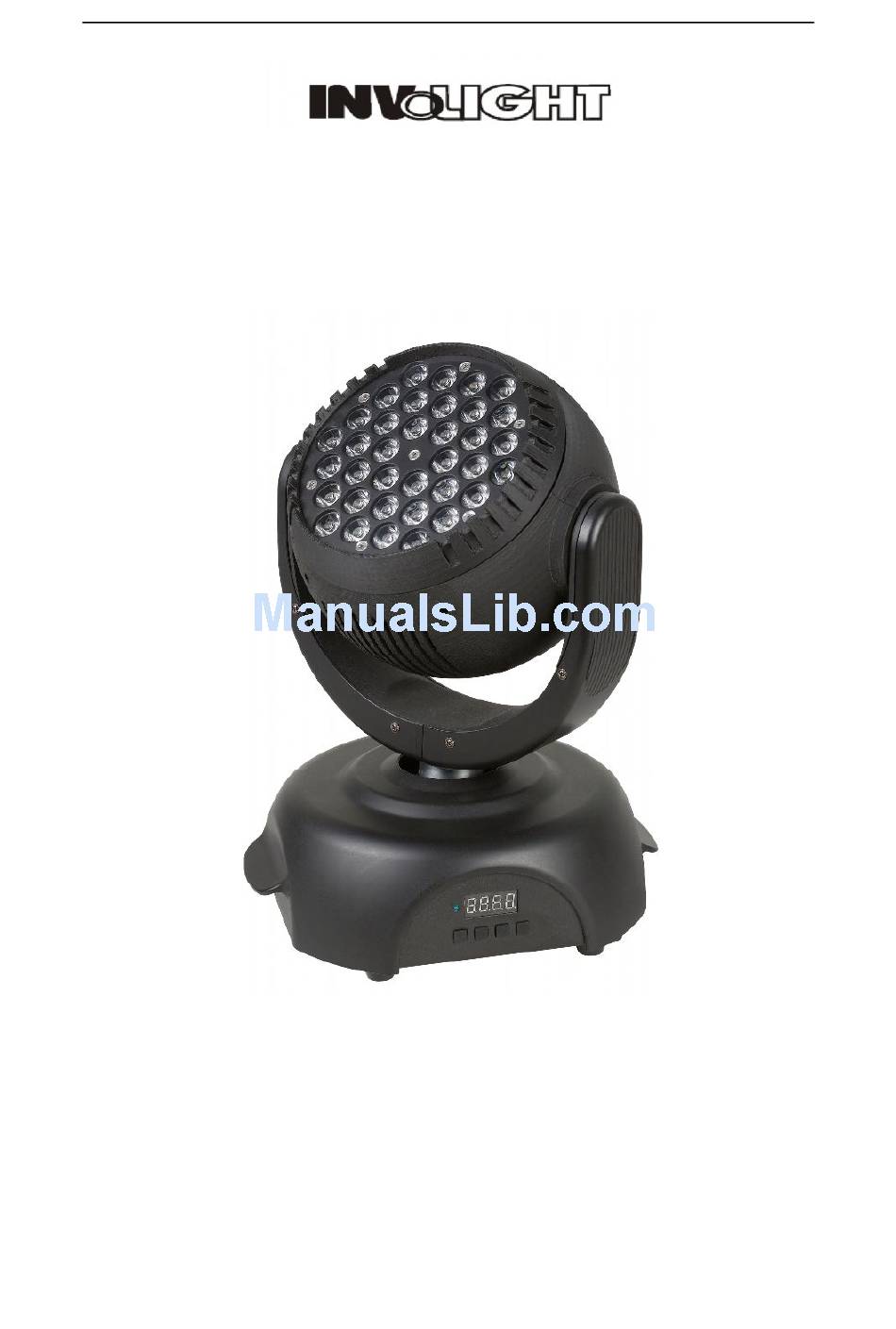

LEDMH100 MOVING HEAD LEDMH100 USER MANUAL... -
Page 2: Table Of Contents
LEDMH100 MOVING HEAD TABLE OF CONTENTS INTRODUCTION ......................... 3 MAIN FEATURES ......................3 UNPACKING......................... 3 SAFETY WARNING ......................3 PANEL REVIEW ........................4 INSTALLATION AND SETTING ................... 4 1. MULTI-FIXTURES CONNECTION ................4 2. LAMP BODY INSTALLATION .................. 5 OPERATION ........................5 1.SET DIPSWITCHES.................... -
Page 3: Introduction
■Shutter speed is 10flashes/sec ~10secs / flash ■36X1W LED ■PAN scan angle 0~540 ■TILT scan angle 0~230 UNPACKING ★LEDMH100 MINI LED FIXTURE ★USER MANUAL SAFETY WARNING For your convenient and accurate operation, please read following information carefully. ◆Suitable for indoor use only. -
Page 4: Panel Review
LEDMH100 MOVING HEAD itself. ◆Do not barrier vent in order to ventilate well and dissipate in time. ◆Connect the fixture with power source, which has a ground line, and voltage of power source should accord with rating voltage. ◆If fuse was damaged, change the same type. -
Page 5: Lamp Body Installation
LEDMH100 MOVING HEAD The shield connection is pin 1, while pin 2 is Data Negative (S-) and pin 3 is Data positive (S+). 2. LAMP BODY INSTALLATION Notes: do not install it nearby the curtain or flammable materials. Only for indoor use. -
Page 6: Dmx Channel Summary
LEDMH100 MOVING HEAD 2. DMX CHANNEL SUMMARY LEDMH1 3. CHANNEL FUNTIONS DISPLAY FUNCTION VALUE 001-501 DMX address (16BT is on, the max value is 501.) MODE M-DM DMX mode M-AU AUTO mode Notes: Only one lamp can be set as Master and the left are Slaves (Slaves set to DMX mode with DMX address “001”). -
Page 7: About Each Channel
LEDMH100 MOVING HEAD Pr1-4 means skip Pr5-8 means fade SPCO SP01~15 Auto speed SP01: 0.1sec/step, SP15: 10secs/step r PAN STND Run clockwise as DMX value increases Run anticlockwise as DMX value decreases R TILT STND Run clockwise as DMX data increase... - Page 8 LEDMH100 MOVING HEAD Built-in program 100~124 Built-in program 125~149 Built-in program 150~174 Built-in program 175~199 Built-in program 200~224 Sound-active 225~255 program function ■ Channel 2: RED When CH1 is 0~24 DMX value carmine ■ Channel 3： GREEN When CH1 is 0~24...
- Page 9 LEDMH100 MOVING HEAD ■ Channel 4:Blue When CH1 is 0~24 DMX value blue navy blue ■ Channel 5： Strobe When CH1 is 0~24 DMX value strobe speed slowest fastest no strobe no strobe Notes: CH2~4 decides brightness. When CH2, CH3, CH4 is 0, there is no brightness.
- Page 10 LEDMH100 MOVING HEAD fastest ■ Channel 6： RGB Dimming When CH1is 0~24: DMX value RGB brightness brightest ■ Channel 7: PAN（540°） DMX value Effect Leftmost Medium Rightmost ■ Channel 8: TILT（230°） DMX value Effect Bottommost Medium Topmost ■ Channel 9：PAN or TILT SPEED ■...
-
Page 11: Maintenance
LEDMH100 MOVING HEAD MAINTENANCE 1.TROUBLESHOOTING Problem Probable cause(s) Suggested remedy Check if power source is on or cord works No power source well. Cut off power source and change the Fixtures does not same type fuse. If fuse was burnt on end, work it may be the problem of connection;... -
Page 12: Technical Specification
Check mechanical transmission part if it has any loose part during a certain time, such as a strap. Abrasion of mechanical transmission part will affect stability of lamp work. If strap is loose, you should change it if needed. TECHNICAL SPECIFICATION Type-------------------------------------------------------------LEDMH100 MINI LED MOVING-HEAD LED Number& Voltage------------------------------------------------------------------------36X1W LED Power------------------------------------------------------------------------------------------------------160W Voltage-----------------------------------------------------------------------------------------------------220V Electrical current------------------------------------------------------------------------------------0.7 2 6 A...
