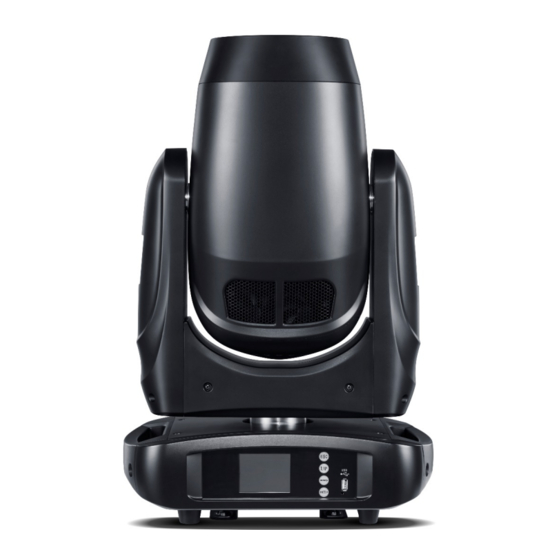

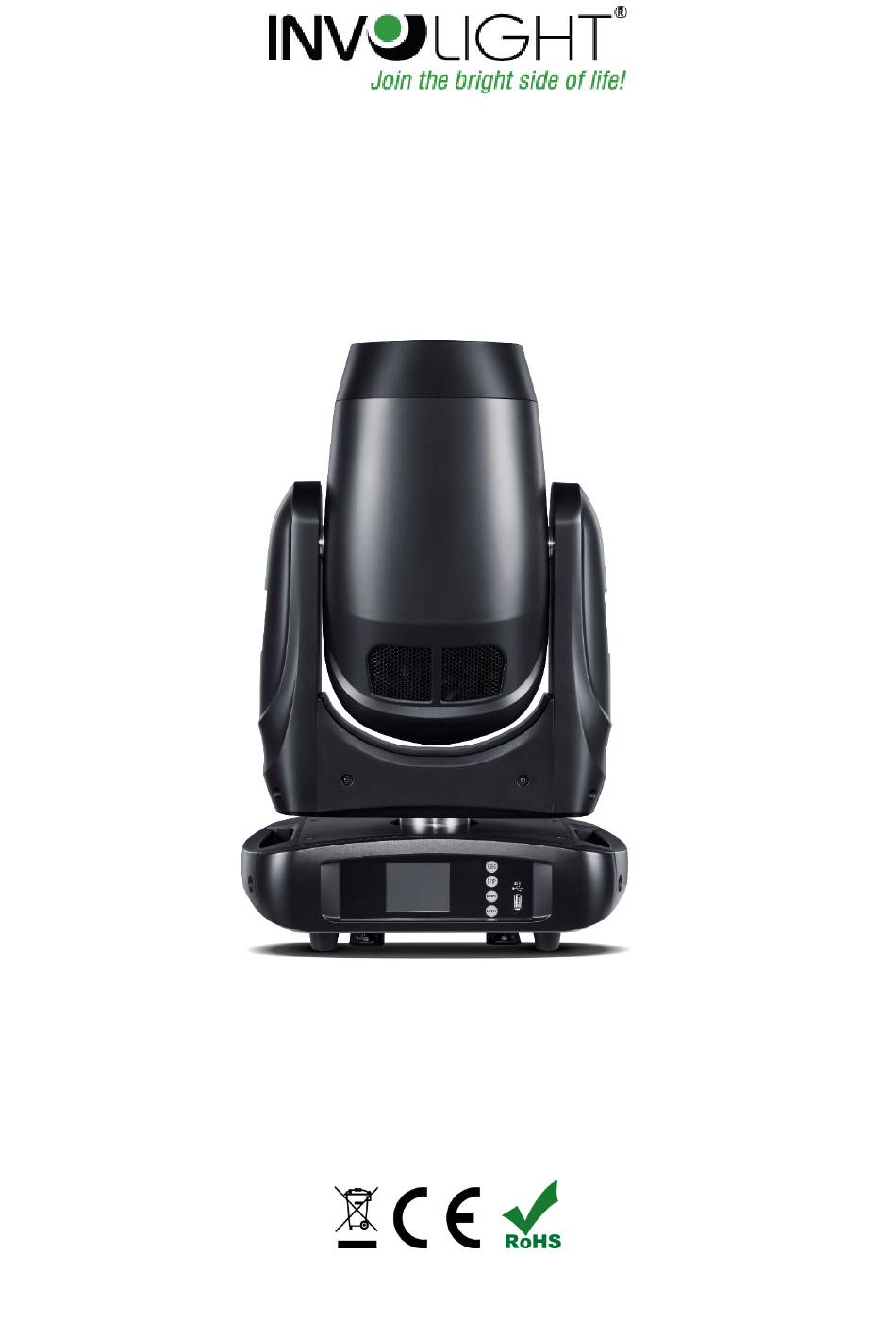

- Page 1 User manual TRINITY150LED Hybrid moving head 3 in1 Spot / Wash / Beam Ver. 1.0...
-
Page 2: Table Of Contents
Congratulation for choosing INVOLIGHT TRINITY150LED. With this device you become an owner of a professional hybrid moving head with our latest technology. In order to make your TRINITY150LED long lasting, please read these instructions carefully before operation. If you have any questions, please contact your local INVOLIGHT dealer. -
Page 3: Part 1: Warnings
Part 1: Warnings: 1.1 Meaning of the safety symbols and signal words DANGER! A combination of this signal word and a symbol indicates an imminently hazardous situation that leads to death or serious injury if not avoided. WARNING! A combination of this signal word and a symbol indicates an imminently hazardous situation that can lead to death or serious injury if not avoided CAUTION! A combination of this signal word and a symbol indicates an imminently hazardous situation, which can lead to minor injuries if... -
Page 4: Safety Instructions
1.2 Safety instructions: This information sheet contains important information of safety operation of the device. Ensure that this information is available to all persons using this device. The rating plate is located on the bottom of the product. Please read all warnings and operating instructions carefully before using this unit. Keep this manual for future ref- erence. - Page 5 1.3 Intended use. The INVOLIGHT "TRINITY150LED" is a light unit with colored light effects. It was developed and designed for pro- fessional use in the field of event technology - exclusively indoors. The device may only be used by persons with sufficient physical, sensory and mental abilities as well as the appropriate knowledge and experience.
- Page 6 IMPORTANT! Overhead mounting requires a lot of experience. This includes knowledge of the load bearing capac- ity, the installation material used and the safety inspections of the material and the projector used, but the required experience is not limited to this. If you do not have the appropriate qualification. Instead, commission a professional installer.
-
Page 7: Part 4. Functions And Operations
Connect the "TRINITY150LED to the mains. The device performs the usual reset procedure. Wait until it's done. The LCD display with 4-button operation is the heart of the "TRINITY150LED". This can be used to set all functions and modes. Below, the individual functions and modes are listed in tabular form. - Page 8 DMX addressing. a) Press the (Enter) key until “DMX Address” is displa- yed. b) Press the ▲ (Up) or ▼ (Down) button to select the Address Address Setting desired address. c) As soon as the correct address is shown on the dis- play, confirm with the (OK) key d) Press the (Return) key to exit the selection without saving.
- Page 9 With this function you can reset the device. Head Reset a) Press the (Enter) key until "Reset" is displayed. Pan/Tilt Re- Manual b) To select the desired reset functions, press the ▲ (Up) or ▼ (Down) button. Reset c) To confirm and exit the menu, press the (OK) key d) Press the (Return) key to exit the selection without saving.
- Page 10 With this function you can set the time. a) Press the (Enter) key until “Time” is displayed. b) Press the ▲ (Up) or ▼ (Down) button to select the Time desired time. c) To confirm and exit the menu, press the (OK) key d) Press the (Return) key to exit the selection without saving.
-
Page 11: Connections
Display lighting (The display goes dark after 15 se- conds without pressing a button or is always on.) Auto a) Press the (Enter) key repeatedly until the display shows "Settings". b) Press the ▲ (Up) or ▼ (Down) button until "On" or Backlight Setting "Off"... -
Page 12: Connections In Dmx Mode „Dmx
Color International Brown Phase Blue Zero Yellow/green Ground Ground must be connected! When changing the fuse, always disconnect the mains plug and only use the specified fuse types! DMX connection in DMX mode: An XLR connector as a DMX output, an XLR connector as a DMX input. 3-pin XLR- Connector: 5-pin XLR-Connector: Pin Function:... -
Page 13: Master-Slave Mode
Then, connect the DMX output of the first slave device to the DMX input of the second slave device, and so on. 4.6 STAND-ALONE mode: A TRINITY150LED can also be used in stand-alone mode without a DMX controller. Disconnect Trinity150LED from the controller and call the pre programmed program. - Page 14 TILT 0-255 TILT movement TILT Fine 0-255 TILT FINE movement Pan/Tilt Speed 0-255 PAN/TILT speed Dimmer 0-255 Dimmer 0-100% Dimmer Fine 0-255 Dimmer fine Strobe Shutter closed 4-103 Strobe Effect, from slow to fast 104-107 No Strobe Effect (Shutter open) 108-207 Pulsing strobe, from slow to fast 208-212...
- Page 15 9-11 Gobo3 12-14 Gobo4 15-17 Gobo5 18-20 Gobo6 21-23 Gobo7 24-26 Gobo8 27-29 Gobo9 30-32 Gobo10 33-35 Gobo11 36-38 Gobo12 39-41 Gobo13 42-44 Gobo14 45-47 Gobo15 48-50 Gobo16 Statische Gobos 51-58 Gobo 1 Shake: From slow to fast 59-66 Gobo 2 Shake: From slow to fast 67-74 Gobo 3 Shake: From slow to fast 75-82...
- Page 16 Rotierende Go- Open 6-11 Gobo1 12-17 Gobo2 18-23 Gobo3 24-29 Gobo4 30-35 Gobo5 36-41 Gobo6 42-47 Gobo7 48-53 Gobo8 54-63 Gobo 1 Shake: From slow to fast 64-73 Gobo 2 Shake: From slow to fast 74-83 Gobo 3 Shake: From slow to fast 84-93 Gobo 4 Shake: From slow to fast 94-103...
- Page 17 Focus fine 0-255 Focus fine 0-100% Zoom 0-255 Zoom 0-100% Zoomv fine 0-255 Zoom fine 0-100% Service 0-31 No function 32-63 Head Reset 64-95 Resset TILT/PAN 96-127 Reset All 128-159 Dimmer «Exp-Curve» 160-191 Dimmer «Linear» 192-223 Dimmer «Log-Curve» 224-255 Dimmer «S-Curve» Roto gobos: Outer diameter: 12 mm +0/-0,2 mm...
- Page 18 3. Turn the desired gobo wheel until the gobo to be replaced is at the top. 4. Grasp the gobo holder (3) by its teeth, lift it slightly off the gobo wheel and pull out the holder. ATTENTION: For glass gobos, do not touch the glass with your fingers! 5.
-
Page 19: Part 8. Technical Specifications
Color wheel Part 6: Troubleshooting. The device does not work, no light: Check the mains connection and the main fuse. No response to the DMX controller: Check the DMX connectors and cables for correct connection. Check the address settings and the DMX polarity. Check whether the DMX cables are near or next to high voltage cables. - Page 20 MODEL NAME: TRINITY150LED Product type: LED moving head Type: Hybrid Spot / Wash / Beam LED Number: 1 pc LED LED Type: Osram Led Chip, white Beam angle: 2°-22° Static Gobos: 16 + open Rotation Gobos: 8 indexing + open...
-
Page 21: Part 9. Environmental Protection
WEEE-Reg.-Nr. Deutschland: DE91898274 Part 10. WARRANTY: INVOLIGHT devices are subject to the valid legal warranty provisions. Check with your dealer for the valid warranty conditions. The following conditions apply when purchasing an INVOLIGHT product: Only authorized dealers determined by INVOLIGHT may carry out repairs to INVOLIGHT devices. The warranty claim expires if an unauthorized service, technician or a private person undertakes a repair attempt or opens the device. - Page 22 No liability is assumed for printing errors and resulting errors. If in doubt, consult your INVOLIGHT dealer! Part 11. Declaration of conformity. The devices marketed by INVGroup Germany GmbH comply with the essential requirements and other relevant specifications of the directives EMC Directive 2014/30 / EU and LVD Directive 2014/35 / EU...
- Page 23 www.involight.com...
