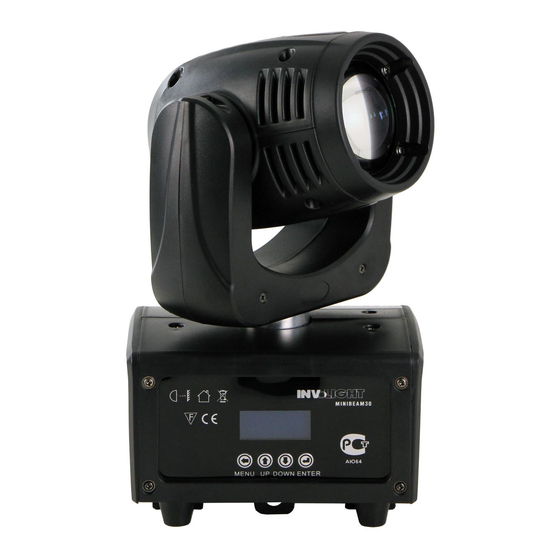

- Page 1 Mini 30W White LED Beam Moving Head Light User Manual Please keep the manual carefully for future reference.
- Page 2 Thank you for your patronage. We are confident that our excellent products and service can satisfy you. For your own safety, please read this user manual carefully before installing the device. In order to install , operate, and maintain the lighting safety and correctly. We suggest that the installation and operation should be done by the verified technician and follow the instruction strictly.
-
Page 3: Description Of The Device
1. Description of the Device 1*30W high power white LED; ● Power supply: 100~240VAC 50~60Hz ● Rated power: 37W ● Average of 50,000 hours of super-long LED life, low energy consumption, energy conservation ● and environmental protection LED; Quickly scan speed, Pan scanning 630 degree only 1.2 seconds, and Tilt scanning 235 degree ●... -
Page 4: Safety Instructions
2. Safety Instructions CAUTION! Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching wires! This device has left the factory in perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual. -
Page 5: General Guidelines
General Guidelines ►This device is a lighting effect for professional use on stages, in discotheques, theaters, etc., the device was designed for indoor use only. ►This fixture is only allowed to be operated with the max alternating current which stated in the technical specifications in the last page of this manual. - Page 6 ►The installation must always be secured with a secondary safety attachment, e.g. an appropriate safety rope.Never stand directly below the device when mounting, removing or servicing the fixture. ►The operator has to make sure the safety relating and machine technical installations are approved by an expert before taking the device into operation for the first time.
- Page 7 XLR Mounting plug XLR Mounting socket DMX-512 connection with DMX terminator For installations where has it has too much lines or lights environment it is recommended to use a DMX terminator. This helps in preventing corruption of the digital control signal by electrical noise. The DMX terminator is simply an XLR plug with a 120 Ω...
- Page 8 6. Menu map and operation Display Data AddreSet 1-512 PanRev TiltRev MotorSet PanAdj Encoder PanMode AutoProg Master/Slave MIC Cont Master/Slave MIC Sensy 0-100% ChanTest Set DMX channel and testing channel NoSigSet Close/Scene/Auto/Music Mode Set Standard/Basic/User Mode UserMode Set DMX channel function under User mode ResetDef ResetDef Versions...
- Page 9 Channel Instruction 8 channels (Standard) Channel Value Function Display 000-255 Pan: 000-255 Pan fine Pan1: 000-255 Tilt Tilt: 000-255 Tilt fine Tilt1: Pan/Tilt movement speed(from Spee: 000-255 fast to slow;226-235 off; more than 225, the quickest speed) 000-255 White Strobe Stro: 0-16 Close 000-255...
- Page 10 Spectral wavelength analysis system Spectral wavelength analysis system Sample Item: MINIBEAM30 Sample Number: 1 Environment Temperature: 25.0 ºC Testing Date: Dec.19,2013 Testing Time: 08:40:27 Environment Humidity: 15.0% Color Technical Parameter 470.5 nm Peak Wavelength: 442.0 nm Peak Wide: 25.4 nm Main Wavelength: Color Coordinate XY: (.2792,.2632)
-
Page 11: Cleaning And Maintenance
Cleaning and maintenance The operator has to make sure that safety-relating and machine-technical installations are inspected by an expert after every four years in the course of an acceptance test. The operator has to make sure that safety-relating and machine-technical installations are inspected by a skilled person once a year.
