Page 1: User Manual

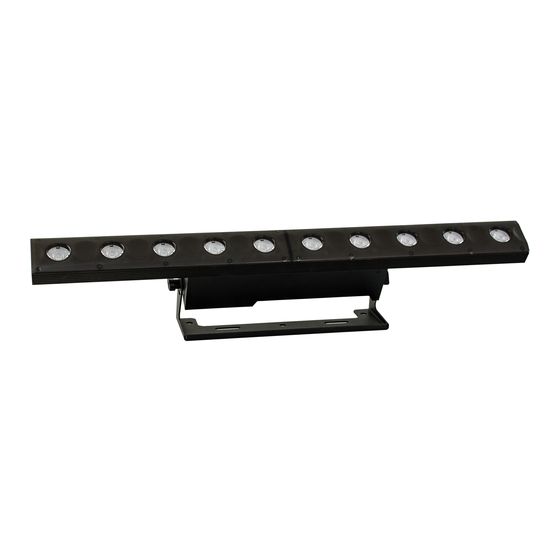

LED 2in1 Blinder Bar User Manual Thanks for choosing our goods please read this manual carefully before your operating and keep this manual for future needs... - Page 2 Thank you for purchasing LED 2in1 Blinder Bar, every unit has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit has arrived intact.
- Page 3 is subject to change without notice. We reserve the right to modify and upgrade its range of products, with no obligation to integrate these changes into products already sold. Warning ● To prevent or reduce the risk of electrical shock or fire,do not expose the unit to rain or moisture.
- Page 4 Specifications and Features: • LEDs: 10pcs 3W CREE LEDs, 60pcs 5050SMD RGB LEDs • Power Consumption:50W • DMX Channels: 190 DMX Channels • Refresh Rate: 500Hz • Power: 6V 13.3A • 4 DMX Channels Mode: 9CH,15CH,42CH,190CH • Control Protocol: Art-net, Kling-net, DMX •...
- Page 5 Product View (Front) (Back) Product Description • 1: Menu • 2:Enter...
- Page 6 • 3: Up • 4:Down • 5:Display • 6:Safety loop • 7:3pin DMX Out • 8:5pin DMX Out • 9:Ethernet In • 10:Ethernet out • 11:3pin DMX In • 12:5pin DMX In • 13:Ground • 14:Powercon In • 15:Fuse • 16:Powercon Out •...
-
Page 7: Program Speed
DMX Channel function and values: 9 DMX Channels: Dimmer Strobe Green Blue Warm White Dimmer Program 1~15 Program 16~30 238~255 Loop program Program Speed 15 DMX Channels: Dimmer Strobe Warm White 1 Dimmer Warm White 2 Dimmer Warm White 3 Dimmer Warm White 4 Dimmer Warm White 5 Dimmer Warm White 6 Dimmer... - Page 8 Warm White 7 Dimmer CH10 Warm White 8 Dimmer CH11 Warm White 9 Dimmer CH12 Warm White 10 Dimmer CH13 All 5050 Red CH14 All 5050 Green CH15 All 5050 Blue 42 DMX Channels: Dimmer Strobe Warm White 1 Dimmer Warm White 2 Dimmer Warm White 3 Dimmer Warm White 4 Dimmer...
- Page 9 CH14 Green square 1 CH15 Blue square 1 CH16 Red square 2 CH17 Green square 2 CH18 Blue square 2 .................. CH40 Red square 10 CH41 Green square 10 CH42 Blue square 10 190 DMX Channels: Red 1 Green 1 Blue 1 Red2 Green 2...
- Page 10 CH12 Blue 4 CH13 Red5 .................. CH177 RED 60 190 DMX Channels: Red 1 Green 1 Blue 1 Red2 Green 2 Blue 2 Red 3 Green 3 Blue 3 CH10 Red 4 CH11 Green 4 CH12 Blue 4 CH13 Red5 ..................
-
Page 11: Troubleshooting
CH180 Warm White 1 CH181 Warm White 2 CH182 Warm White 3 CH183 Warm White 4 CH184 Warm White 5 CH185 Warm White 6 CH186 Warm White 7 CH187 Warm White 8 CH189 Warm White 9 CH190 Warm White 10 Troubleshooting Following are a few common problems that may occur during operation.Here are some suggestions for easy troubleshooting:... - Page 12 b. If the DMX LED is on and no response to the channel, check the address settings and DMX polarity. c. If you have intermittent DMX signal problems, check the pins on connectors or on PCB of the unit or the previous one. d.
- Page 13 a. Clean with soft cloth using normal glass cleaning fluid. b. Always dry the parts carefully. Warranty The LED 2in1 Blinder Bar fixture is guaranteed against manufacturing defects for the duration of one (1) year from the date of purchase. This warranty does not cover the unit for evidence of physical shock or damage caused by abuse or any use not in accordance with the operating conditions set forth in the present user manual.
