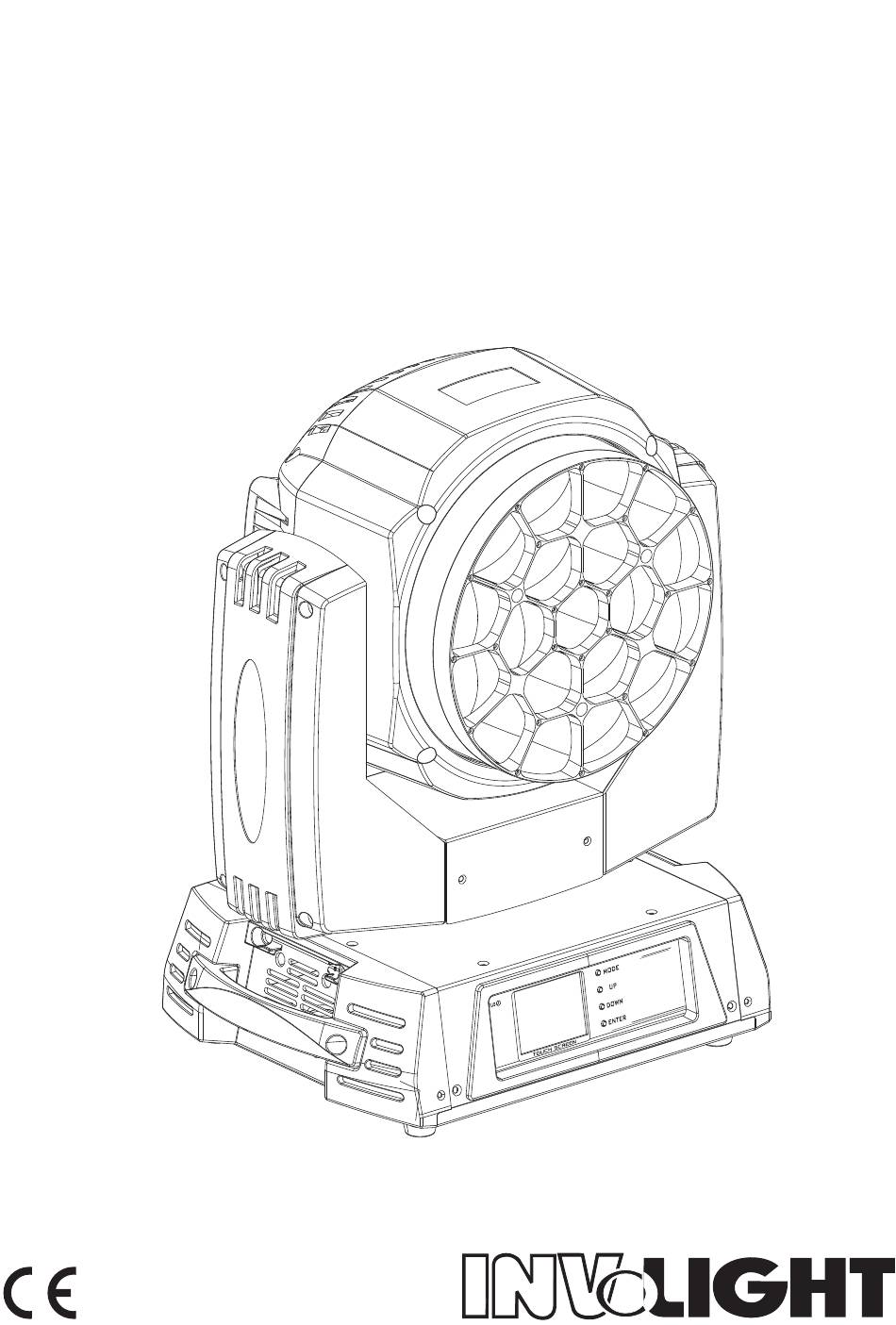

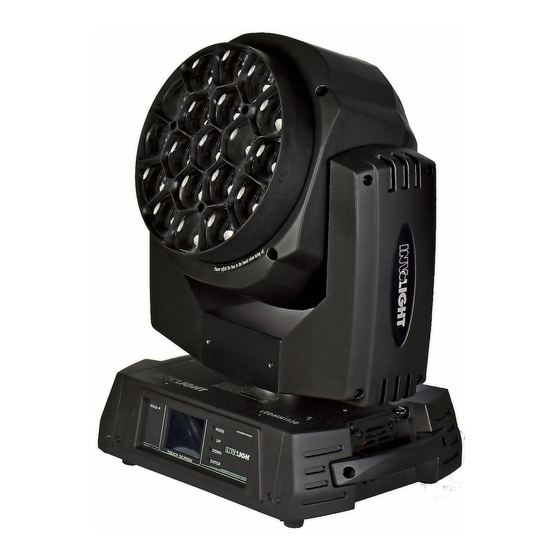

  • Page 1 LED MH 1930 USER MANUAL...

  • Page 3: Table Of Contents

    Table of content 1.Open-Package guidelines............... 　１.１Package....................1 2.Safety instructions..................1 3.Operating determination.................3 4.Rigging the fixture...................4 4.1 Mounting.....................4 4.2Installing the Clamps................4 4.3 Power supply connection and cut off...........5 4.4 Power Connection................6 4.5 DMX-512 connection/connection between fixtures......6 Description of the device............
  • Page 4 Congratulations on choosing our products! Please carefully read this instruction manual in its entirety and keep it well for using reference. This manual contained about the installation and the relative using information of this products. Plese refere this manual's relative instruction when using this equipment.

  • Page 5: Open-Package Guidelines

    1.Open-Package guidelines This equipment is made of new style,high intensity plastic.It fully shows the modem times light charac teris- tic with teristic with beauty struture. And it is made accord to CE standard. Fully agree with the internation standard of DMX 512 agreement.
  • Page 6 Never let the power-cord come into contact with other cables! Handle the power cord and all connections with particular caution! Make sure that the available voltage is not higher than stated on the rearpanel. Always plug in the power plug least. Make suer that the power-switch is set to off-position before you con ections with themains with particular caution! Make sure that the power-cord is never crimped or damaged by sharp edges.Check the decice and the p- ower-cord from time to time.

  • Page 7: Operating Determination

    Disposing This product is supplied in compliance with European Directive 2012/19/EU-Waste Electrical and Electronic Equipment (WEEE). To preserve the environment please dispose/recycde this product at the end of its life according to the local regulation. Battery This product contains a rechargeable lead-acid or lithium iron tetraphosphate battery. To pre- serve the environment,please dispose the battery at the end of its life according to the regul- ation in force.

  • Page 8: Rigging The Fixture

    4.Rigging the fixture 4.1 Mounting Pay attention to the regulations of CE. Installation by qualified staff to complete. For the various mounting positions of the FIXTURE(standing on the floor, sideways or hanging different accessories kits are available. Through this a safe and firm installation is assured. You’ll find special connectors on the bottom side of the system which are put to use here.

  • Page 9: Power Supply Connection And Cut Off

    The projector can be placed directly on the stage floor or rigged in any orientation on atruss without alte- ring its operation characteristics. For overhead use,always install a safety-rope that can hold at least 10 times the weight of the fixture.You must only use safety-ropes with screw on carabines.Pull the safety-rope through the two apertures on the bottom of the base and over the trussing system etc.

  • Page 10: Power Connection

    4.4 Power Connection If you wish to change the power supply settings, see the chapter appendix Connect the fixture to the mains with the enclosed power cable and plug. Warning: please verify the power of the power supply equipment prior to the connection! Earth wire must be grounded! CABLE(EU) CABLE(US)

  • Page 11: Description Of The Device

    DMX Terminator Diagram -For installations where the DMX cable has to run a long distance or is In an electrically noisy environment it is recommended to use a DMX terminator. This help in preventing corruption of the signal by electrical noise. The DMX terminato r is simply an XLR plug witha Ω...

  • Page 12: Dimension

    6.Dimension 428.5 ZOOM IN ZOOM OUT 286.5 190.5 ZOOM IN ZOOM OUT 493.5 286.5 - 8 -...

  • Page 13: Display Control

    7.Display control 7.1 Navigation in the Menu Using the buttons or touch screen, and this can be simply and easily set the address code and functions code. If you view or modify the lighting feature set, then press ENTER button, the display will enter the menu interface.
  • Page 14 Channel Mode Standard Dmx Input Dmx Input Shapes S t a n d a r d Extended ART-NET Wired Input Extended Rgbw S h a p e s Full Wireless Input Wireless In/ Basic Basic XLR out ART-NET Pixels Pixels Mode Down Enter...

  • Page 15: Menu List

    7.3 Menu list Remark Universe DMX Address DMX Address 001~XXX Remark STANDARD 1~21 SHAPES 1~35 Channel Mode default Mode1 EXTENDED 1~78 EXTENDED RGBW 1~97 FULL 1~92 Fixture Id 0001~XXXX Lamps address *Multi Mode（use it DMX Or ART-NET Multi Mode（use it under the under the module with DMX+ART-NET module with art-net）...

  • Page 16: Dmx Protocol

    8.DMX protocol 8.1 Unit model(A mode) Mode1 Mode2 Mode3 Mode4 Mode5 Fade Type Function Value Black→Red 0-100% 0-255 Red fine Red fine 0-255 Green Black→Green 0-100% 0-255 Green fine Green fine 0-255 Blue Black→Blue 0-100% 0-255 Blue fine Blue fine 0-255 White Black→White 0-100%...
  • Page 17 Mode1 Mode2 Mode3 Mode4 Mode5 Fade Type Function Value Orange 115-116 Light Rose English Rose Light Salmon Middle Rose Dark Pink 121-122 Magenta 123-124 Peacock Blue Med Blu Green Steel Blue Light Blue Dark Blue 129-130 Leaf Green 131-133 Dark Green 134-135 Mauve 136-137...
  • Page 18 Mode1 Mode2 Mode3 Mode4 Mode5 Fade Type Function Value Dimmer Curve 4 53-57 RGBW Gamma curve 1 – gamma = 1.0 58-62 RGBW Gamma curve 2 – gamma = 1.5 63-67 RGBW Gamma curve 3 – gamma = 2.0 68-72 Halogen Lamp Simulation OFF (Default) 73-77 Halogen Lamp Simulation, type 1 (750 W)
  • Page 19 Mode1 Mode2 Mode3 Mode4 Mode5 Fade Type Function Value Shape29 UNUSED RANGE Shape30 UNUSED RANGE Shape31 Shape32 Shape33 Shape34 Shape35 Shape36 Shape37 Shape38 Shape39 Shape40 Shape41 Shape Shape42 Selection Shape43 Shape44 Shape45 Shape46 Shape47 Shape48 Shape49 Shape50 UNUSED RANGE Shape51 Shape52 Shape53 Shape54...
  • Page 20 Mode1 Mode2 Mode3 Mode4 Mode5 Fade Type Function Value CLOSED STROBE SLOW→FAST（1→25 4-103 OPEN 104-107 PULSATION SLOW→FAST（0.5-25 108-207 Background OPEN 208-212 Strobe RANDOM SLOW STROBE 213-225 RANDOM MEDIUM STROBE 226-238 RANDOM FAST STROBE 239-251 OPEN 252-255 UNUSED RANGE NO selection pixe l Ring 2 Background...
  • Page 21 Mode1 Mode2 Mode3 Mode4 Mode5 Fade Type Function Value Green LED 10 Green 0-100% 0-255 Blue LED 10 Blue 0-100% 0-255 White LED 10 White 0-100% 0-255 Red LED 11 Red 0-100% 0-255 Green LED 11 Green 0-100% 0-255 Blue LED 11 Blue 0-100% 0-255 White LED 11 White 0-100% 0-255...

  • Page 22: Multivariable Model(B Mode)

    8.2 Multivariable model(B mode) PIXEL ENGINE BASIC ENGINE STANDARD SHAPES Pixel Engine need to be enabled through the CHAN- CHANNEL CHAN- CHANNEL function channel. MODE MODE RGBW CHAN- CHANNEL CHAN- CHANNEL Red fine Red fine MODE MODE Green Green Red LED 1 Red LED 1 Green fine Green fine...
  • Page 23 NOTE: On conclusion of resetting in case of absence of DMX signal, Pan & Tilt move to the "Home"posi- tion (Pan 128 bit - Tilt 128 bit ) all the others channels stay at 0 bit. MACRO COLOUR BIT VALUE CHANNEL UALUE EFFECT...
  • Page 24 Function CHANNEL FUNCTION DMX VALUE To activate following functions, stop in DMX value for at least 5 seconds(Use of the light channel): Reserved 0-11 Pan Tilt Fast (Default) 12-24 Pan Tilt Normal 25-37 Dimmer Curve 1 38-42 Dimmer Curve 2 43-47 Dimmer Curve 3 48-52...
  • Page 25 LED reference number for pixel mapping TILT: channel 16 @ 200 bit Standard edition Online edition - 21 -...

  • Page 26: Maintance And Cleaning

    9.Maintance and cleaning DANGER:Disconnect from the mains before starting any maintenance work. It is absolutely essential that the fixture is kept clean and that dust,dirt and smoke fluid residues must not buildup on or within the fixture. Otherwise, the fixtures light-output will be significantly reduced. Regular cleaning will not only ensure the maximum light-output, but will also allow the fixture to function reliably through out its life.

  • Page 27: Menu Function

    10.4 Menu Function 1．Touch screen，English menu. 2．DMX values and communication quality values can be displayed in each channel.. 3．Monitor could ON/OFF automatically. 4．Show fixture use time. 5． After the DMX signal is disconnected, the display will be bright and dark. 6．The screen can be set automatically to flip or hand over.

  • Page 28: Electronic Drawing

    11.Electronic drawing Standard edition Titl En Pan En Titl Sensor Pan Sensor Foucs RS485 BUS Motor 1&2&3 90 Fan Titl Motor Motor 60 Fan2 60 Fan1 Rotating Lens Sensor Rotating Lens Motor Wireless Receive Display Board Board Battery - 24 -...
  • Page 29 Online edition Titl En Pan En Titl Sensor Pan Sensor Foucs RS485 BUS Motor 1&2&3 90 Fan Titl Motor Motor 60 Fan2 60 Fan1 Rotating Lens Sensor Rotating Lens Motor Wireless Receive Display Board Board Battery - 25 -...
  • Page 30 Note: The above contents for reference only and is subject to change without prior notice, please take specification you have on hand and our company reserves the final right of interpretation.
