Page 2: Specification

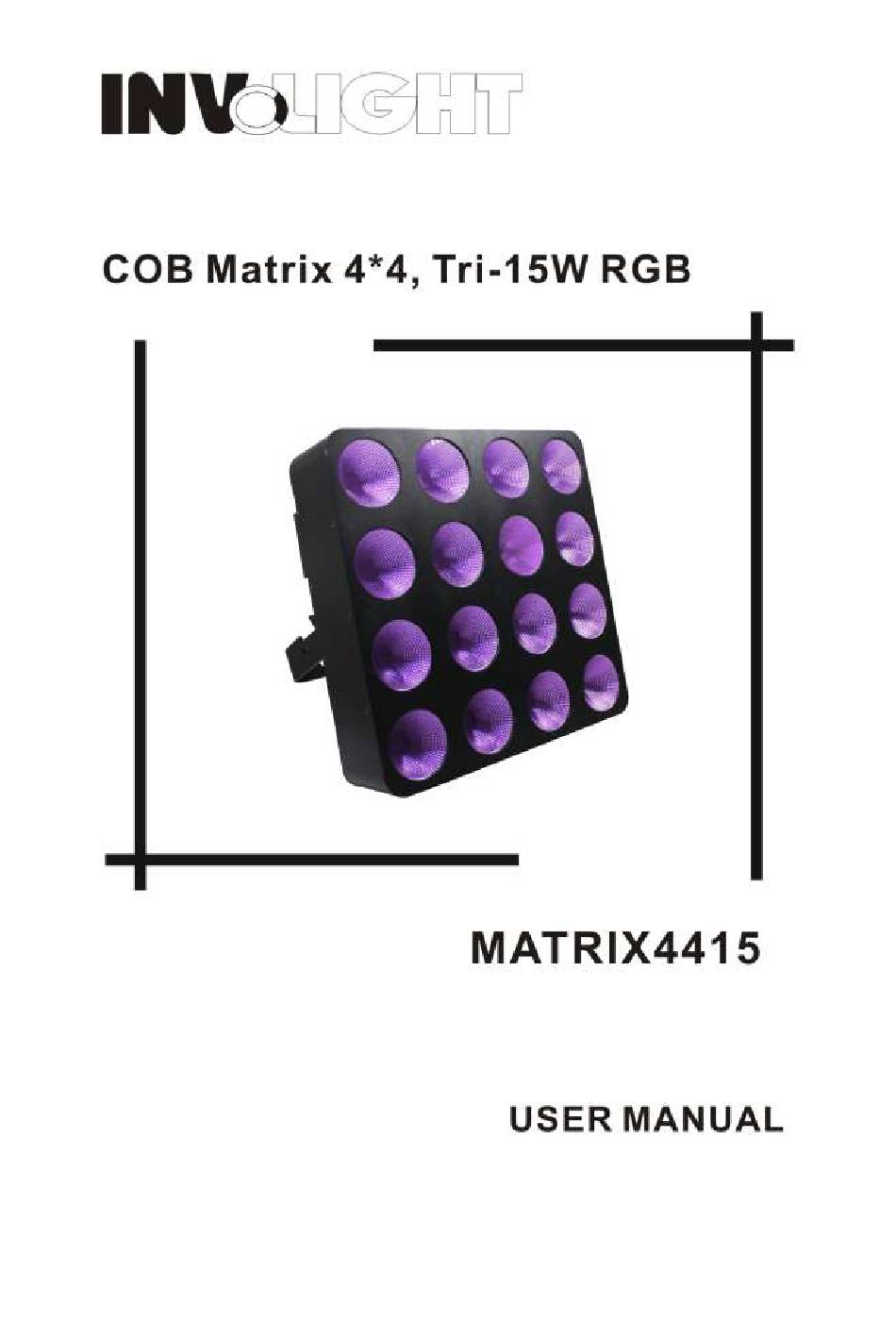

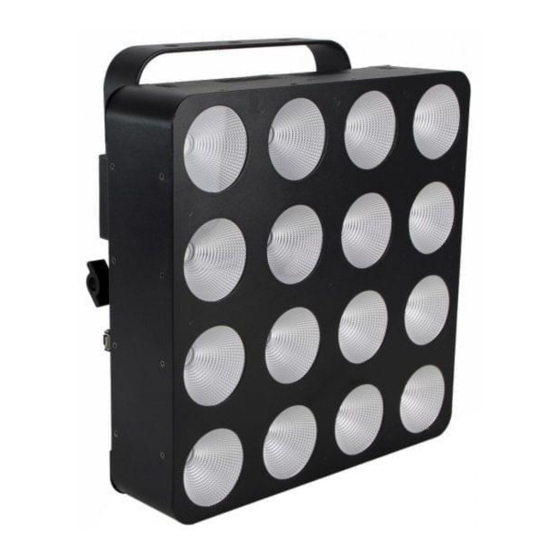

COB Matrix 4*4, Tri-15W RGB User Manual Please read the manual before operation. A. SPECIFICATION 1. Voltage: AC 100V/240V, 50Hz/60Hz 2. Power consumption: 230W 3. LED: 16pcs*15W RGB 4. Control feature: DMX mode, auto running, built-in programs, sound-active, slave mode, static color 5. -
Page 3: Dmx Mode
25”; 4) Press the “SETUP”, enter to setup the programs operation speed menu “SP: 080”; 5) Press the “UP” or “DOWN”, set the speed value “SP: 001 – SP: 100”; 6) Press the “SETUP”, enter to setup the strobe programs operation menu “FS: 000”; 7) Press the “UP”... - Page 4 112—119 PROGRAM08 120—127 PROGRAM09 128--135 PROGRAM10 136—143 PROGRAM11 144—151 PROGRAM12 152—159 PROGRAM13 160—167 PROGRAM14 168—175 PROGRAM15 176—183 PROGRAM16 184—191 PROGRAM17 192—199 PROGRAM18 200--207 PROGRAM19 208—215 PROGRAM20 216—223 PROGRAM21 224—131 PROGRAM22 232—239 PROGRAM23 240—247 PROGRAM24 Sensitivity 248—255 SOUND 0—255 DMX mode 2: 03 CHs， Green Blue DMX mode 3: 05 CHs,...
- Page 5 DMX mode 6: 48 CHs, Red 1 Green 1 Blue 1 Red 2 Green 2 Blue 2 CH10 CH11 CH12 Red 3 Green 3 Blue 3 Red 4 Green 4 Blue 4 CH13 CH14 CH15 CH16 CH17 CH18 Red 5 Green 5 Blue 5 Red 6...
