9. Maintenance and Cleaning
The following points have to be considered during the inspection:
1. All screws for installing the devices or parts of the device have to be tightly connected and
must not be corroded. 2. There must not be any deformations on the housing, color lenses,

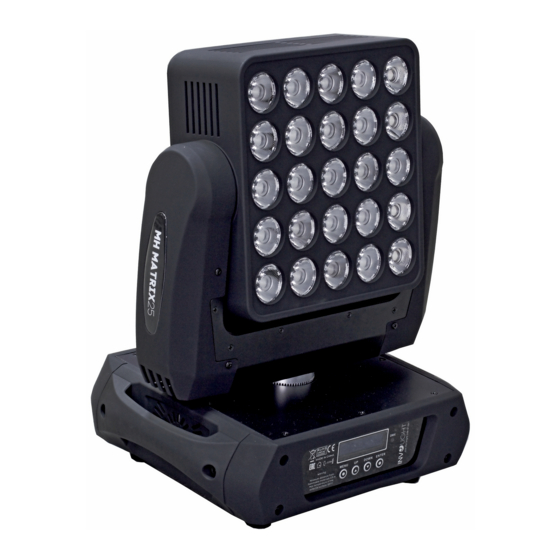

MH MATRIX25 moving head
fixations and installation spots (ceiling, suspension, trussing). 3. Mechanically moved parts
must not show any traces of wearing and must not rotate with unbalances. 4. The electric
25pcs 12W CREE RGBW 4-in-1
power supply cables must not show any damage, material fatigue or sediments.
Further instructions depending on the installation spot and usage have to be adhered by a
skilled installer and any safety problems have to be removed.
In order to make the lights in good condition and extend the life time, we suggest a regular
cleaning to the lights.
1) Clean the inside and outside lens each week to avoid the weakness of the lights
due to accumulation of dust.
2) Clean the fan each week.
3) A detailed electric check by approved electrical engineer each three month, make sure that the
circuit contacts are in good condition,
prevent the poor contact of circuit from overheating.
We recommend a frequent cleaning of the device. Please use a moist, lint- free cloth. Never
use alcohol or solvents. There are no serviceable parts inside the device. Please refer to the
instructions under "Installation instructions". Should you need any spare parts, please order
genuine parts from your local dealer
User Manual
KEEP THIS MANUAL FOR FUTURE NEEDS
.11.
Advertisement
Related Manuals for involight MH MATRIX25
Summary of Contents for involight MH MATRIX25
-
Page 1: Maintenance And Cleaning
1. All screws for installing the devices or parts of the device have to be tightly connected and must not be corroded. 2. There must not be any deformations on the housing, color lenses, MH MATRIX25 moving head fixations and installation spots (ceiling, suspension, trussing). 3. Mechanically moved parts must not show any traces of wearing and must not rotate with unbalances. -
Page 2: Key Features
1. Unpacking 8. Key Features Thank you for choosing LED matrix moving head. For your own safety, please read this Voltage: AC90-260V,50-60Hz manual before installing the device. This manual covers the important information on installation Power: 400W and applications. Please install and operate the fixture with following instructions. Meanwhile, Led source: 25pcs 12W CREE RGBW 4-in-1 LEDs please keep this manual well for future needs. -
Page 3: Safety Instructions
117 Channels mode 2. Safety Instructions Function value Details Pan movement 0-255 0~540 degree 0-55 Tilt non movement Unlimited Pan 56-155 Pan unlimited clockwise rotate slow to fast movement 156-255 Pan unlimited reversely rotate slow to fast Pan fine 0-255 16 bit Pan fine adjustment Tilt 0-255... - Page 4 3. Fixture instruction 29 channels mode: Function value Details Pan movement 0-255 0~540 degree 0-55 Tilt non movement Unlimited Pan 56-155 Pan unlimited clockwise rotate slow to fast movement 156-255 Pan unlimited reversely rotate slow to fast Pan fine 0-255 16 bit Pan fine adjustment Tilt 0-255...
-
Page 5: Dmx Channels
Operation Instructions DMX channels Function value Details -The moving head is for wash effect for on-site decoration purpose. Pan movement 0-255 0~540 degree 0-55 Tilt non movement -Don’t turn on the fixture if it’s been through severe temperature difference like after transportation Unlimited Pan 56-155 Pan unlimited clockwise rotate slow to fast... -
Page 6: Menu Operations
Never stand directly below the device when mounting, removing, or servicing the fixture from a 6. Menu Operations periodic safety inspection of all installation material and the fixture. If you lack these qualifications, do not attempt the installation yourself. Improper installation can result in bodily injury. Button instruction: Be sure to complete all rigging and installation procedures before connecting the main power cord to the appropriate wall outlet.
