WallBox eNext Series Installation Manual
SINGLE-PHASE CHARGE POINT

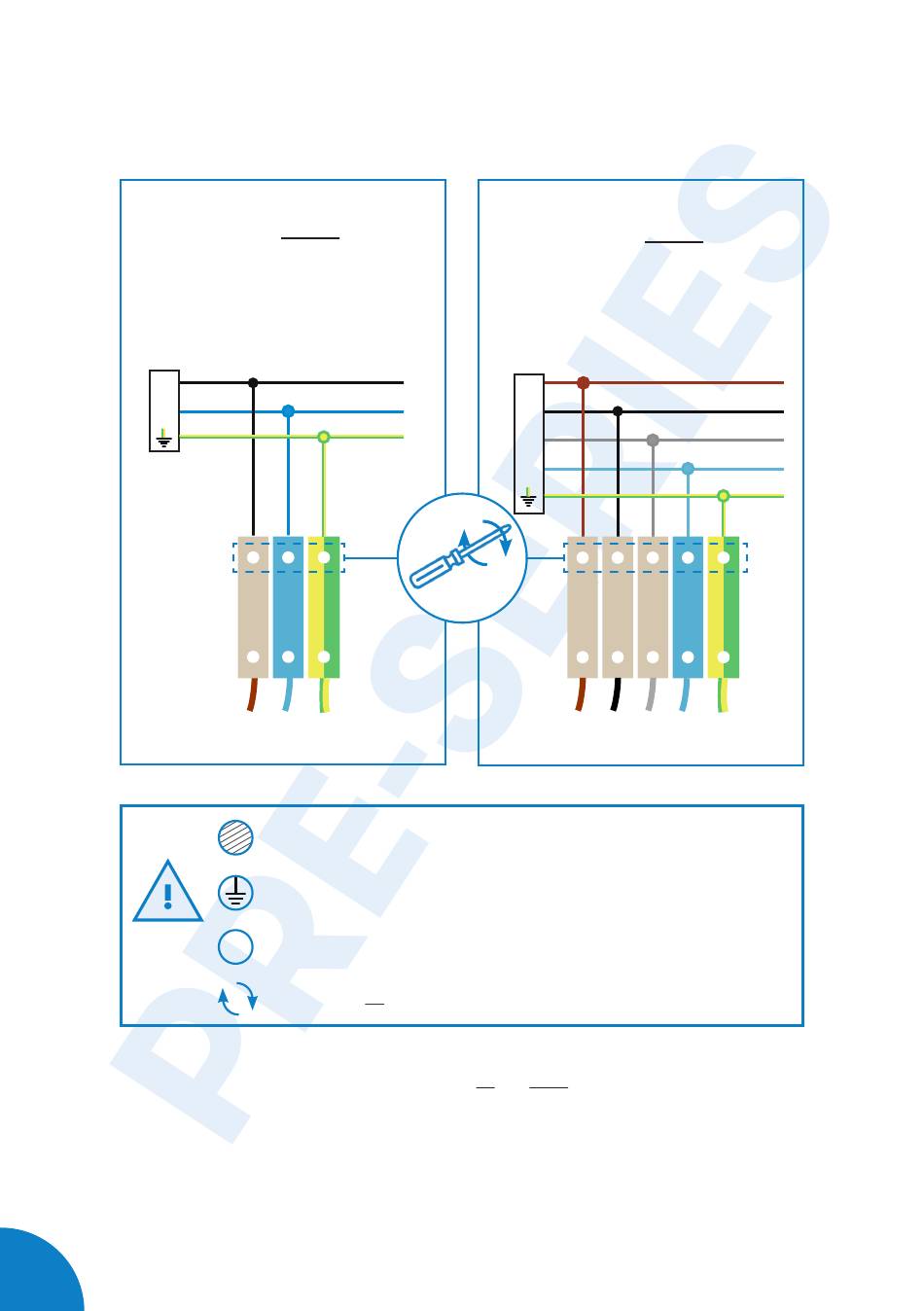

Connect to the 230VAC.
•
L
N
Note: The proper earthing system must be TT or TN-S. The ground loop impedance
measurement for the entire installation must be less than 80 ohms; however, it could be even
less if required by national regulations. At least once a year it is recommended to carry out
the verification of the installation grounding by qualified personnel when the terrain is drier.
16
S
Terminal block maximum cross-section: 25mm
Do not forget to connect the ground cable to the ground terminal
Type of cable allowed by the terminal block: Aluminium & copper
Al/Cu
Make sure all screws are securely tightened at 4...5 Nm
THREE-PHASE CHARGE POINT
•
Connect to the 400VAC.
•
If the Power Supply is Single-
Phase, connect L1 and N.
L1
L2
L3
N
