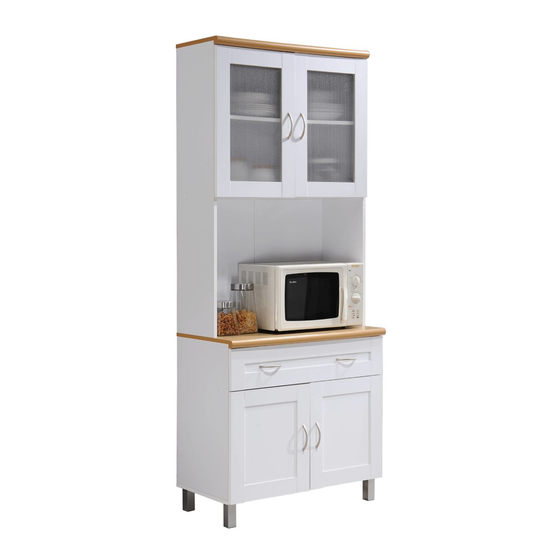

- Page 1 Hodedah www.hodedah.com support @hodedah.com HIKF 92-MOP L 31 '' X D 17'' X H 42...
- Page 2 Hodedah www.hodedah.com support @hodedah.com PART & HARDWARE LIST PLASTIC DOWEL M8 X 25MM CB SCREW M3.5 X 12MM MINIFIX 5654 CB SCREW M3.5 X 16MM HINGES " (OUTSIDE) CABINET STOPPER CB SCREW M4 X 35MM CSK CAP M6 X 40MM...
- Page 3 Hodedah www.hodedah.com support @hodedah.com - This product contains small components, please ensure that they are kept away from small children. - THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. DO NOT RETURN PRODUCT TO THE STORE.
-
Page 4: Helpful Hints
- Never push, drag or pull your furniture (especially on carpet). Warranty Information Hodedah warrants this product to be free from defects in material and workmanship agrees to remedy any such defect. This warranty covers one year from the date of original purchase. This is solely limited to be repair or replacement of defective parts and no assembly labor is included. -
Page 5: Left View
Hodedah www.hodedah.com support @hodedah.com STEP 1 PLASTIC DOWEL M8 X 25MM PVC SHELF SUPPORT LEFT VIEW RIGHT VIEW LEFT VIEW RIGHT VIEW - Insert 22 x Plastic dowel (A) into panels (2), (3), (4), (10), (11) & (12) using a plastic hammer. - Page 6 Hodedah www.hodedah.com support @hodedah.com STEP 2 HINGES (OUTSIDE) CB SCREW M3.5 X 12MM CABINET STOPPER CB SCREW M3.5 X 16MM DRAWER SLIDE 14" MINIFIX 5654 BOTTOM VIEW BOTTOM VIEW LEFT VIEW RIGHT VIEW LEFT VIEW RIGHT VIEW - Insert 4 x Minifix 5654 (J2) into the bottom of Panel (9) using a Philips head screwdriver.
- Page 7 Hodedah www.hodedah.com support @hodedah.com STEP 3 P/H SCREW M4 X 20MM CSK CAP M6 X 40MM ALLEN KEY HANDLE IP991 (96MM) - PVC - Fix 4 x Handle IP994 (H1) to Panel (6), (7), (15) & (16) with 8 x P/H Screw M4 x 20mm (H2) using a Philips head screwdriver.
- Page 8 Hodedah www.hodedah.com support @hodedah.com STEP 4 ALLEN KEY CSK CAP M6 X 40MM CB SCREW M4 X 25MM - Attach panels (9) to panel (2) & (3) with 4 x Csk Cap M6 x 40mm (E) using Allen key (G).
- Page 9 Hodedah www.hodedah.com support @hodedah.com STEP 5 POWER NAIL " CB SCREW M3.5 X 12MM CB SCREW M4 X 35MM DRAWER SLIDE 14" HANDLE IP994 (96MM) P/H SCREW M4 X 31MM RIGHT LEFT - Attach panels (17) & (19) to panel (18).
- Page 10 Hodedah www.hodedah.com support @hodedah.com STEP 6 MINIFIX 5654 CB SCREW M3.5 X 16MM ALLEN KEY ABS SQUARE LEG (H100MM) - Connect Panel (10) & (11) to Panel Panel (9) base with 4 x Minifix 5654 (J1) using Allen Key (G). Cover the minifix holes by using 4 x Cap (I).
-
Page 11: Job Complete
Hodedah www.hodedah.com support @hodedah.com STEP 7 POWER NAIL " CB SCREW M3.5 X 16MM BACK VIEW - Fix 68 x Power nail (M) into 2 x Panels (8) & 2 x Panel (21) using a hammer. - Attach Panel (6) & Panel (7) Hinges (K) with 4 x CB Screw M3.5 x 16mm (C) into Panel (2) & Panel (3) using Philip screwdriver.
