HODEDAH
Assembly Instructions
This instruction booklet contains important safety information, please read and keep for future reference.
ITEM # HI3DR-G (MOP-SP)

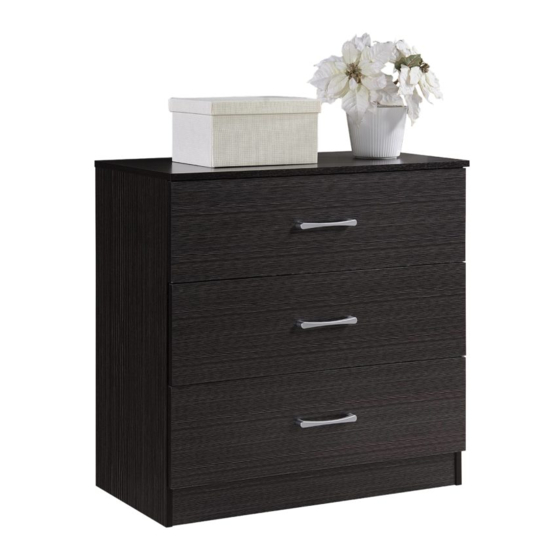

3 DRAWER CHEST
FRONT VIEW
Product Dimensions: Height 30.59" x Width 31.49" x Depth 15.86"
www.Hodedah.com
®
Weight Capacity Per Drawer 25lbs
BACK VIEW
2 people
60 mins
1 YR LTD
1 Box
Advertisement
Table of Contents
Related Manuals for Hodedah HI3DR-G
Summary of Contents for Hodedah HI3DR-G
- Page 1 HODEDAH ® Assembly Instructions 2 people This instruction booklet contains important safety information, please read and keep for future reference. 60 mins ITEM # HI3DR-G (MOP-SP) 3 DRAWER CHEST 1 YR LTD 1 Box FRONT VIEW BACK VIEW Product Dimensions: Height 30.59" x Width 31.49" x Depth 15.86"...
-
Page 2: Warranty
FREE of charge within ONE YEAR of purchase! WARRANTY Hodedah warrants this product to be free from defects in materials and workmanship and agrees to remedy any such defect. This warranty covers one year from the date of original purchase. This is solely limited to replacement of defective parts and no assembly for labor is included. -
Page 3: Product Care And Maintenance
HODEDAH ® · Never open more than one drawer at a time. · The use of tip-over restranits may reduce but not eliminate the risk of tip-over. Let's get started… Helpful hints, read before beginning assembly · Make sure you receive all boxes. If your item is packed in one box, box count will read 1 of 1, likewise if your item is packed in two boxes, box count will read 1 of 2 and second box will read 2 of 2. -
Page 4: Hardware List
HODEDAH ® Hardware List 8 Pcs 15 Pcs 24 Pcs Screw M6 x 40mm Screw M4 x 32mm Screw M3.5 x 14mm 8 Pcs Pvc Cap *For # 11 Drawer Slides 16 Sets 24 Pcs 12 Pcs Mini Fix Pvc Dowel Screw M6.2 x 10mm... - Page 5 HODEDAH ® Accessories 3 Sets * Fix On Side Panels Ⓐ Drawer Slide - A *Fix On Side Panels A & E * Fix On Side Panels Ⓔ * Fix On Drawer Side Panels Ⓘ 3 Sets Drawer Slide - B *Fix On Side Panels I &...
-
Page 6: Parts List
HODEDAH ® Parts List Kick Panel (Front) Kick Panel (Back) & Back Left Side Panel 766 x 90 x 15mm Strengthening Panel 762 x 394 x 15mm 766 x 400 x 15mm 1 Pc 1 Pc 1 Pc Front Strengthening Panel... - Page 7 HODEDAH ® The Breakdown www.Hodedah.com...
-
Page 8: Pre-Assembly
HODEDAH ® Pre - Assembly 1. Place the drawer slide A ⑩ onto the 2 holes area shown at left side of panels and right side of . Then tighten it with 2 screws ⑦ and 1 screw ③ . Do the same for the 3 other slide A ⑩ . - Page 9 HODEDAH ® Pre - Assembly Insert the pvc dowels ⑥ to both end of the panels Using hammer to gently tap them in. Insert, push down and tighten mini fix screw ⑤ , to the non-thru hole of the panel shown, 4pcs.
- Page 10 HODEDAH ® Step 1 1. Place and fix Panels onto Panel by inserting the (Left) dowels onto the non-thru holes at Panel 2. Using Allen key ⑨ to tighten screws ① from the 4 thru holes of panel one by one.
- Page 11 HODEDAH ® Step 2 1. Place and fix Panels onto Panel by pushing and slotting the (Right) dowels onto the non-thru holes at Panel 2. Using Allen key ⑨ to tighten screws ① from the 4 thru holes of panel , one by one.
- Page 12 HODEDAH ® Step 3 Place and fix panel onto panels and panel , and align properly by inserting the 4 (down) mini fix screws ⑤ onto the L-thru holes at top edge of panel . At the same time, inserting panel...
- Page 13 HODEDAH ® Step 4 1. Insert the mini fix ⑤ (nuts) with the cross arrow mark facing upward and aim to panel & 's top thru holes. (As shown) 2. Insert the PVC dowels ⑥ to panel ’s non-thru holes as shown, using hammer to tap them in.
- Page 14 HODEDAH ® Assembly Of Drawers 1. Place panel on each side of panel with Panel 's PVC dowel insert to panel 's non-thru hole and Panel 's mini fix screws insert into Panel 's thru holes as shown. Then tighten mini fix on panel clockwise to lock mini fix up.
- Page 15 HODEDAH ® Step 5 1. Lift up the main unit carefully and let it stand up properly. 2. Cover all the screws ① 's head with the PVC cap provided by pushing the cover's stem onto the hole of screw head one by one for all screws on panels 3.
- Page 16 HODEDAH ® Step 6 1. Place the back Panels onto the back of the main unit as shown, then align them properly for nailing. 2. Then use hammer to nail the nails one by one and at center of 4 side edges.
- Page 17 HODEDAH ® FITTING OF ANTI-TIP SAFETY STRAP STEP 1: · Attach the mounting bracket a to the furniture in the solid part below the top panel a few inches away from the side of the unit. · Screw b through the smallest hole of a .
- Page 18 HODEDAH ® Completion Enjoy & Thank you for purchasing from Hodedah! www.Hodedah.com...
