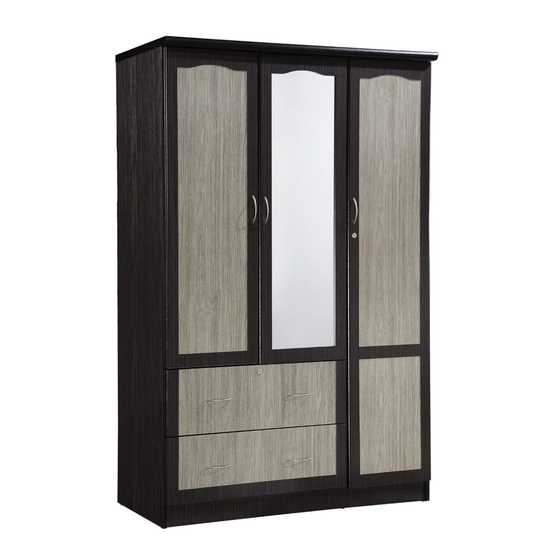

3 door wardrobe

Advertisement

Quick Links

HODEDAH
Assembly Instructions
This instruction booklet contains important safety information, please read and keep for future reference.
ITEM # HIF441-G (MOP-SP)
3 DOOR WARDROBE

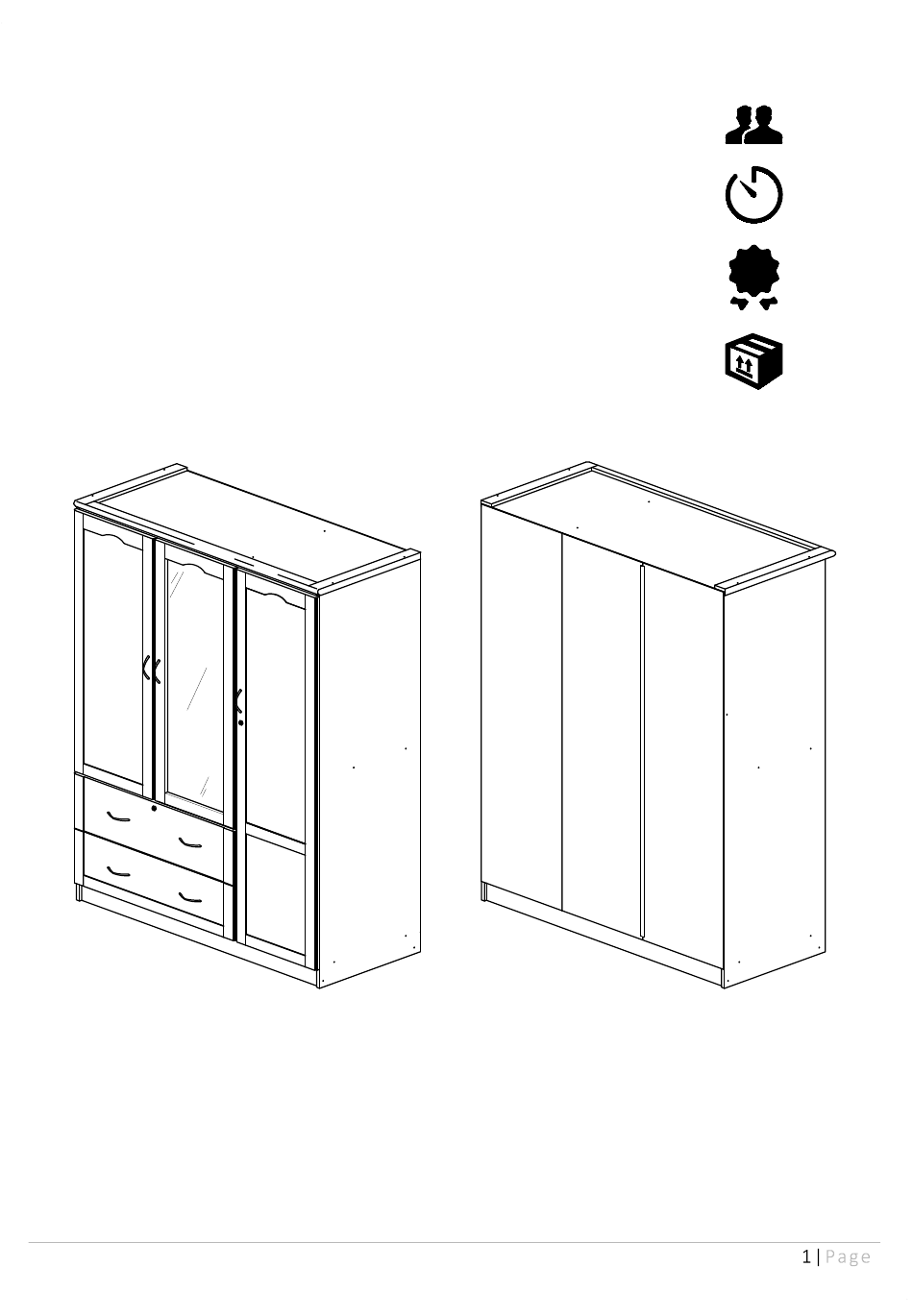

FRONT VIEW
Product Dimensions: Height 72.83" x Width 48.03" x Depth 21.65"
www.Hodedah.com
®
Weight Capacity Per Drawer 25lbs
Weight Capacity Per Shelf 25lbs
BACK VIEW
2 people
90 mins
1 YR LTD
2 Boxs

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HIF441-G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hodedah HIF441-G

  • Page 1 HODEDAH ® Assembly Instructions 2 people This instruction booklet contains important safety information, please read and keep for future reference. 90 mins ITEM # HIF441-G (MOP-SP) 3 DOOR WARDROBE 1 YR LTD 2 Boxs FRONT VIEW BACK VIEW Product Dimensions: Height 72.83" x Width 48.03" x Depth 21.65"...
  • Page 2: Warranty

    FREE of charge within ONE YEAR of purchase! WARRANTY Hodedah warrants this product to be free from defects in materials and workmanship and agrees to remedy any such defect. This warranty covers one year from the date of original purchase. This is solely limited to replacement of defective parts and no assembly for labor is included.
  • Page 3: Product Care And Maintenance

    HODEDAH ® · Never open more than one drawer at a time. · The use of tip-over restranits may reduce but not eliminate the risk of tip-over. Let's get started… Helpful hints, read before beginning assembly · Make sure you receive all boxes. If your item is packed in one box, box count will read 1 of 1, likewise if your item is packed in two boxes, box count will read 1 of 2 and second box will read 2 of 2.
  • Page 4: Hardware List

    HODEDAH ® Hardware List 8 Pcs 36 Pcs 1 Pc Shelf Support Pvc Dowel Hanging Rod 2 Pcs 1 Pc 22 Pcs Screw M6 x 40mm V-Bracket Allen Key 56 Pcs 20 Pcs 6 Sets Screw M3.5 x 14mm Screw M4 x 32mm...
  • Page 5 HODEDAH ® Accessories Drawer Slide - A 2 Sets * Fix On Side Panels Ⓐ *Fix On Side Panels A & G * Fix On Side Panels Ⓖ * Fix On Drawer Side Panels Ⓞ 2 Sets Drawer Slide - B *Fix On Side Panels O * Fix On Drawer Side Panels Ⓞ...
  • Page 6: Parts List

    HODEDAH ® Parts List Left Side Panel Kick Panels Kick Strengthening Panel 1165 x 89 x 15mm 433 x 76 x 15mm 1816 x 495 x 15mm 1 Pc 2 Pcs 1 Pc Bottom Panel Partition Panel Back Strengthening Panel...
  • Page 7 HODEDAH ® Parts List Big Door Upper Drawer Front Panel Lower Drawer Front Panel 1722 x 395 x 18mm 792 x 251 x 15mm 792 x 251 x 15mm 1 Pc 1 Pc 1 Pc Drawer End Panels Drawer Base Panels...
  • Page 8 HODEDAH ® The Breakdown www.Hodedah.com...
  • Page 9: Pre-Assembly

    HODEDAH ® Pre - Assembly Tighten V-Bracket ⑤ on panel shown by using 2 screws ⑧ . Insert the PVC dowels ③ to panel ’s non-thru holes as shown, using hammer to tap them in. Insert 8 shelf supports ② into panels G and I’s non thru holes .
  • Page 10 HODEDAH ® Pre - Assembly Insert the PVC dowels ③ to panel ’s non-thru holes as shown, using hammer to tap them in. Pvc Dowel 28 Pcs. www.Hodedah.com...
  • Page 11: Door Panel Assembly

    HODEDAH ® Door Panel Assembly * Insert 6 Hinges ⑩ and 3 hinges ⑪ into door panel 's non-thru hole as shown, then tighten screws ⑧ through hinges ⑩ and ⑪ 's thru hole. -Tighten 2 screws ⑨ from inner side of panel into the handle ⑨...
  • Page 12 HODEDAH ® Assembly Of Drawers -Place panel on each side of panel as shown. -Then, tighten screw ⑨ to panel 's lower thru holes to fix them onto panel -Next tighten screw ⑨ to panel 's upper thru holes to fix up to the panel...
  • Page 13 HODEDAH ® Assembly Of Drawers -Place panel on each side of panel as shown. -Then, tighten screw ⑨ to panel 's lower thru holes to fix them onto panel -Next tighten screw ⑨ to panel 's upper thru holes to fix up to the...
  • Page 14 HODEDAH ® Step 1 Fix Panel onto 2 Panels by pushing and slotting the dowels onto the non-thru holes at Panel Next, fix Panel and 2 Panels onto panel by pushing and slotting the dowels onto the non-thru holes at Panel Use allen key ⑥...
  • Page 15 HODEDAH ® Step 2 Fix Panel onto Panels by pushing and slotting the dowels onto the non-thru holes at Panel Fix Panel A onto Panels by pushing and slotting the panel dowels onto non-thru holes at Panel Use allen key ⑥ to tighten 10 screws ⑦ from the thru-holes of left side of panel...
  • Page 16 HODEDAH ® Step 3 Fix Panel onto Panels by pushing and slotting the dowels onto the non-thru holes at Panel Fix Panel I onto Panels by pushing and slotting the panel 's dowels onto non-thru holes at Panel Use allen key ⑥ to tighten 8 screws ⑦ from the thru-holes of left side of panel...
  • Page 17 HODEDAH ® Step 4 -Fix panel F onto panel and align properly by pushing and slotting the 4 dowels of panel onto the non thru holes of panel -Pushing and light tapping of panel to have panel , panel , panel fix tightly.
  • Page 18 HODEDAH ® Step 5 -Lift up the main unit carefully and let it stand up properly. -Place iron tube onto both panel 's V-bracket. -Put adjusting panels T onto shelf supports as shown. -Take drawers (drawers ), and slide them (the white rollers at drawer slide at both side of drawers are to go into the track of the slides at each side panel.) all the way gently, one drawer by one drawer starting from bottom...
  • Page 19 HODEDAH ® Step 6 Join the door panel 's hinges with panel 's hinges as shown. You can align the door by tightening and loosening the screws as shown. www.Hodedah.com...
  • Page 20 HODEDAH ® Step 7 Place 3 back Panels onto the back of the main unit, and join 2 panels together with H-profile by slotting one side each of panel S into the track of H-profile. Then align them properly for nailing.
  • Page 21 HODEDAH ® FITTING OF ANTI-TIP SAFETY STRAP STEP 1: · Attach the mounting bracket a to the furniture in the solid part below the top panel a few inches away from the side of the unit. · Screw b through the smallest hole of a .
  • Page 22: Job Complete

    HODEDAH ® Job Complete Enjoy & Thank you for purchasing from Hodedah! In the interest of our environment please dispose of all packaging thoughtfully. www.Hodedah.com...
