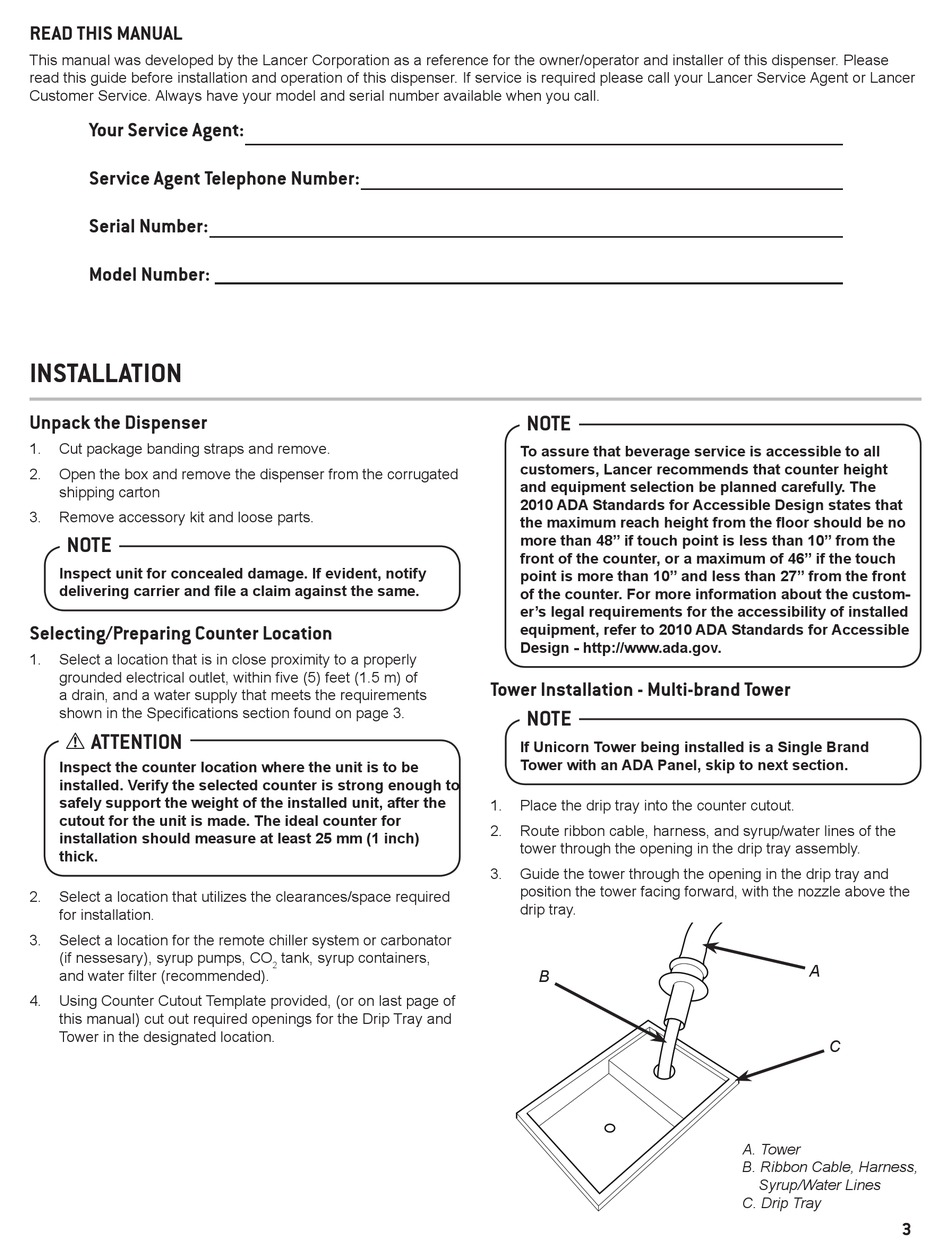

READ THIS MANUAL
This manual was developed by the Lancer Corporation as a reference for the owner/operator and installer of this dispenser. Please
read this guide before installation and operation of this dispenser. If service is required please call your Lancer Service Agent or Lancer
Customer Service. Always have your model and serial number available when you call.
Your Service Agent:
Service Agent Telephone Number:
Serial Number:
Model Number:

INSTALLATION

Unpack the Dispenser
1. Cut package banding straps and remove.
2. Open the box and remove the dispenser from the corrugated
shipping carton
3. Remove accessory kit and loose parts.
NOTE
Inspect unit for concealed damage. If evident, notify
delivering carrier and file a claim against the same.

Selecting/Preparing Counter Location

1. Select a location that is in close proximity to a properly
grounded electrical outlet, within five (5) feet (1.5 m) of
a drain, and a water supply that meets the requirements
shown in the Specifications section found on page 3.
! ATTENTION
Inspect the counter location where the unit is to be
installed. Verify the selected counter is strong enough to
safely support the weight of the installed unit, after the
cutout for the unit is made. The ideal counter for
installation should measure at least 25 mm (1 inch)
thick.
2. Select a location that utilizes the clearances/space required
for installation.
3. Select a location for the remote chiller system or carbonator
(if nessesary), syrup pumps, CO
and water filter (recommended).
4. Using Counter Cutout Template provided, (or on last page of
this manual) cut out required openings for the Drip Tray and
Tower in the designated location.
tank, syrup containers,
2
NOTE
To assure that beverage service is accessible to all
customers, Lancer recommends that counter height
and equipment selection be planned carefully. The
2010 ADA Standards for Accessible Design states that
the maximum reach height from the floor should be no
more than 48" if touch point is less than 10" from the
front of the counter, or a maximum of 46" if the touch
point is more than 10" and less than 27" from the front
of the counter. For more information about the custom-
er's legal requirements for the accessibility of installed
equipment, refer to 2010 ADA Standards for Accessible
Design - http://www.ada.gov.
Tower Installation - Multi-brand Tower
NOTE
If Unicorn Tower being installed is a Single Brand
Tower with an ADA Panel, skip to next section.
1. Place the drip tray into the counter cutout.
2. Route ribbon cable, harness, and syrup/water lines of the
tower through the opening in the drip tray assembly.
3. Guide the tower through the opening in the drip tray and
position the tower facing forward, with the nozzle above the
drip tray.
B
A
C
A. Tower
B. Ribbon Cable, Harness,
Syrup/Water Lines
C. Drip Tray
3
