6.4 Huawei FCP trigger

Select Huawei FCP, press and hold the K2 key to enter the Huawei FCP trigger page (as shown
in Figure 12). Trigger Failure will display Trigger Failure!
Instructions
(1) K1 key
Short press: switch FCP trigger voltage;
Long press:Exit the current page;
(2) K2 key
Short press: switch FCP trigger voltage.

6.5 Huawei SCP trigger

Select Huawei SCP, press and hold the K2 key to enter the Huawei SCP trigger page (as shown
in Figure 13). Trigger Failure will display
Instructions
(1) K1 key
Short press: reduce SCP trigger voltage;
Long press: Exit the current page; (Exit SCP trigger status at the same time)
(2) K2 key
Short press: Increase SCP trigger voltage.

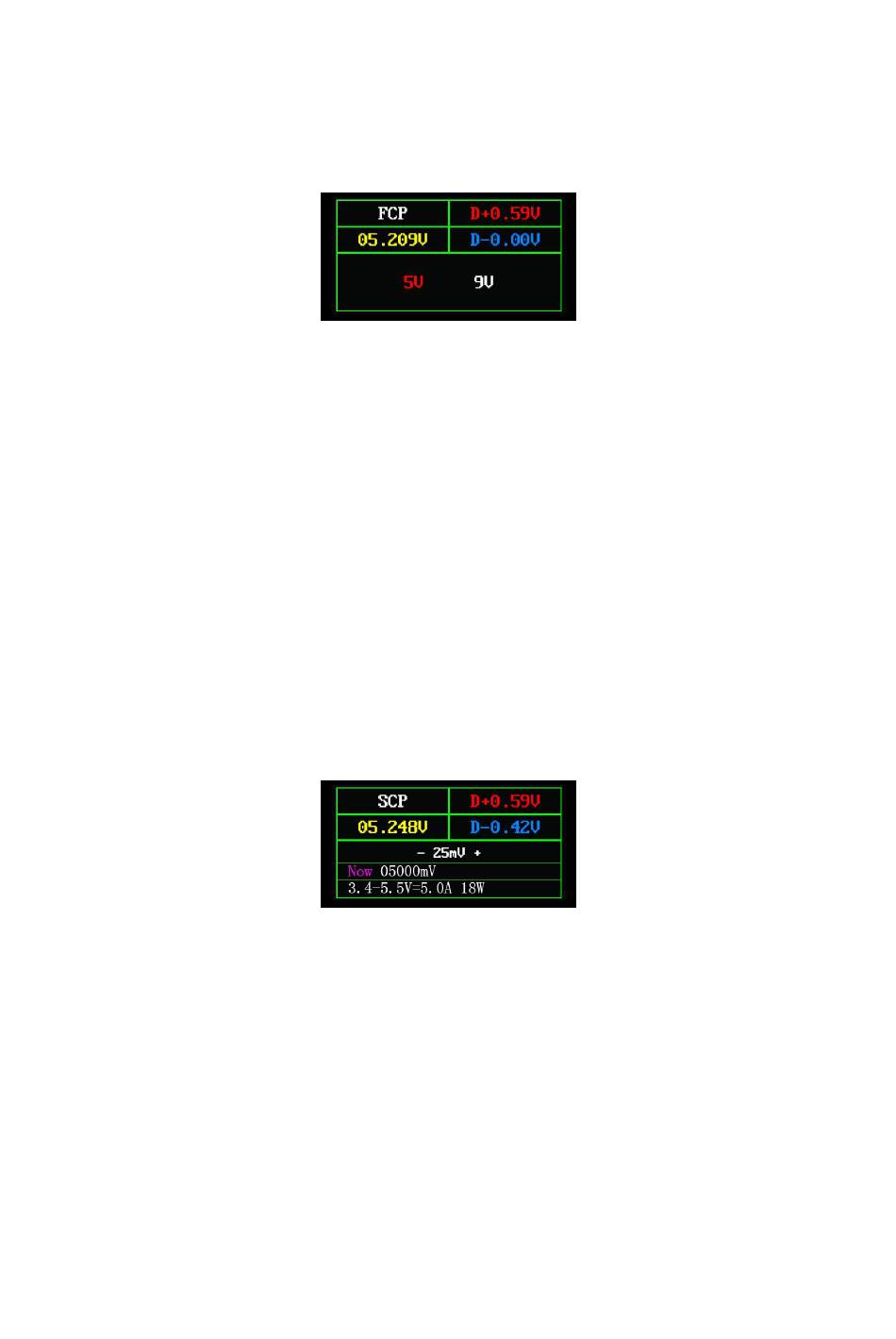

Figure 12
Trigger Failure!
Figure 13
