Chore-Tronics Model 16 & 8 Control

Parts Listing

MT1554A 9/9/98
1
2
3

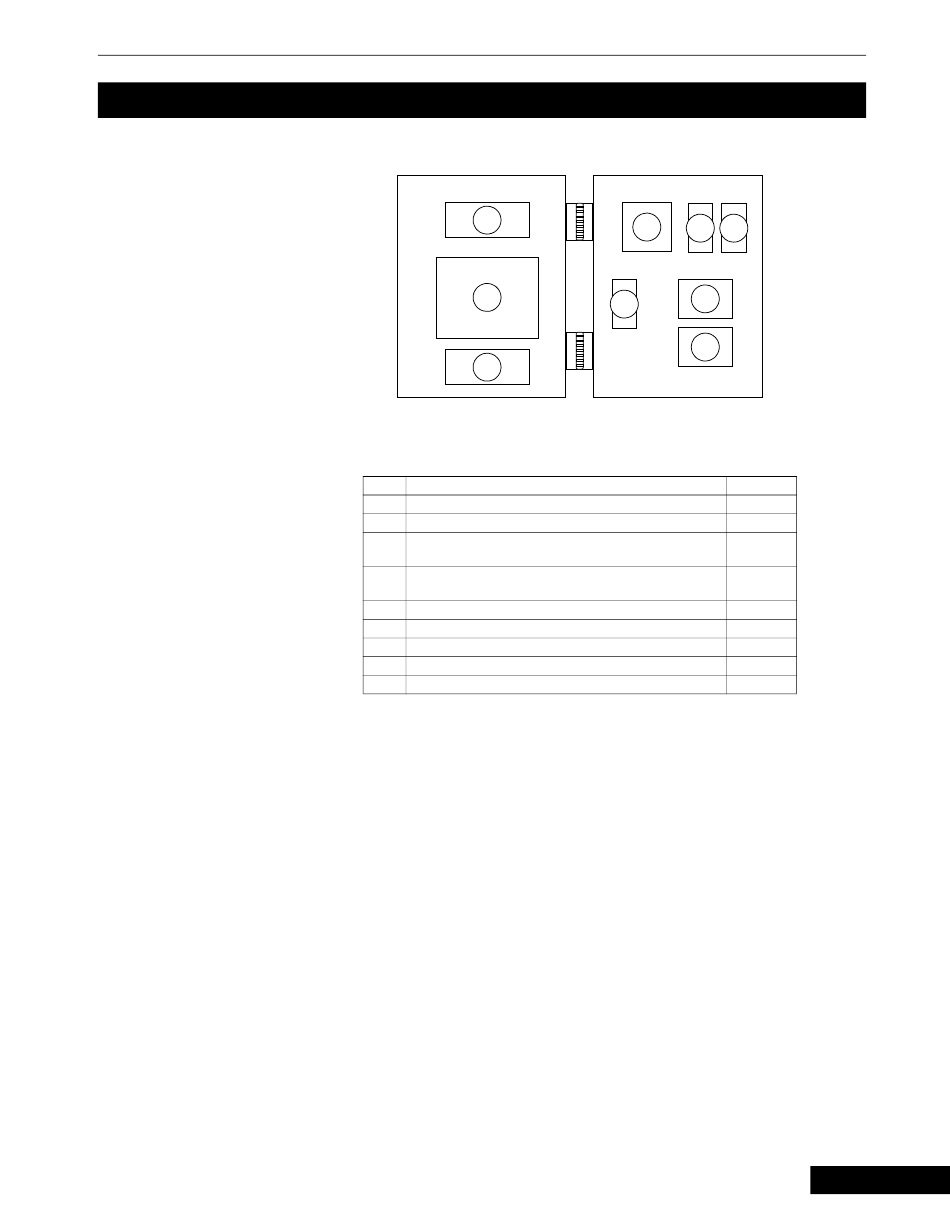

Opened Control Box Lid
Item Description
1 8x40 Display
2 KDCM.1 Keyboard Display Module
3 MSCM.16-1 Switch circuit Board (Model 16)
MSCM.8-2 Switch Circuit Board (Model 8)
4 IOCM.1-3 Control Module (Model 16)
IOCM.1-2 Control Module (Model 8)
5 RM.8 Relay Circuit Board (8 relays)
6 *RM.8 Relay Circuit Board (Model 16)
7 Static Pressure Sensor (optional)
8 Variable Speed #1 (optional)
9 Variable Speed #2 (optional)
Parts Listing
4
8 9
5
7
*6
MT1554-03 5/98
Control Box Base
Part No.
41317
41315
41309
41308
41321
41311
41306
41306
41320
40729
40729
