Model ATF End Control with Sensor Plus
1. Attach one Swinging Pan Support (item 4) and three regular Pan Supports (item 2) to Pan Shield (item 3) using
rivets supplied. Always attach the Swinging Pan Support (item 4) at the same location on all Pan Shields (item
3). It will be necessary to support the Pan Shield (item 3) while installing the rivets. Use a hammer to drive
rivets as shown in Figure 1.
2
1
2. Install the Sensor Switch Assembly (item 1) to the Drop Tube (item 3) using the included #8 Hex Washer Head
Screw (item 2).
1
3. Install the Drop Tube Assembly (item 2) to the Pan Shield Assembly (item 1) by routing the Drop Tube
Assembly (item 2) up through the center of Pan Shield Assembly (item 1). Make sure the cord from the Sensor
Switch Assembly passes through the hole in the side of the Pan Shield Assembly (item 1).
December 2000
Model ATF™ End Control with Sensor Plus™
Model ATF End Control Update Kit
3
1630-11 11/99

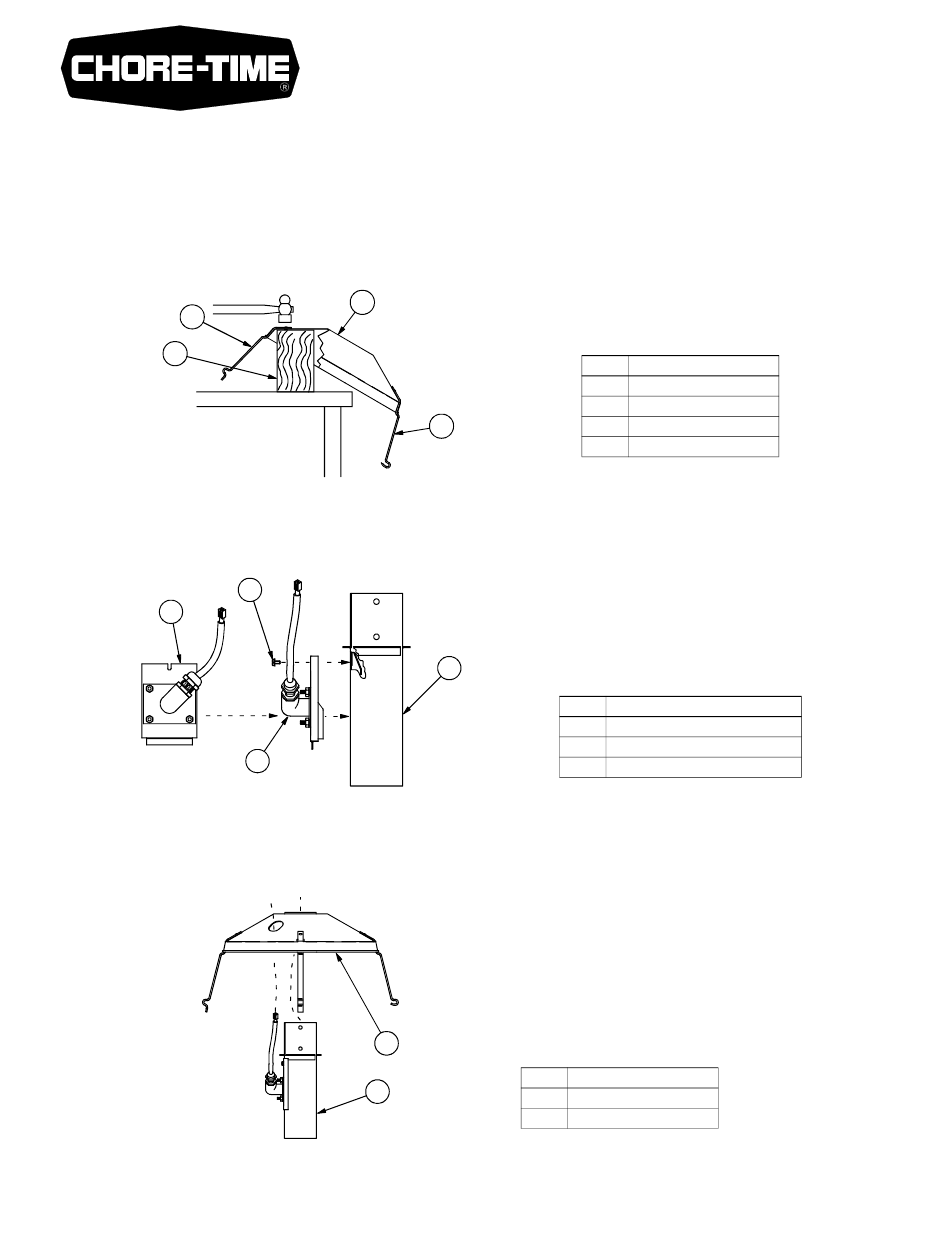

Figure 1. Assembling the Pan Supports to the Pan Shield
2
1
1630-2 11/99
Figure 2. Installing the Sensor Switch Assembly to the Drop Tube
1
2
1630-3 11/99
Figure 3. Assembling the Drop Tube to the Pan Shield Assembly
Part Number 42343
and
Part Number 43711
Item
1
2
4
3
4
3
Item
Description
1
Sensor Switch Assembly
2
#8 Hex Washer Head Screw
3
Drop Tube
Item
Description
1
Pan Shield Assembly
2
Drop Tube Assembly
Description
Wood Block
Pan Support
Pan Shield
Swinging Pan Support
MF1630B
